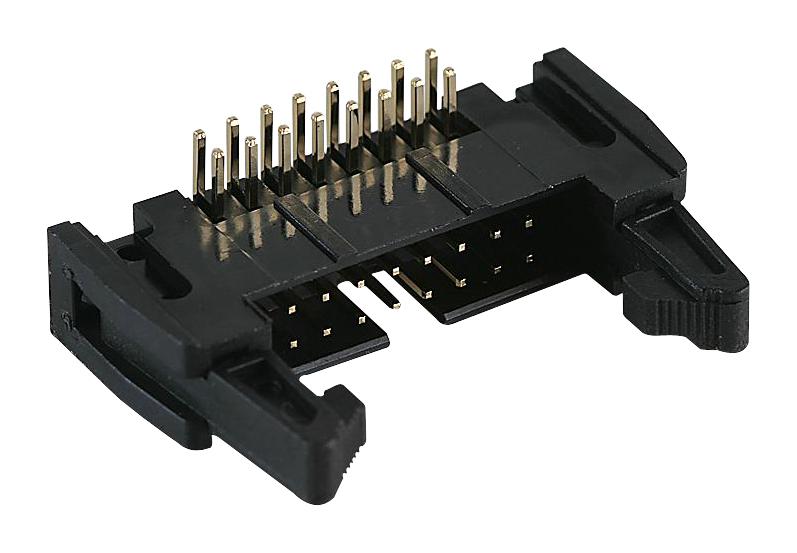

3M N34285302RB Four-Wall Header
This high-performance four-wall header offers versatile mounting options with straight and right angle configurations, featuring optional ejector latches and polarizing posts for secure connections. Made from glass-filled polyester insulators, it withstands high temperatures up to 260°C for reflow soldering, ensuring reliability in demanding environments. It supports multiple contact sizes, plating options, and optional polarization systems, making it suitable for military-grade and commercial electronics. Its durable construction, compliance with RoHS standards, and variety of mounting hardware ensure flexible, dependable interconnect solutions for sophisticated electronic assemblies.
3M N34285302RB Four-Wall Header Specifications:
- Insulator Material: Glass Filled Polyester (PBT), High Temp Option: PCT
- Flammability: UL 94V-0
- Color: Gray (PBT), Black (PCT)
- Contact Material: Copper Alloy
- Plating: 100 μ” Nickel - Overall, 30 μ” Gold
- Temperature Rating: -55°C to +105°C, High Temp Insulator: 260°C
- Current Rating: 5.00A (Contact Powered), 3.00A (6 Contacts), 1.75A (All contacts)
- Insulation Resistance: >1×10° Ω at 500 V
- Withstanding Voltage: 1000 V at Sea Level
- Process Rating: Reflow Soldering at 260°C for PCT, 191°C for PBT
- Mounting Holes: Standard size with optional polarizing keys, suitable for #4-24 screw and #2-56 bolt
- RoHS Compliance: Yes
- Dimensions: Length varies with series, typical height around 1.065 to 3.965 inches, width approximately 0.665 to 3.565 inches
Buy the Buy 3M Four-Wall Header Part Number N34285302RB Online
Purchase the 3M Four-Wall Header N34285302RB online today and enhance your electronic assembly with a durable, versatile connector capable of high-temperature operation. With optional ejector latches, polarizing posts, and compliance with RoHS standards, this header ensures robust and dependable connections for military and commercial applications. Its high-temperature insulator supports reflow soldering up to 260°C, making it ideal for demanding environments. Trust 3M’s proven quality for your critical electronic projects, and enjoy seamless online ordering with fast delivery and technical support.
Order your 3M Four-Wall Header N34285302RB today and secure reliable, high-temperature interconnect solutions for demanding electronic assemblies.
Frequently Asked Questions
Where can I buy 3M N34285302RB?
You can click on the BUY or RFQ button to purchase N34285302RB from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part N34285302RB?
You can download the N34285302RB datasheet or visit the 3M website for support.
Who is the manufacturer of N34285302RB?
3M
