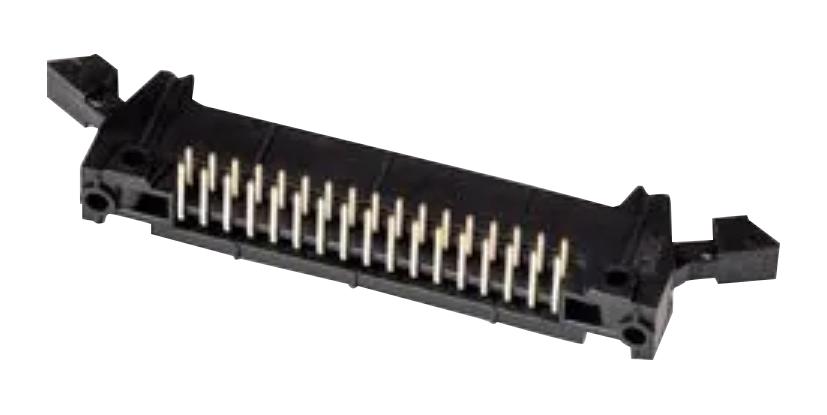

3M N34315202RB Electronic Connector
The 3M Pak 100 4-Wall Header is a versatile electronic connector designed for high reliability in circuit applications. Featuring a 100” x .100” latch/ejector with straight and right-angle configurations, it supports RoHS compliance and high-temperature insulator materials suitable for lead-free soldering and reflow techniques. Made from glass-filled polyester with copper alloy contacts, it provides excellent electrical performance, with a current rating of 1A, insulation resistance exceeding 1 x 10^9 Ω at 500 Vdc, and withstand voltage of 1000 Vrms at sea level. Its robust construction ensures durability across a temperature range of -55°C to +105°C, making it suitable for various demanding environments.
3M N34315202RB Electronic Connector Specifications:
- Insulator Material: Glass Filled Polyester (PCT) UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating Underlayer: 30 nm Nickel
- Contact Finish: 200 μ
- Current Rating: 1A
- Insulation Resistance: >1 x 10^9 Ω at 500 Vdc
- Withstanding Voltage: 1000 Vrms at sea level
- Temperature Rating: -55°C to +105°C
- Process Rating: Max 260°C for single pass, reflow compliant
- Moisture Sensitivity Level: Level 1
- Certifications: RoHS compliant, UL listed E68080
Buy the Buy 3M Electronic Connector Part Number N34315202RB Online
Purchase the reliable 3M Series3000 Header with latch/ejector seamlessly online today. Designed for high-temperature, RoHS-compliant applications, it supports lead-free reflow soldering, with straight and right-angle configurations, robust copper contacts, and polymer insulators. Ideal for demanding electronics environments, it offers safe, durable, and efficient performance with a current rating of 1A, insulation resistance above 1GΩ, and withstand voltage of 1000 Vrms. Perfect for both professional and industrial projects needing high-quality interconnects, ensuring optimal assembly and long-term reliability.
Order your 3M Series3000 Header with latch/ejector today and enhance your electronic assemblies with dependable, RoHS-compliant quality for diverse applications.
Frequently Asked Questions
Where can I buy 3M N34315202RB?
You can click on the BUY or RFQ button to purchase N34315202RB from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part N34315202RB?
You can download the N34315202RB datasheet or visit the 3M website for support.
Who is the manufacturer of N34315202RB?
3M
