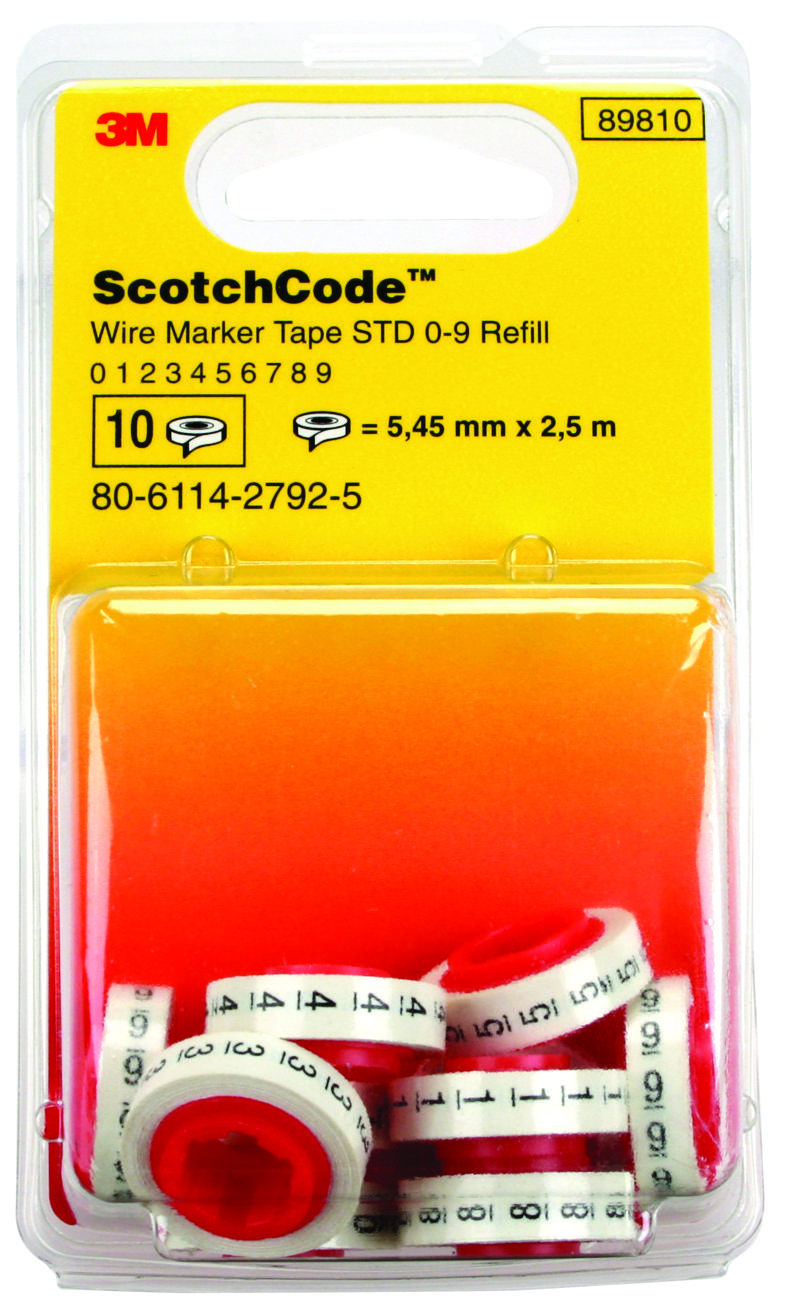

3M SDR09 Wire Marking Tape Roll
3M ScotchCode SDR wire marking tape is a versatile solution for identifying and organizing wires and cables in various industrial and commercial applications. This polyester film tape features a pressure-sensitive acrylic adhesive, ensuring reliable adhesion to a range of surfaces. It's designed for use with 3M ScotchCode STD tape dispensers, allowing for convenient and precise dispensing. The tape is suitable for marking wires, terminal blocks, and panels, providing clear and lasting identification. Available in a range of colors, SDR tape simplifies wire management and enhances operational efficiency.
3M SDR09 Wire Marking Tape Roll Specifications:
- Material: Polyester film with acrylic pressure sensitive adhesive
- Application Temperature Range: 32°F to 120°F (0°C to 49°C)
- Operating Temperature Range: –40°F to 250°F (–40°C to 121°C)
- Storage Temperature: <br>80°F (26°C) (Relative Humidity) 25–50%
- Tape Roll Width: 0.215 inches (5,46 mm)
- Tape Roll Length: 96 inches (2,43 m)
- Number of Characters: <br>6 per inch (6 per 2,54 cm)
- Tape Thickness: <br>3 mils (0,08mm)
- Adhesion to Steel: 25 oz./inch width (273 Newtons/Meters) (ASTM D–1000)
- Adhesion to Backing: 10 oz./inch width (109 Newtons/Meters) (ASTM D–1000)
- Characters per roll: 0–9 consecutive
- Tape Core Diameter: .38 inch (9,65mm)
Buy the SDR-0-9 3M Wire Marking Tape Roll | myMectronic
Purchase the 3M SDR-0-9 Wire Marking Tape Roll securely and efficiently for all your labeling needs.
Buy Now
Frequently Asked Questions
Where can I buy 3M SDR09?
You can click on the BUY or RFQ button to purchase SDR09 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part SDR09?
You can download the SDR09 datasheet or visit the 3M website for support.
Who is the manufacturer of SDR09?
3M
