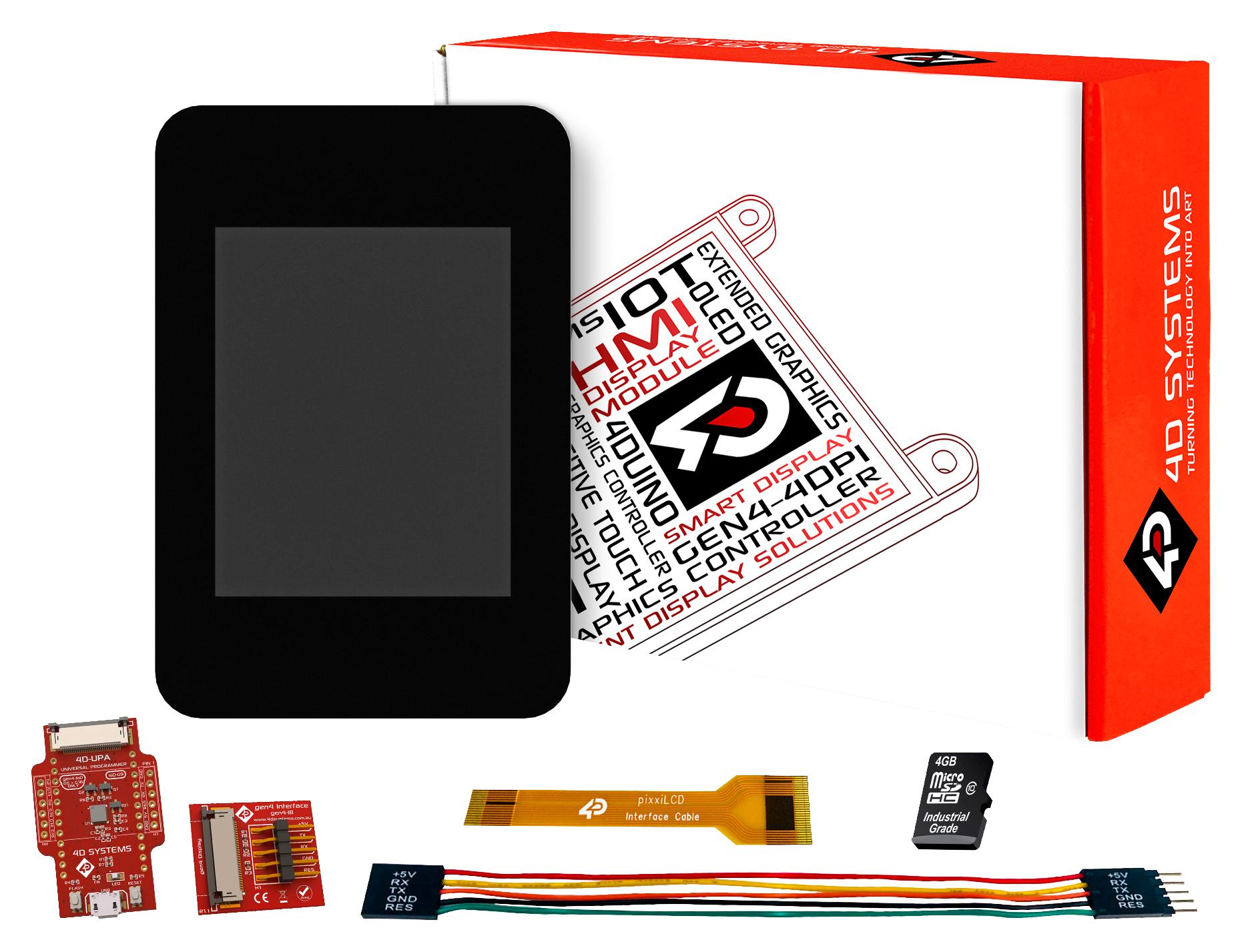

4D SYSTEMS SKPIXXILCD20P2CTPCLB TFT LCD Display
The pixxiLCD-20P2 is a 2.0-inch TFT transmissive LCD display with a resolution of 176x220 pixels. It features white LED backlighting, a contrast ratio of 300:1, and wide viewing angles of 45° from the center. The display includes a white LED backlight, pixel pitch of 0.1803mm square pixels, and operates at a supply voltage of 5V with a typical brightness of 500 cd/m2. It is suitable for embedded graphics applications in industrial, automation, and control systems, providing clear visuals and reliable performance.
4D SYSTEMS SKPIXXILCD20P2CTPCLB TFT LCD Display Specifications:
- Display Type: TFT Transmissive LCD
- Display Size: 2.0 inches diagonal
- Resolution: 176x220 pixels
- Viewing Angles: 45 degrees from center (top/bottom/left/right)
- Backlighting: White LED with 1x3 parallel LEDs
- Pixel Pitch: 0.1803mm square
- Pixel Density: 141 DPI/PPI
- Brightness: 500 cd/m2 (typical) for pixxiLCD-20P2
- Display Contrast Ratio: 300:1
- Electrical: 5V supply, non-tolerant 3.3V interface
- Operating Temp: -20°C to +70°C
- Storage Temp: -30°C to +80°C
- Material: TFT LCD with glass cover, optional cover lens bezel for capacitive touch
- Hardware features include serial interface, micro SD/Flash support, and mechanical mounting options
- Reliability: Display endurance of 30,000 hours at 50% brightness
- Max current: 100mA (p) for non-touch, 110mA (p) for capacitive touch variant
Buy the 4D Systems SKPIXXILCD20P2 – Reliable TFT Display for Industrial Applications
Enhance your industrial or automation project with the 2-inch TFT LCD display from 4D Systems. Featuring 176x220 pixels resolution, white LED backlighting, and wide viewing angles, this reliable display offers superior visuals and stability in demanding environments. Easy to integrate with serial interfaces, micro SD support, and robust construction, it’s ideal for control panels, embedded systems, and instrumentation. Purchase online today to benefit from fast delivery, excellent support, and unlock the full potential of your graphical applications.
Buy 4D Systems SKPIXXILCD20P2 now and experience unmatched reliability and performance in embedded graphical solutions.
Frequently Asked Questions
Where can I buy 4D SYSTEMS SKPIXXILCD20P2CTPCLB?
You can click on the BUY or RFQ button to purchase SKPIXXILCD20P2CTPCLB from an authorized 4D SYSTEMS distributor.
How do I troubleshoot issues or seek technical support for part SKPIXXILCD20P2CTPCLB?
You can download the SKPIXXILCD20P2CTPCLB datasheet or visit the 4D SYSTEMS website for support.
Who is the manufacturer of SKPIXXILCD20P2CTPCLB?
4D SYSTEMS
