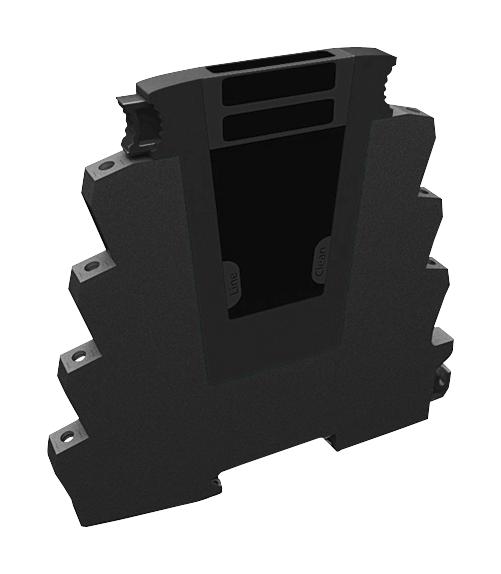

ABB---SOULE OVRSL06 Surge Protective Device
The OVR SLO6 Surge Protective Device is designed for signal line protection, offering reliable surge suppression for 2-wire systems up to 750mA current. Its slim profile measures 106.5 mm in width, 104.6 mm in height, and 7 mm in depth, making it suitable for installation in compact spaces. Rated for operation from -40°C to +80°C, it features screw clamp connections, a maximum discharge current of 10 kA, and a voltage protection level of 16V. Compliant with IEC 61643-21 standards, it safeguards systems against lightning-induced overvoltages and switching surges efficiently.
ABB---SOULE OVRSL06 Surge Protective Device Specifications:
- Dimensions: Width 106.5 mm, Height 104.6 mm, Depth 7 mm
- Weight: 0.08 kg
- Operation Temperature: -40°C to +80°C
- Rated Current: 750 mA
- Maximum Discharge Current: 10 kA (8/20 μs)
- Voltage Protection Level: 16V
- Suitable for 2-wire signal lines up to 750mA
- Connection Type: Screw clamp
- Rated Frequency: 45 MHz
- Standards: IEC 61643-21
- Wire Stripping Length: 9.5 mm
Buy the ABB Series Surge Protective Device: OVR SLO6
Enhance the safety and reliability of your electrical systems with the ABB Surge Protective Device OVR SLO6. Designed for 2-wire signal lines, it offers robust surge suppression up to 10 kA discharge current with a voltage protection level of 16V. Its slim profile makes installation easy in tight spaces, and it meets IEC 61643-21 standards for lightning and switching surge protection. Protect your equipment against transient overvoltages and electrical surges—order online today for fast, reliable delivery and optimal circuit safety.
Order your ABB Series Surge Protective Device OVR SLO6 today and ensure your electrical systems are protected against transient overvoltages efficiently.
