ABB - THOMAS & BETTS LTC050 Datasheet & Stock

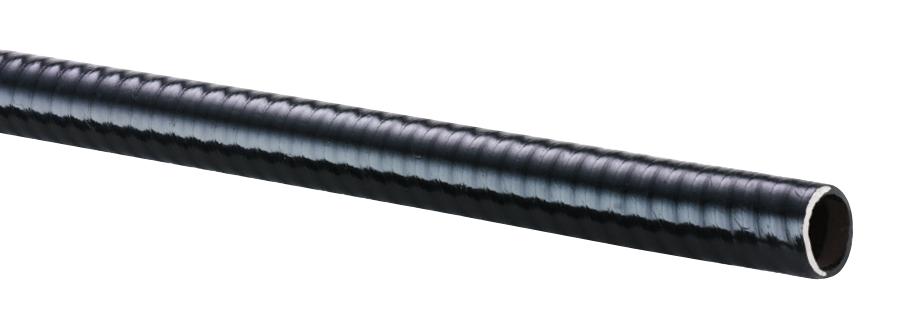

The Xtra Flex® LTC050 from Thomas & Betts is a 1/2" Liquidtight Nonmetallic Type B Industrial-Grade Conduit featuring a smooth inner diameter that allows easy wire pulling. Black smooth outer jacket approved for outdoor use and is sunlight- and oil-resistant. This lightweight and liquidtight PVC conduit installs fast and easy, even in tight or cramped spaces. Suitable for use in hazardous locations where general purpose equipment is specially permitted by the NEC; Class I Div. 2; Class II, Div. 1&2; Class III, Div. 1&2.




Black liquidtight flexible nonmetallic PVC conduit Type B

Inner diameter 0.622" - 0.642"; outer diameter 0.802" - 0.84"

Fast installation, even in tight or cramped spaces

Marked at 1-ft. intervals for fast, easy measuring and cutting

Rated at 600V

Approved for direct-burial applications

Temperature range -18°C to 105°C

Flammability rating UL 1660

UL listed (File no. E95745), CSA certified (File no. LL80349)

100 ft (30.5 m)





Applications


Maintenance & Repair,

Motor Drive & Control,

Industrial,

Sensing & Instrumentation,

Automation & Process Control
