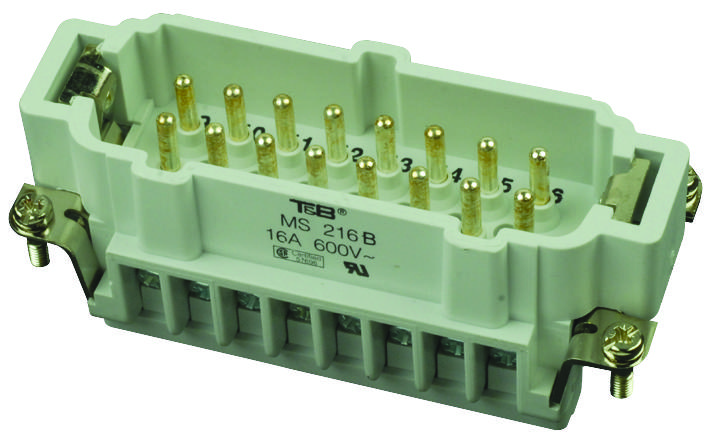

ABB - THOMAS & BETTS MS216B Screw Terminal Insert
The MS216B is a 16-contact male screw terminal insert with ground connection, made of glass-filled thermoplastic. It supports wire sizes from 20 to 14 AWG and is compatible with the Pos-E-Kon B series hood and base. This terminal insert features a UL94V-0 flammability rating, a rated voltage of 600VAC, a maximum working current of 16A, and a test voltage of 3kV. It has an IP65 protection rating for locked positions according to DIN VDE 0470 and IEC 529 standards, and it operates within an insert temperature range of -40 to 125°C. Suitable for industrial applications.
ABB - THOMAS & BETTS MS216B Screw Terminal Insert Specifications:
- Material: Glass-filled thermoplastic
- Number of Contacts: 16 + Ground
- Wire Range: 20-14 AWG (0.5-6 mm?)
- Rated Voltage: 600 VAC
- Maximum Current: 16 A
- Test Voltage: 3 kV
- Flammability: UL 94V-0
- Protection Rating: IP65 (locked position)
- Operating Temperature Range: -40°C to 125°C
- Compatibility: Pos-E-Kon B series hood and base
- Color: Not specified
- Standards: DIN VDE 0470, IEC 529
Buy the Buy Thomas & Betts Screw Terminal Insert MS216B Online
Order the Thomas & Betts MS216B screw terminal insert online today for efficient industrial wiring solutions. Designed for durability, supports 20-14 AWG wires, rated at 600VAC and 16A, with IP65 protection to withstand harsh environments. Its UL94V-0 flammability rating ensures safety, and operating temperature ranges from -40°C to 125°C. Reliable and easy to install, this insert is ideal for professionals seeking quality components for complex wiring applications. Get yours now to ensure high performance and safety in your electrical installations.
Buy Thomas & Betts MS216B now and experience unmatched reliability and industrial wiring performance.
Frequently Asked Questions
Where can I buy ABB - THOMAS & BETTS MS216B?
You can click on the BUY or RFQ button to purchase MS216B from an authorized ABB - THOMAS & BETTS distributor.
How do I troubleshoot issues or seek technical support for part MS216B?
You can download the MS216B datasheet or visit the ABB - THOMAS & BETTS website for support.
Who is the manufacturer of MS216B?
ABB - THOMAS & BETTS
