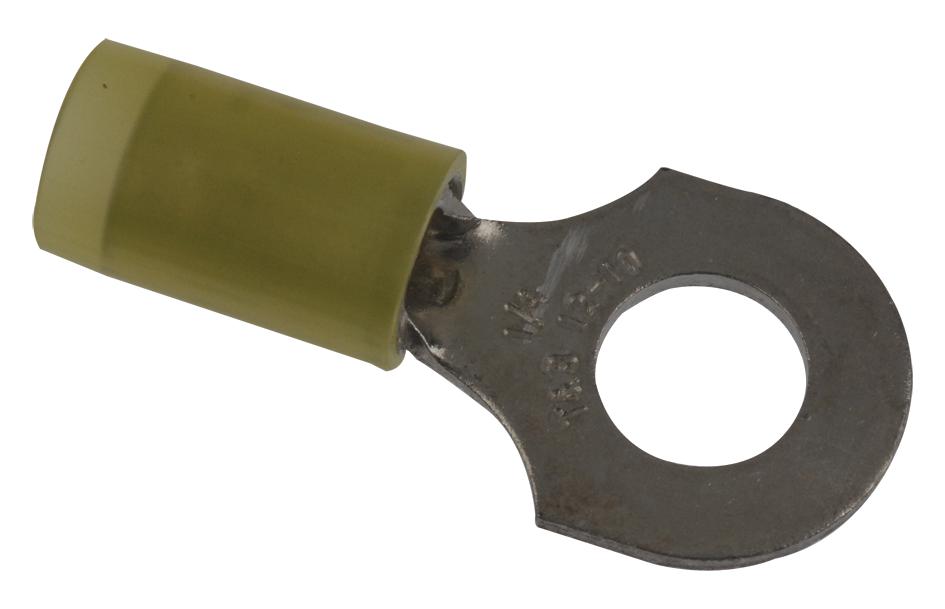

ABB - THOMAS & BETTS RC1014 Copper Ring Terminal
The RC10-14 is a copper wire ring terminal from the Sta-Kon RC series, featuring an electro-tin plated finish. It is rated for 600V and suitable for insulated connections. Designed for wire sizes ranging from 12 to 10 AWG with a 1/4-inch stud hole, it includes an inner grip sleeve that extends the flex radius of the conductor and prevents conductor creep. The terminal has a UL94V-2 flammability rating, a selectively annealed long barrel design, and a temperature rating of 105°C. Suitable for industrial applications.
ABB - THOMAS & BETTS RC1014 Copper Ring Terminal Specifications:
- Material: Copper (.040 inch thick)
- Finish: Electro-Fin plate (electro-tin plated)
- Wire Range: 12-10 AWG
- Strip Length: 5/16 inch +
- Stud Hole Size: 1/4 inch
- Rated Voltage: 600V
- Flammability: UL94V-2
- Temperature Rating: 105°C
- Design: Long barrel with inner grip sleeve to prevent conductor creep
- Certifications: UL Listed
- Suitable for insulated connections in industrial applications
- Operating Temperature: -55°C to +105°C
- Dimensions are approximate, reference only
Buy the Sta-Kon RC1014 – Reliable Copper Ring Terminal for Industrial Applications
Order the Sta-Kon RC1014 copper ring terminal online today and experience top-tier reliability in your electrical connections. This UL-listed terminal supports wire sizes from 12 to 10 AWG, features an electro-tin plated finish for corrosion resistance, and is rated for 600V. Its long barrel design with an inner grip sleeve ensures a strong, creep-free connection, suitable for industrial environments. Easy to install using recommended tools like WT2000, WT145C, and others, this terminal guarantees durability, safety, and excellent electrical performance for all your wire termination needs.
Buy Sta-Kon RC1014 now and enjoy reliable, high-quality copper connectivity for your industrial wiring needs.
Frequently Asked Questions
Where can I buy ABB - THOMAS & BETTS RC1014?
You can click on the BUY or RFQ button to purchase RC1014 from an authorized ABB - THOMAS & BETTS distributor.
How do I troubleshoot issues or seek technical support for part RC1014?
You can download the RC1014 datasheet or visit the ABB - THOMAS & BETTS website for support.
Who is the manufacturer of RC1014?
ABB - THOMAS & BETTS
