ABB - THOMAS & BETTS TY527M Datasheet & Stock

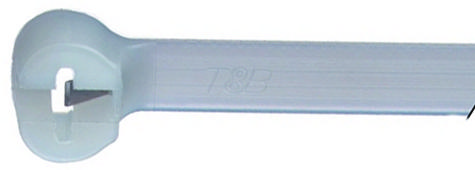

The TY527M is a natural color self-locking Cable Tie made of nylon 6.6 (polyamide 6.6). This low profile head tie is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. Because there are no notches, Ty-Rap tie provides an infinite number of locking positions while fastening the tie at the precise bundle diameter needed. The no-slip tail provides easy grip during tensioning. Ty-Rap tie features an unique friction surface designed to reduce slippage during installation. Smooth, notch less body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Rounded edges protect insulation, preventing sharp edges from damaging cables. Supports temperatures up to 85 degrees Celsius.




Tensile strength rating of 530 Newton

UL94V-2 Flammability rating

-40 to 185°F Temperature range





Applications


Industrial
