ABB 1SVR405655R1000 Pluggable Module Varistor LED

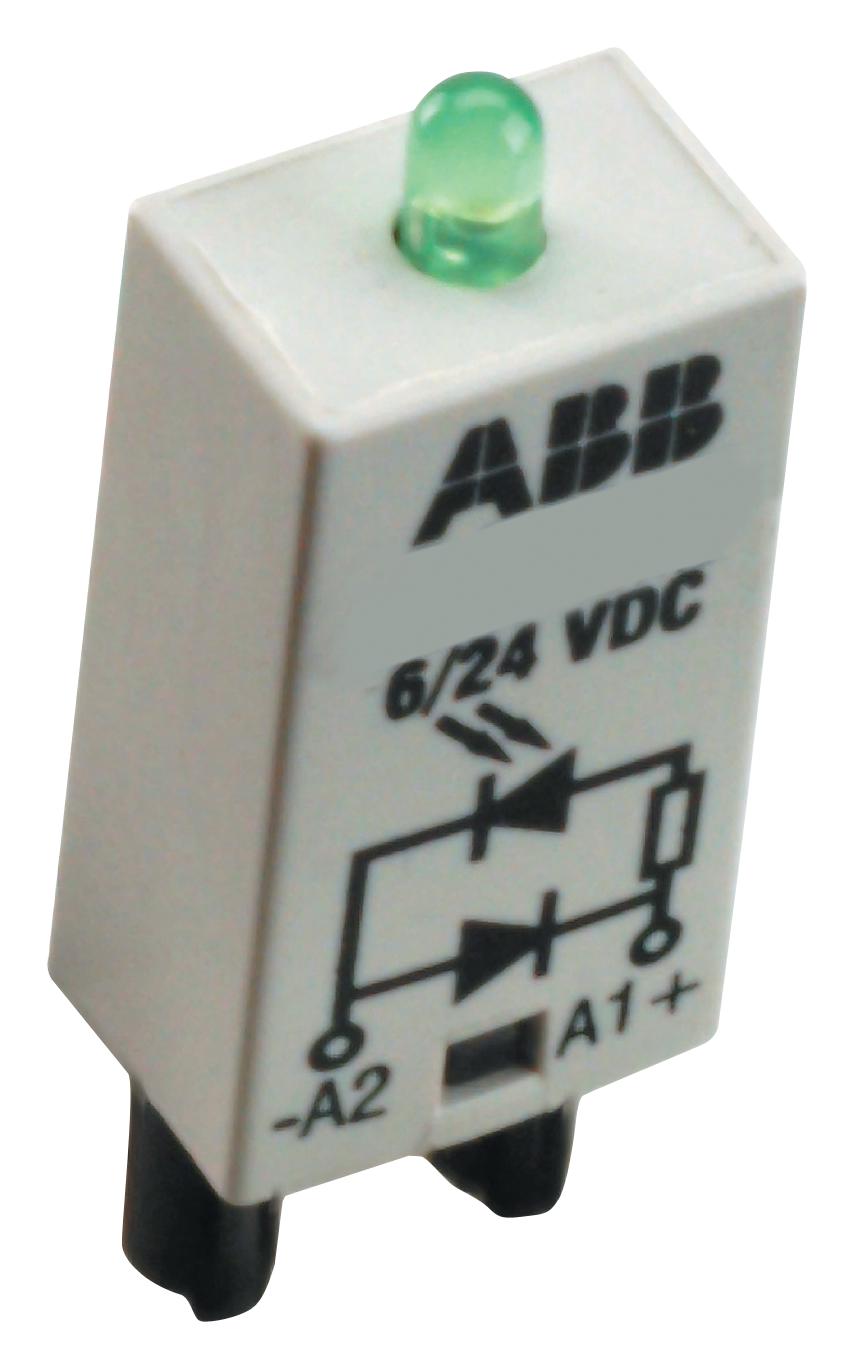

The ABB CR-P/M 62CV plug-in module is a pluggable function module for sockets of the CR-P and CR-M range. This module provides overvoltage protection and a green LED indication. It serves as an accessory for interface relays, offering a compact solution for overvoltage protection and visual status indication in control circuits. The module is suitable for PCB and miniature relay sockets, contributing to enhanced system reliability and safety.
ABB 1SVR405655R1000 Pluggable Module Varistor LED Specifications:
- Extended Product Type: CR-P/M 62CV
- Product ID: 1SVR405655R1000
- EAN: 4013614528866
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Product Net Width: 13 mm
- Product Net Height: 24 mm
- Product Net Depth / Length: 9 mm
- Product Net Weight: 0.003 kg
- Function: Accessory for interface relays CR-M
- Sub-Function: Pluggable function module for pcb and miniature relay sockets
- Sub-Function 2: Overvoltage protection
- Output: none
- Output Signal: none
- Rated Control Supply Voltage (Us): 6 ... 24 V AC/DC
- RoHS Status: Following EU Directive 2011/65/EU
- CSA Certificate: CSA_262671-2785566
- cURus Certificate: cURus508_E244328
- Declaration of Conformity - CE: 1SVD982020-0001
- EAC Certificate: EAC_RU_C-PL.ME77.B.01873
- Environmental Information: 1SAA981009-2401
- Package Level 1 Width: 130 mm
- Package Level 1 Height: 180 mm
- Package Level 1 Depth / Length: 9 mm
- Package Level 1 Gross Weight: 0.032 kg
- Package Level 1 EAN: 4013614373930
- Object Classification Code: K
- E-nummer: 4005391
- ETIM 4: EC002586 - Accessories for switching relay
- ETIM 5: EC002586 - Accessories for switching relay
- ETIM 6: EC002586 - Accessories for switching relay
- ETIM 7: EC002586 - Accessories for switching relay
- eClass: 7.0 27379208
- UNSPSC: 43172000
Buy the 1SVR405655R1000 ABB Pluggable Module Varistor LED | myMectronic
Purchase the ABB CR-P/M 62CV module securely and efficiently for your industrial automation needs.
