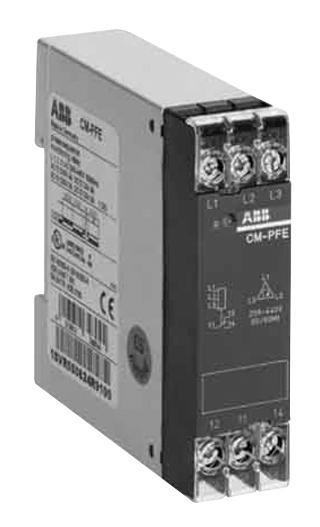

ABB 1SVR550824R9100 Phase Sequence Monitoring Relay
The ABB CM-PFE phase sequence monitoring relay is a critical component for ensuring the safe and efficient operation of three-phase systems. This relay monitors the phase sequence and detects phase failures, preventing damage to connected equipment. It is suitable for a wide range of industrial applications, including motor protection, generator control, and power distribution systems. The relay's robust design and reliable performance make it an ideal choice for demanding environments.
ABB 1SVR550824R9100 Phase Sequence Monitoring Relay Specifications:
- Extended Product Type: CM-PFE
- Product ID: 1SVR550824R9100
- EAN: 4013614348044
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Package Level 1 Width: 24 mm
- Package Level 1 Height: 83 mm
- Package Level 1 Length: 25 mm
- Package Level 1 Gross Weight: 0.08 kg
- Package Level 1 Units: 1piece
- Product Net Depth: 78.5 mm
- Product Net Height: 78 mm
- Product Net Weight: 0.068 kg
- Product Net Width: 22.5 mm
- Standards: EN 50178, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508, CAN/CSA C22.2 No.14
- Measuring Range: (L-L) 208 ... 440 V AC
- Rated Control Supply Voltage: (L-L) 208 ... 440 V AC
- Rated Frequency: Supply Circuit 50/60 Hz
- Output: 1 c/o (SPDT) contact
- Time Range: 500 ms start-up delay, 500 ms tripping delay
- Terminal Type: Screw Terminals
- Function: Phase failure detection, Phase sequence monitoring
Buy the 1SVR550824R9100 ABB Phase Sequence Monitoring Relay | myMectronic
Purchase the genuine ABB 1SVR550824R9100 Phase Sequence Monitoring Relay securely and conveniently online.
