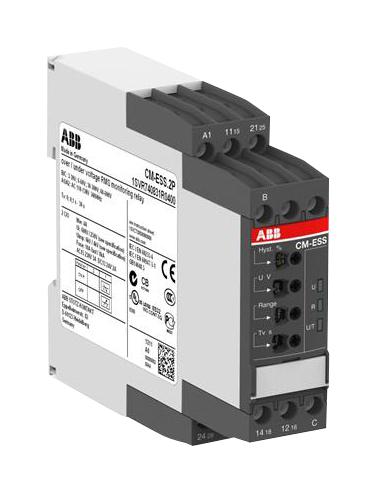

ABB 1SVR730830R0400 Voltage Monitoring Relay
The ABB CM-ESS.2 voltage monitoring relay provides robust monitoring of AC and DC voltages, ensuring system stability and protection. This relay detects phase loss and offers configurable over- or undervoltage monitoring with adjustable hysteresis. It incorporates a TRMS measuring principle, multiple measuring ranges, and a user-friendly interface for precise adjustments. The CM-ESS.2 is suitable for applications requiring reliable voltage monitoring and protection in industrial environments, offering features like tool-free mounting on DIN rails and a wide range of approvals.
ABB 1SVR730830R0400 Voltage Monitoring Relay Specifications:
- Monitoring: DC and AC voltages (3-600 V)
- Measuring Principle: TRMS
- Measuring Ranges: 3-30 V, 6-60 V, 30-300 V, 60-600 V
- Hysteresis: Adjustable (3-30 %)
- Tripping Delay: Adjustable (0 s; 0.1-30 s)
- Contacts: 2 c/o (SPDT)
- Width: 22.5 mm (0.89 in)
- Status Indication: 3 LEDs
- Housing Material: UL 94 V-0
- Connection Technology: Screw connection or Easy Connect Technology
- Mounting: DIN rail
- Approvals: EN 50155, IEC 60571, NF F 16-101/102, EN 45545-2
