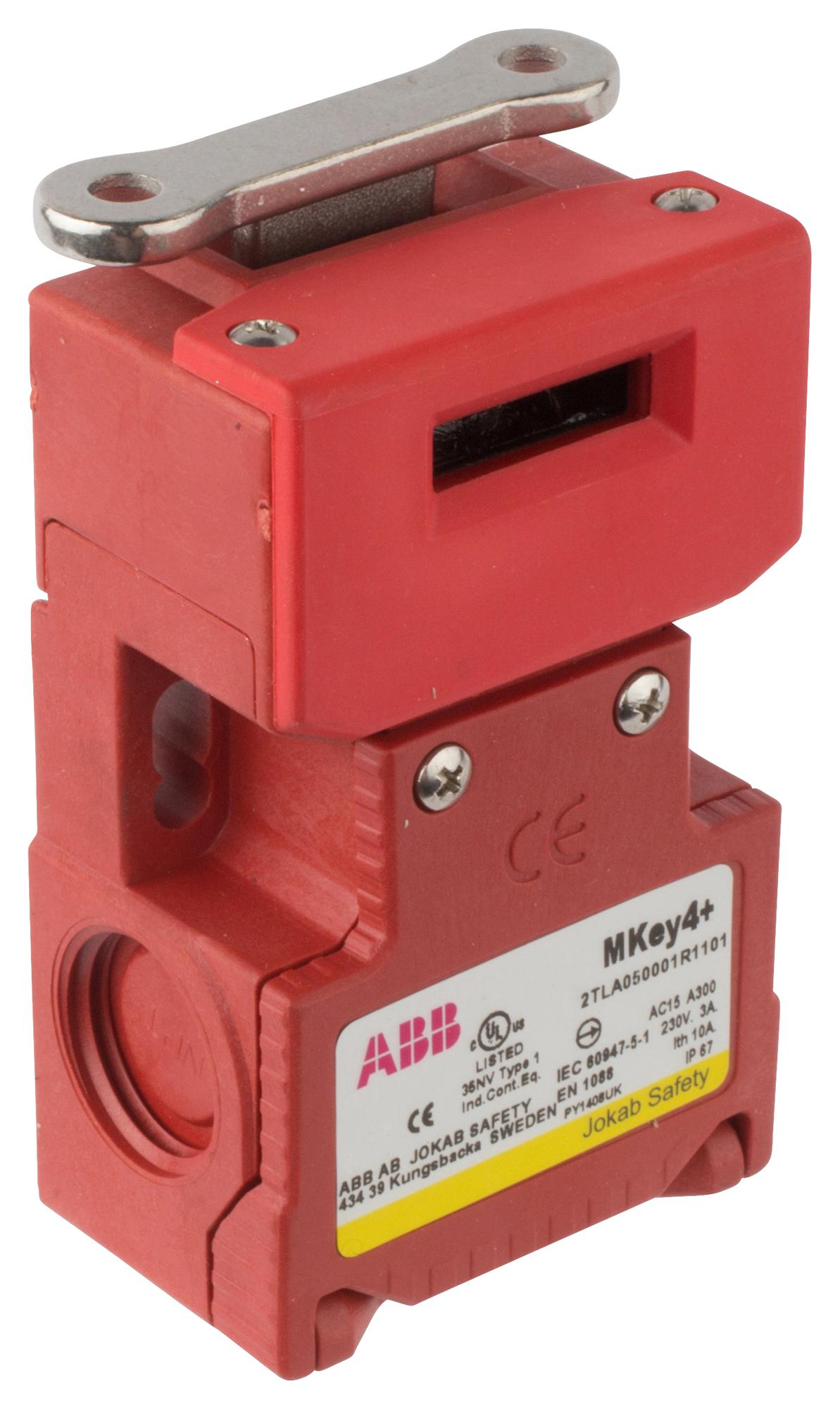

ABB 2TLA050001R1101 Explosion-proof Safety Switch
ABB Jokab Safety explosion-proof emergency stop switches and safety interlock switches designed for hazardous environments in industries like oil, chemical, and food processing. These switches conform to IECEx and ATEX standards, featuring robust IP67/IP69K ratings, stainless steel or die-cast housings, and high functional safety levels up to SIL3 and Category 4. They include various actuator options like tongue, hinge, roller, and pin types, with optional LED status indicators, manual resets, and high temperature resistance. Suitable for use in Zone 1, 2, 21, and 22 environments with magnetic or mechanical actuation, these switches ensure reliable safety control in explosive atmospheres.
ABB 2TLA050001R1101 Explosion-proof Safety Switch Specifications:
- Housing Material: Stainless Steel 316 or Die Cast Painted Yellow/Red
- Protection Class: IP67/IP69K
- Standards: IECEx, ATEX EExd IIC T6, IEC 60079-0, IEC 60079-1, IEC 947-5-1, IEC 947-5-3, EN 60204-1, ISO 13849-1, EN62061, UL508
- Operating Temperature: -25°C to +105°C (up to 125°C for some models)
- Switching Tolerance: up to 14mm (coded switches) and 12mm (magnetic switches)
- Electrical Rating: Normally Closed/Normally Open Circuits up to 230V AC/ DC, 1A to 2A with fuse protection
- Contact Type: Double break, positive opening, snap action, 2NC or 2NO contacts
- Activation Types: Tongue, hinge, roller, pin, long hinge, spring lever, and other actuator options
- Response Time: <2ms
- Mounting: M20 or NPT threaded mounting, rear or front fixing, quick connect versions available
- Additional Features: Manual reset, LED status indicators, tamper-resistant, anti-tamper mechanism, high-pressure washdown resistant
- Uses: In hazardous zones 0,1,2 for gas, and 20,21,22 for dust, suitable for explosive atmospheres, chemical plants, food industry, pharmaceuticals
Buy the ABB Series Explosion-proof Safety Switch: 2TLA050001R1101
Secure your hazardous environment installations with ABB explosion-proof safety switches designed for harsh conditions. These switches are compliant with IECEx and ATEX standards, offering rugged stainless steel or die-cast housings, high safety levels up to SIL3, Category 4, and IP67/IP69K ratings. Featuring versatile actuator options like tongue, hinge, roller, and pin with manual reset and LED indicators, they are suitable for gas and dust zones in chemical, food, and pharmaceutical industries. Reliable, durable, and easy to install, these switches deliver maximum safety and operational efficiency in explosive atmospheres.
Order your ABB Series Explosion-proof Safety Switch today and ensure maximum safety and compliance in hazardous environments with reliable explosion-proof control solutions.
Frequently Asked Questions
Where can I buy ABB 2TLA050001R1101?
You can click on the BUY or RFQ button to purchase 2TLA050001R1101 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part 2TLA050001R1101?
You can download the 2TLA050001R1101 datasheet or visit the ABB website for support.
Who is the manufacturer of 2TLA050001R1101?
ABB
