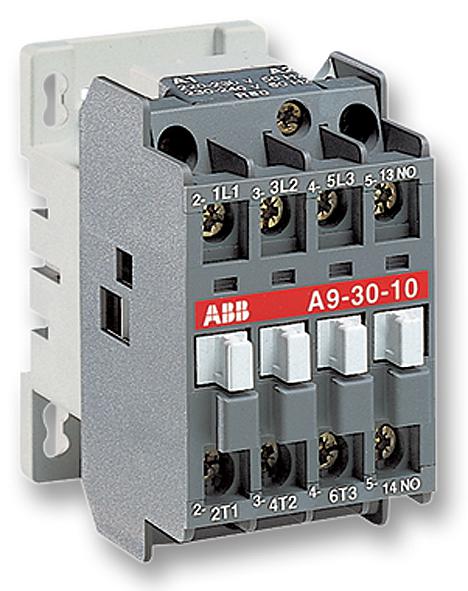

ABB A503011230V50HZ Power Contactor
The contactor is a versatile power control device designed for controlling three-phase motors and power circuits up to 690 V AC or 220 V DC. It features a block type design with three main poles, two auxiliary contacts, and front and side-mounted add-on auxiliary blocks. Operated by AC voltage with laminated magnet circuit, it supports a wide range of accessories for tailored applications. Suitable for controlling lighting, isolation, and capacitor switching, this contactor complies with international standards for safety, electromagnetism, and mechanical durability, making it ideal for industrial automation systems requiring reliable switching at high voltages and currents.
ABB A503011230V50HZ Power Contactor Specifications:
- Number of Main Contacts: 3 NO
- Number of Auxiliary Contacts: 2 (1 NO, 1 NC)
- Rated Operational Voltage Main Circuit: 1000 V
- Rated Control Circuit Voltage: 230-240 V at 50 Hz, 240-260 V at 60 Hz
- Rated Frequency: 50 Hz / 60 Hz
- Rated Operational Current AC-1: 16A at 690 V, 100 A at 690 V
- Rated Operational Power AC-3: 22 kW at 400 V, 30 kW at 500 V
- Rated Breaking Capacity: 630 A at 690 V, 1300 A at 440 V
- Mechanical Durability: 40 million cycles
- Maximum Switching Frequency: 600 cycles/hour for AC-1/AC-3
- Operating Temperature Range: -25°C to +55°C near contactor, -60°C to +80°C for storage
- Dimensions: Width 82mm, Depth 108mm, Height 110mm
- Weight: 1.2 kg
- Compliance: IEC 947-1 / 947-4-1, EN 60 947-1 / 60 947-4-1, UL, CE, CCC, DNV, GOST, RoHS
Buy the Abbott A503011230V50HZ – Reliable Power Contactor for Industrial Applications
Purchase the Abbott series power contactor online today for efficient motor control and power switching up to 690 V AC. Its robust design ensures long-lasting operation in demanding industrial environments, supporting high currents and voltages. Ideal for controlling three-phase motors, lighting, and capacitor banks, this device meets international safety and quality standards. Enjoy quick delivery, excellent support, and competitive prices when ordering online to upgrade your automation systems effortlessly and securely.
Order your Abbott Series A503011230V50HZ contactor today and enhance your industrial power control with reliable switching and durability.
Frequently Asked Questions
Where can I buy ABB A503011230V50HZ?
You can click on the BUY or RFQ button to purchase A503011230V50HZ from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part A503011230V50HZ?
You can download the A503011230V50HZ datasheet or visit the ABB website for support.
Who is the manufacturer of A503011230V50HZ?
ABB
