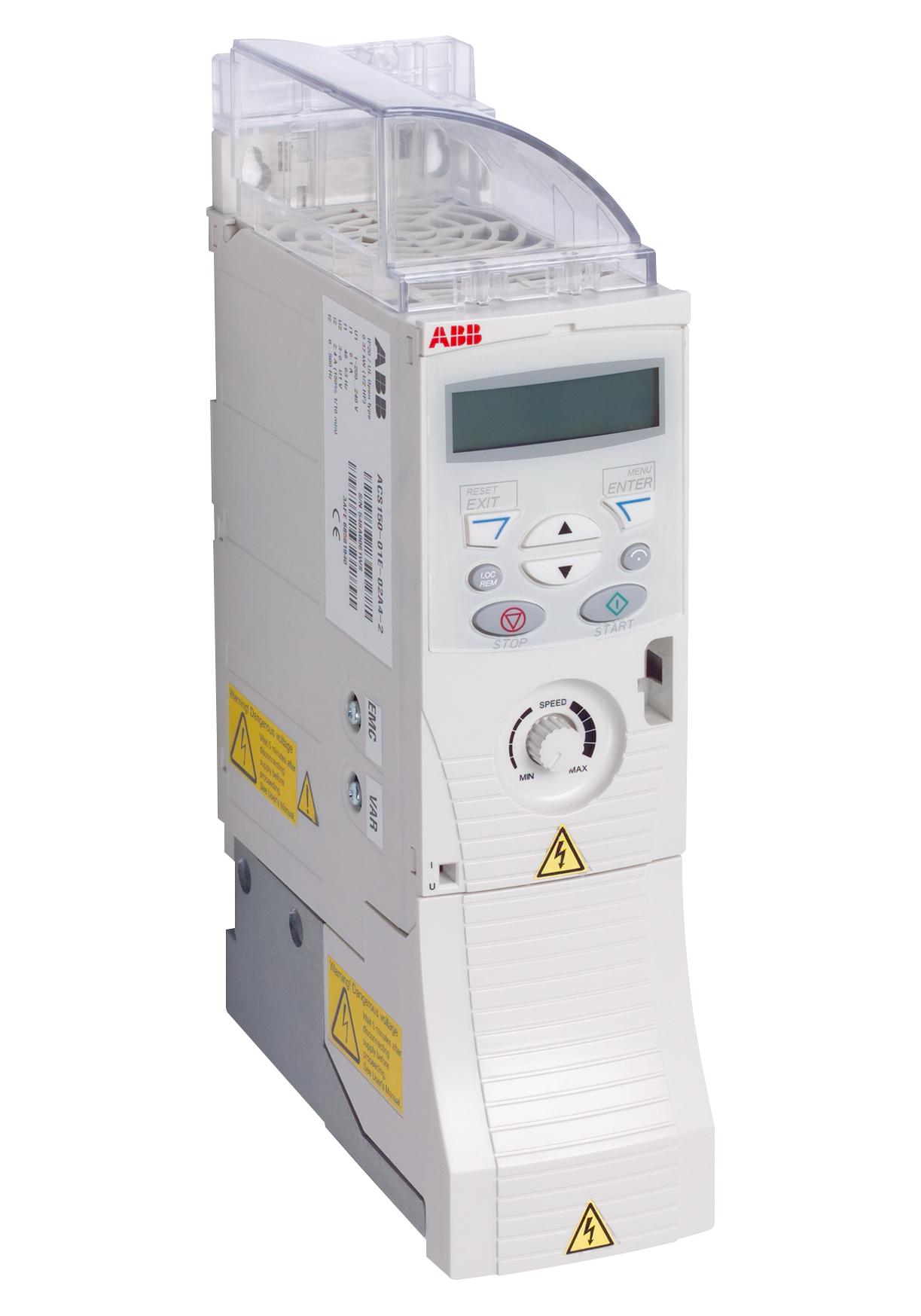

ABB ACS15003E01A94 Variable Speed Drive
The ABB ACS150 micro drive offers reliable variable speed control for motor-driven applications in industrial settings. Designed for mixers, conveyors, fans, and pumps, it features easy setup, flexible mounting options, built-in EMC filter, brake chopper, PID control, and powerful FlashDrop configuration tools. Its compact design allows space-efficient installation, making it suitable for diverse environments. With worldwide support, rugged build, and advanced safety features, the ACS150 enhances energy efficiency and process stability across manufacturing, utility, and commercial sectors, ensuring optimal operation and minimal downtime.
ABB ACS15003E01A94 Variable Speed Drive Specifications:
- Power Range: 0.37 to 4 kW (0.5 to 5 hp)
- Voltages: 1-phase 200-240 V +10%, 3-phase 200-240 V +10%, 3-phase 380-480 V
- Control Method: Scalar U/f, PID, digital inputs, relay output
- Frequency Range: 48 to 63 Hz, adjustable 0 to 500 Hz
- Braking: Built-in brake chopper, external resistor options
- Overload Capability: 1.5 x rated current for 1 min, 1.8 x for 2 s
- Cooling: Standard fans, derating at >40°C ambient
- Protection Class: NEMA 1 (optional), IP20/IP00
- Environmental Limits: Operating temp -10°C to +40°C, max 50°C with derating; Relative humidity <95%
- Input Signals: 0-10 V, 4-20 mA, digital inputs configurable as PNP or NPN; auxiliary 24 V DC output
- Control Interfaces: FlashDrop tool for quick parameter setup, optional external EMC filters, input/output chokes
- Certifications: UL, cUL, CE, RoHS, ENV 14001
- Dimensions: Varies by model, typical height with mounting approximately 100-150 mm, width 50-70 mm, depth 150-200 mm
Buy the ABB ACS150 – Reliable Variable Speed Drive for Industrial Applications
Enhance your industrial automation with the ABB ACS150 variable speed drive. Easy to configure via FlashDrop, it offers flexible mounting, integrated braking, and PID control for optimized performance. Designed with energy efficiency and reliability in mind, this drive reduces mechanical stress during start/stop operations, ensuring smooth operation in mixers, conveyors, fans, and pumps. Supported globally, it simplifies installation and maintenance, making it an essential component for industrial automation professionals seeking robust, cost-effective motor control solutions.
Get ABB ACS150 today—built for precision and long-lasting durability in your industrial process controls.
Frequently Asked Questions
Where can I buy ABB ACS15003E01A94?
You can click on the BUY or RFQ button to purchase ACS15003E01A94 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part ACS15003E01A94?
You can download the ACS15003E01A94 datasheet or visit the ABB website for support.
Who is the manufacturer of ACS15003E01A94?
ABB
