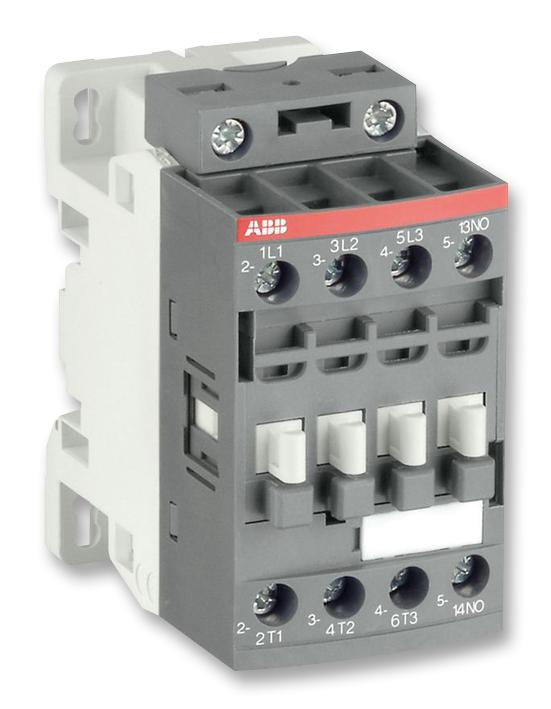

ABB AF09400014 Power Contactor
The AF09 and AF16 4-pole contactors are designed for controlling power circuits up to 690 V AC and 440 V DC, suitable for resistive or lightly inductive loads. Featuring a wide control voltage range from 24V to 500V AC and 20V to 500V DC, these contactors include an electronic coil interface for versatile operation. They offer built-in surge protection, high durability with up to 10 million cycles, and are compliant with IEC, UL, and CSA standards. Ideal for industrial automation, they support side and front mounting with various auxiliary and interlock accessories for flexible installation.
ABB AF09400014 Power Contactor Specifications:
- Rated operational voltage: Up to 690 V AC, 440 V DC
- Control voltage range: 24-500 V AC, 20-500 V DC
- Current ratings: 25A to 30A AC-1
- Number of poles: 4
- Electrical durability: 10 million cycles
- Mechanical durability: 10 million cycles
- Max switching frequency: 13,600 cycles per hour
- Enclosure protection: IP20
- Ambient temperature: Operation from 0°C to +70°C
- Coil power consumption: 50 VA (AC), 2.2 W (DC)
- Standards: IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14
- Rated insulation voltage: 690 V AC, 600 V DC
- Short-circuit protection: gG fuse 125 A
- Connecting capacity: Screw terminals for flexible or solid conductors up to 6 mm²
- Mounting: Side or front with compatibility for DIN rail
- Auxiliary contacts: 1 N.O. or 2 N.O. configurations available
- Conformity: SEMI F47-0706 (for DC control variants)
Buy the Buy ABB Power Control Contactors Part Number AF09400014 Online
Purchase the ABB AF09400014 power contactor online today to ensure efficient control of power circuits up to 690 V AC and 440 V DC. This robust device features wide control voltage compatibility, high durability of up to 10 million cycles, and built-in surge protection, making it ideal for demanding industrial applications. Its versatile mounting options and auxiliary accessories allow seamless integration into diverse automation systems, enhancing operational reliability and safety. Order now to benefit from quick delivery and technical support for your power management projects.
Buy ABB AF09400014 power control contactor now and experience unmatched reliability and performance for industrial automation needs.
