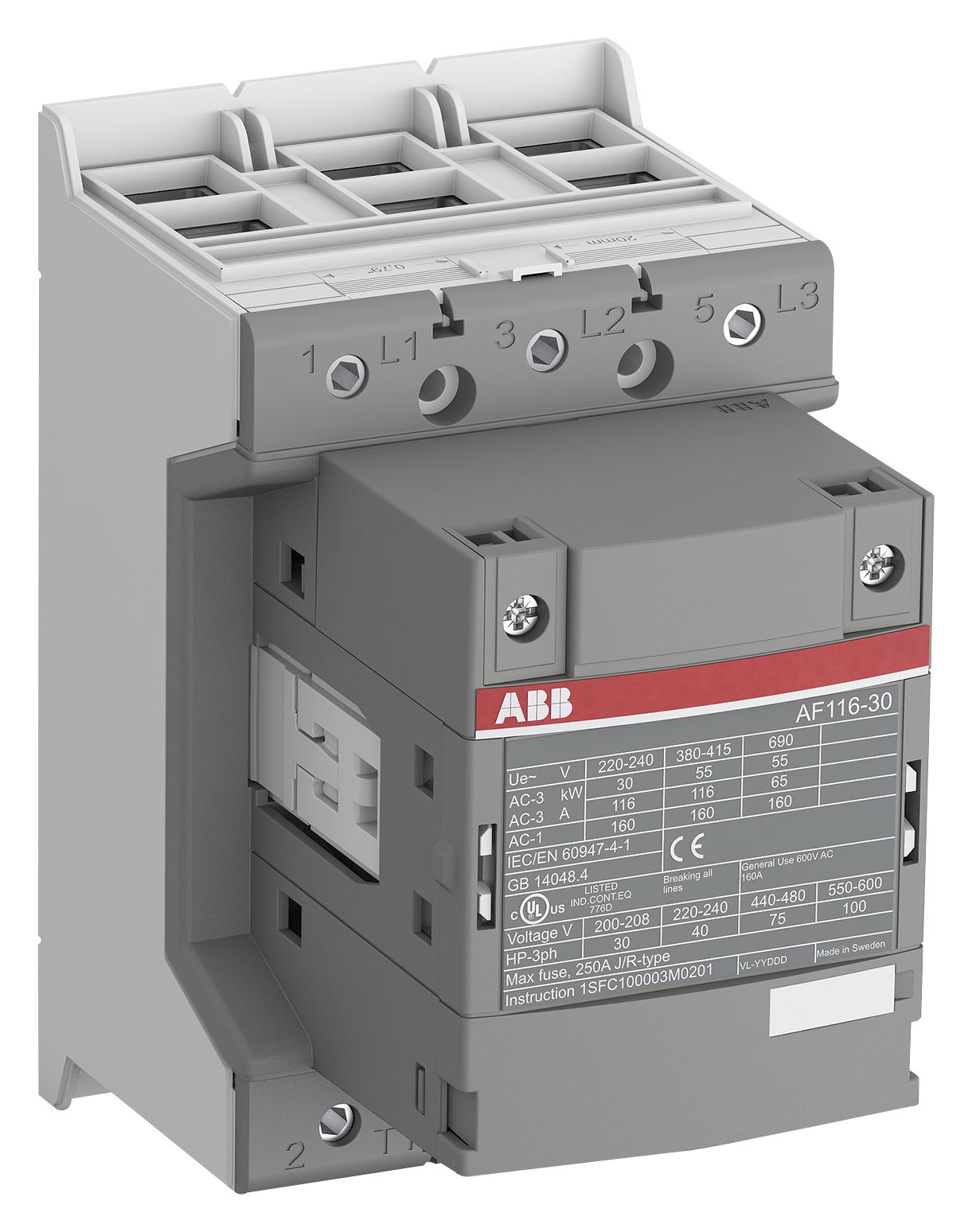

ABB AF116301113 Industrial Contactor
This 3-pole IEC-rated contactor is engineered for industrial control and switchgear applications. It operates with a coil voltage of 100-250V AC/DC, supporting a rated operational current of 116 Amps. Suitable for motor starting, isolation, bypass, and distribution up to 690 V, it features auxiliary contacts and a robust design. The contactor’s compact dimensions include a depth of 126 mm, height of 150 mm, and width of 90 mm, with a weight of 1.644 kg. It complies with IEC standards and offers reliable switching capacity for industrial automation systems.
ABB AF116301113 Industrial Contactor Specifications:
- Number of Main Contacts NC: 0
- Number of Auxiliary ContactsNO: 1
- Number of Auxiliary ContactsNC: 1
- Rated Operational Voltage: Main Circuit 690 V
- Rated Control Circuit Voltage: 100-250 V AC/DC
- Rated Operational Current AC-1 (I,): 145A at 110V, 145A at 220V, 145A at 380V, 145A at 690V
- Rated Operational Power AC-3 (Pg): Up to 70 kW at 690V
- Rated Short-time Withstand Current: 160A at 690V, 55°C
- Maximum Breaking Capacity: 160A at 690V, 55°C
- Electrical Life: 5 million cycles
- Number of Mechanical Operations: 5 million
- Coil Operating Limits: 60 Hz 100-250 V, 50 Hz 100-250 V, DC 100-250 V
- Operate Time: 25-55 ms
- Terminal Type: Double Clamp, 3 main terminals NO
- Protection Degree: IP20
- Maximum Operating Altitude: 3000 meters
- Ambient Temperature Range: -25°C to +70°C
- Certifications: UL, CSA, CE, RoHS compliant
Buy the Industrial Control Series Contactors: AF116-30-11-13
Purchase the AF116-30-11-13 contactor online today for reliable motor control, switching capacity, and industrial automation efficiency. Designed for applications up to 690 V with a supporting current of 116 Amps, this IEC-rated device features auxiliary contacts and robust construction. Ideal for motor starting, distribution, and control in automation systems, it offers easy installation with double clamp terminals, IP20 protection, and a compact form factor. Ensure operational excellence and safety in your control panels by ordering online now.
Get AF116-30-11-13 contactor today—built for precision and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy ABB AF116301113?
You can click on the BUY or RFQ button to purchase AF116301113 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part AF116301113?
You can download the AF116301113 datasheet or visit the ABB website for support.
Who is the manufacturer of AF116301113?
ABB
