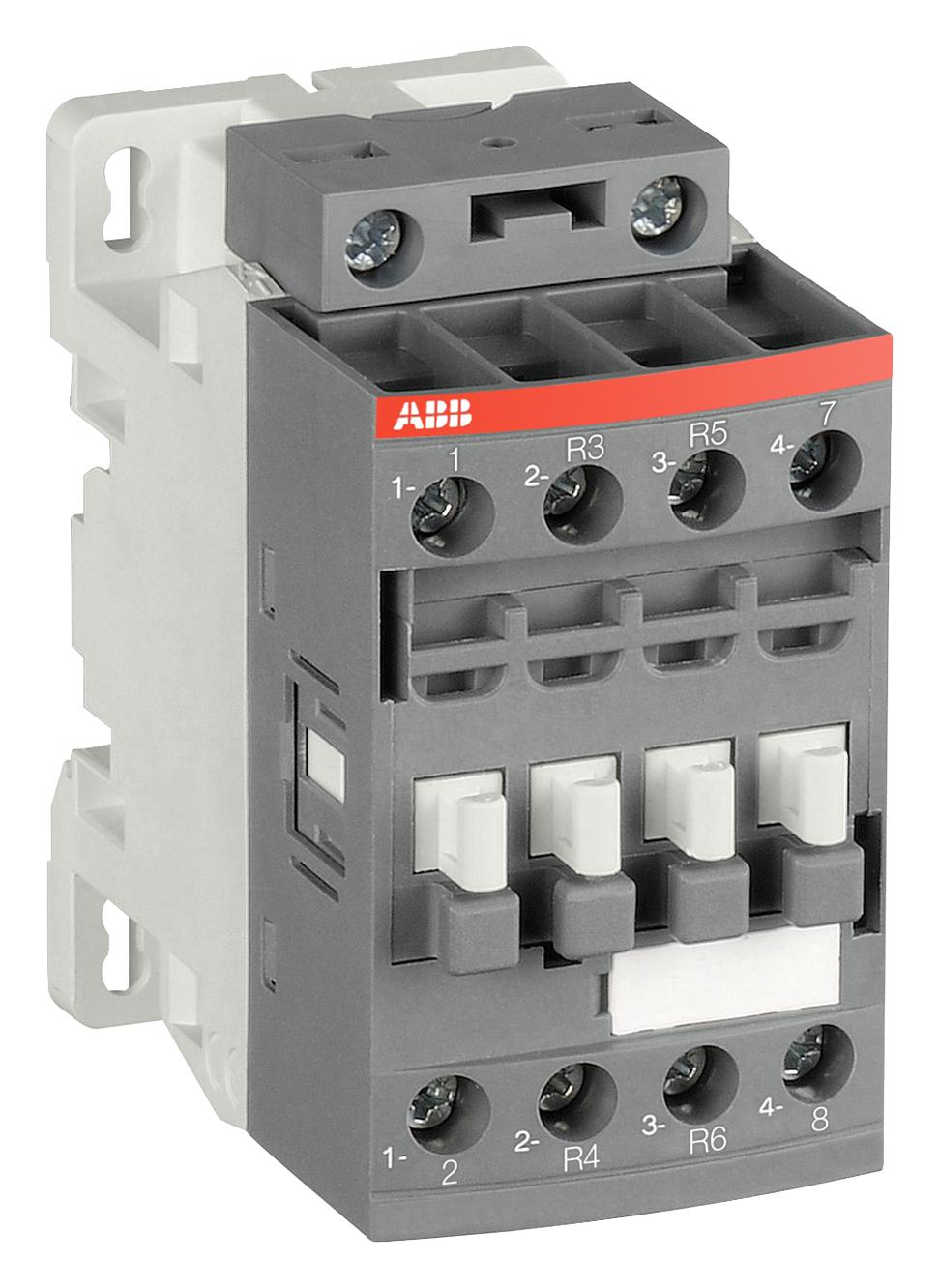

ABB AF12300111 Industrial Contactor
The AF12-30-01-11 contactor is a versatile control device designed for managing power circuits up to 690 V AC and 220 V DC. It features an electronic coil interface supporting wide control voltages from 24 V to 500 V, AC or DC, making it adaptable for global applications without coil replacement. The device includes built-in surge protection, 3 main poles, one auxiliary contact, and front and side-mounted add-on auxiliary contacts, compliant with IEC standards. It is suitable for controlling 3-phase motors and inductive loads, with a robust design offering high switching capacity, reliability, and easy installation.
ABB AF12300111 Industrial Contactor Specifications:
- Rated Operational Voltage: 24-60 V AC/DC (control circuit), up to 690 V AC in main circuit
- Control Voltage Range: 20-500 V DC, 24-500 V AC 50/60 Hz
- Number of Main Contacts: 3 poles, no normally closed auxiliary contacts
- Rated Operational Current AC-1: up to 35 A at 40°C
- Rated Operational Power AC-3: 7.5 kW at 690 V
- Rated Short-time Withstand Current: 150 A for 10 seconds
- Maximum Breaking Capacity: 300 A at 40°C
- Operating Frequency: AC-1 600 cycles/hr, AC-15 1200 cycles/hr
- Operating Time: Coil de-energization to NC close 13-98 ms, NO open 11-95 ms
- Dimensions: Depth 77mm, Height 86mm, Width 45mm
- Weight: 0.270 kg
- Protection Class: IP20
- Standards: IEC 60947-1, IEC 60947-4-1, UL 508, CSA C22.2
- Maximum Operating Altitude: 3000 meters
- Environmental resilience: Vibration, shock, and climatic resistance
Buy the Buy ABB AF12-30-01-11 Part Number AF12300111 Online
Purchase the ABB AF12-30-01-11 contactor online today and ensure efficient power management for your industrial applications. This high-capacity device is engineered for controlling large motors and inductive loads at up to 690 V AC and 220 V DC, featuring an electronic coil interface compatible with a wide control voltage range from 24 to 500 V. It includes built-in surge protection for reliability, front and side auxiliary contacts, and robust construction meeting IEC standards. Ideal for automation, motor starters, and factory automation, this contactor offers high switching capacity, ease of installation, and long-lasting performance. Buy online now for quick delivery and seamless integration into your control systems.
Get ABB AF12-30-01-11 contactor today—designed for reliable motor control and industrial switching with surge protection and wide voltage compatibility.
Frequently Asked Questions
Where can I buy ABB AF12300111?
You can click on the BUY or RFQ button to purchase AF12300111 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part AF12300111?
You can download the AF12300111 datasheet or visit the ABB website for support.
Who is the manufacturer of AF12300111?
ABB
