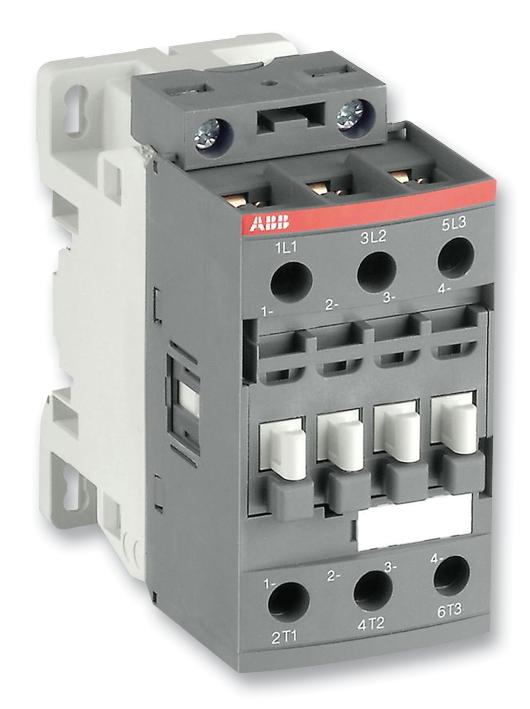

ABB AF16Z300121 Control Contactor
The AF16Z-30-01-21 is a reliable 3-pole control contactor suitable for controlling power circuits up to 690 V AC and 220 V DC, mainly used for motor control and non-inductive loads. It features an electronic coil interface accepting a wide control voltage range between 24 and 250 V, and can handle large voltage variations without coil changes. The contactor includes built-in surge protection, is UL and IEC certified, and supports control by PLC outputs with reduced coil power consumption. Its robust design ensures durability in industrial environments, with auxiliary contacts, surge protection, and flexible accessories available for various control and switching needs.
ABB AF16Z300121 Control Contactor Specifications:
- Control Voltage: 24...250 V AC/DC
- Main Poles: 3
- Auxiliary Contacts: Built-in auxiliary contact
- Rated Operational Voltage: 690 V AC / 220 V DC
- Connection Capacity Main Circuit: 35 A at 40°C, 30 A at 70°C
- Control Circuit Voltage: 24...250 V
- Dimensions: Depth 77 mm, Height 86 mm, Width 45 mm
- Weight: 0.310 kg
- Standards: IEC 60947-1, IEC 60947-4-1, UL 508, CSA C22.2
- Protection Class: IP20
- Maximum Switching Frequency: 1200 cycles/hour (AC-15), 600 cycles/hour (AC-1)
- Operate Time: 38...95 ms
- Insulation Voltage: 690 V
- Operating Temperature Range: -40°C to +70°C
- Altitude: Up to 3000 meters
- Shock Resistance: 25g (closed), 5g (open)
- Vibration Resistance: 4g (IEC 60068-2-6)
- RoHS Compliant: Yes
Buy the Siemens AF16Z-30-01-21 – Reliable Control Contactor for Industrial Applications
Purchase the Siemens AF16Z-30-01-21 control contactor online and enjoy a dependable solution for controlling power circuits up to 690 V AC and 220 V DC. Its 3-pole design ensures reliable switching of motors and loads in industrial environments. Equipped with an electronic coil interface accepting wide control voltage ranges from 24 to 250 V, this contactor features built-in surge protection and complies with IEC and UL standards. Its compact size, IP20 protection, and flexible accessories make it ideal for various automation applications, ensuring long-lasting performance and easy integration into control systems.
Get Siemens AF16Z-30-01-21 today—built for precision, durability, and versatile industrial motor control.
Frequently Asked Questions
Where can I buy ABB AF16Z300121?
You can click on the BUY or RFQ button to purchase AF16Z300121 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part AF16Z300121?
You can download the AF16Z300121 datasheet or visit the ABB website for support.
Who is the manufacturer of AF16Z300121?
ABB
