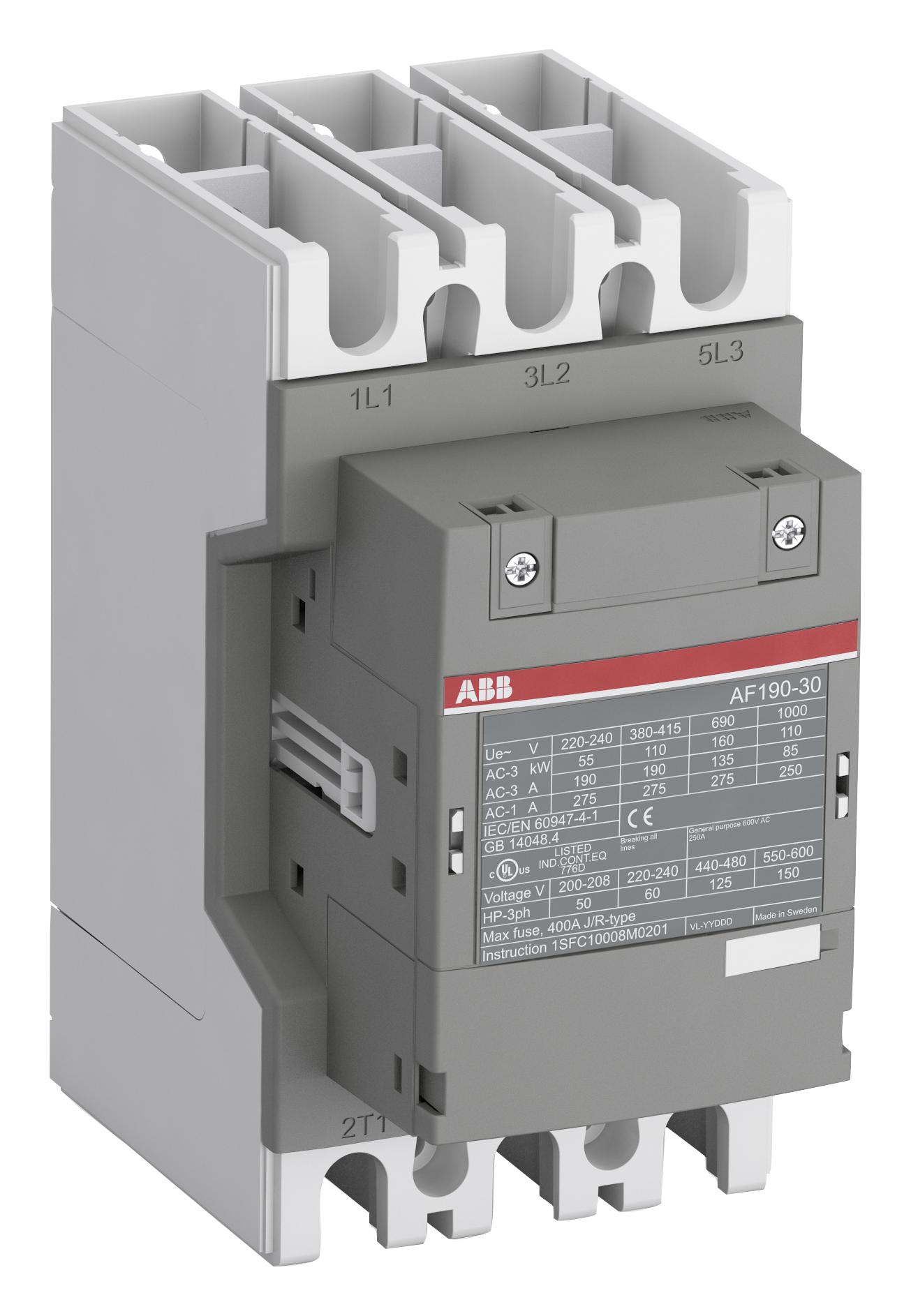

ABB AF190301113 Industrial Contact Contactor
The AF190-30-11-13 contactor is a high-performance three-phase switching device suitable for motor control, isolation, bypass, and distribution tasks up to 1000 V. Operable within a wide control voltage range of 100-250 V, 50/60 Hz, and DC, it supports various electrical ratings including AC-3 operations at up to 275A and breaking capacities up to 110 kW. It features durable main contacts, robust insulation, and a compact design ideal for industrial automation and control systems, ensuring reliable switching, safety, and efficiency.
ABB AF190301113 Industrial Contact Contactor Specifications:
- Product Depth: 152.0 mm
- Product Height: 196.0 mm
- Product Width: 105.0 mm
- Weight: 2.778 kg
- Rated Operational Voltage: 100-250 V, 50/60 Hz and DC
- Main Contacts: 0 NC, NO auxiliary contacts available
- Rated Operational Current AC-1: 250 A to 275 A depending on voltage and temperature
- Rated Operational Current AC-3: up to 275 A at 690 V, 250 A at 1000 V
- Rated Breaking Capacity: up to 132 kW at 690 V, 110 kW at 1000 V
- Rated Insulation Voltage: 1000 V
- Rated Impulse Withstand Voltage: 6 kV
- Mechanical Durability: 5 million cycles
- Operating Temperature Range: -25°C to +70°C depending on configuration
- Degree of Protection: IP20
- Terminal Type: Bars
- Maximum Operating Altitude: 3000 m
- Standards: IEC 60947-4-1, UL/CSA, RoHS compliant
Buy the Siemens Series AF190 Contactor: AF190-30-11-13
Purchase the Siemens AF190-30-11-13 contactor online today for superior motor switching and control in industrial automation. This durable device supports AC-3 operations up to 275A and 110 kW, ensuring efficient power distribution and motor protection. Its wide control voltage range of 100-250 V, combined with robust construction, guarantees long-term reliability. Ideal for motor starting, isolation, bypass, and distribution tasks, this contactor boosts operational safety and system performance, making it a smart choice for industrial control systems. Shop now for fast, secure online delivery.
Get Siemens AF190-30-11-13 contactor today—built for precision, durability, and reliable industrial control.
Frequently Asked Questions
Where can I buy ABB AF190301113?
You can click on the BUY or RFQ button to purchase AF190301113 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part AF190301113?
You can download the AF190301113 datasheet or visit the ABB website for support.
Who is the manufacturer of AF190301113?
ABB
