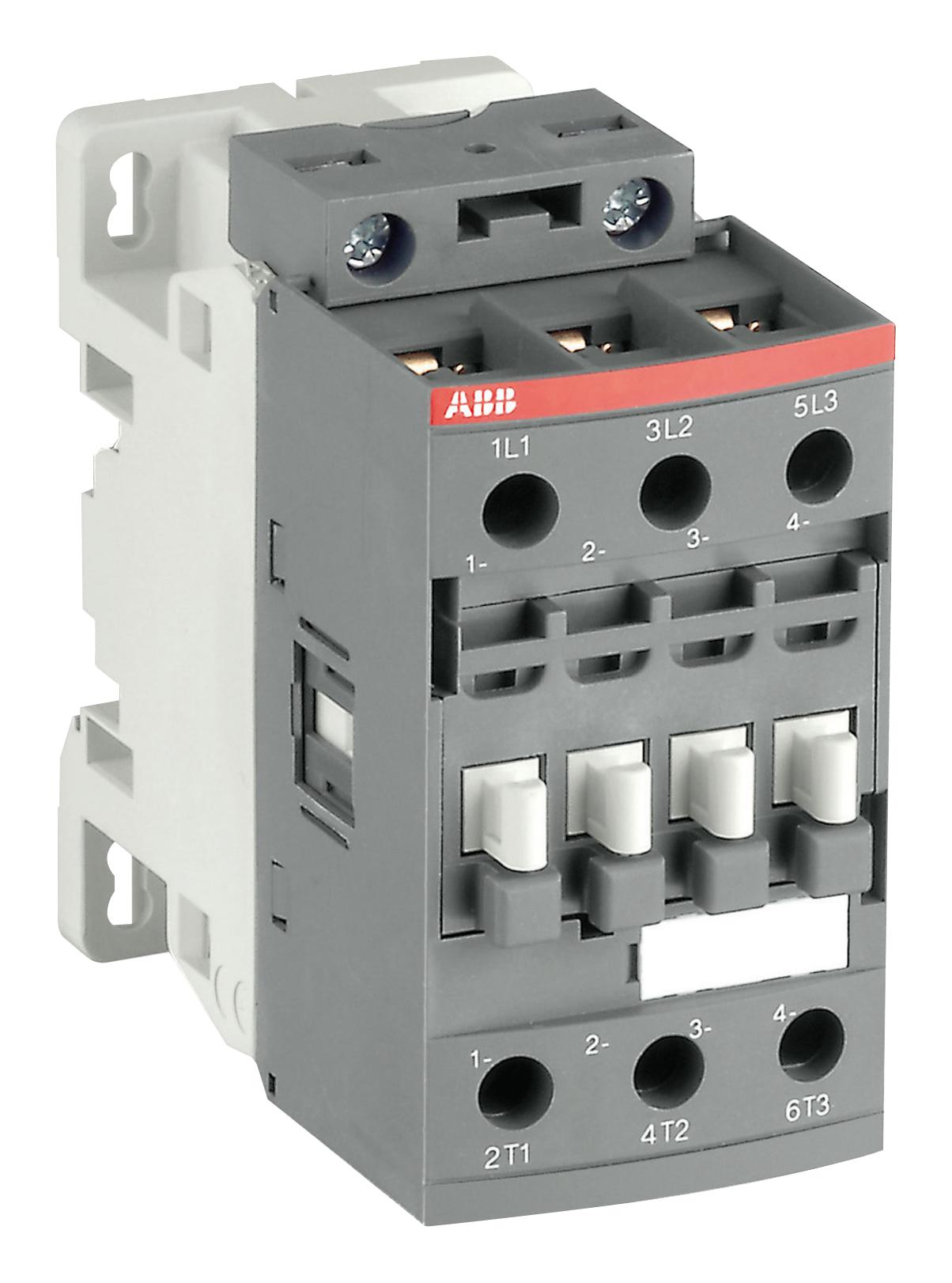

ABB AF26300011 industrial contactor
This 3-pole industrial contactor from ABB controls power circuits up to 690 V AC and 220 V DC, specifically designed for controlling motors and inductive loads. It features a compact design with screw terminals, built-in surge protection, and electronic coil interface that reduces energy consumption. Suitable for global control voltages ranging from 24 to 500 V AC/DC, it withstands voltage dips and sags, ensuring reliable operation in demanding environments. The contactor complies with IEC standards, offering high durability with up to 10 million switching cycles and an insulation voltage of 690 V.
ABB AF26300011 industrial contactor Specifications:
- Rated operational voltage Ue max: 690 V
- Rated frequency limits: 126...400 Hz
- Rated operational current for AC-1: 145.4 A at 40°C
- Rated operational current for AC-3: 26 A at 380-400 V
- Rated power for AC-3: 16.5 KW at 220-240 V
- Contactor coil voltage: 24-60 V AC/DC
- Coil consumption: 50 VA (pull-in), 2.2 VA (holding)
- Maximum switching frequency: 600 cycles/hour
- Number of operating cycles: 10 million
- Rated insulation voltage: 690 V
- Rated impulse withstand voltage: 8 kV
- Mounting position: Any, side-by-side assembly possible
Buy the ABB Series AF26 Contactor: AF26300011
Purchase the ABB AF26300011 contactor online today for high-performance motor control in industrial settings. Designed for controlling up to 690 V AC, it features reduced energy consumption, surge protection built-in, and robust construction that ensures longevity through millions of switching cycles. Compatible with control voltages from 24 to 500 V AC/DC, this contactor provides reliable switching for motors, with a rated current of 26 A and certified according to IEC standards. Order now to enhance your automation system with trusted ABB quality and ensure seamless operation in demanding environments.
Get ABB AF26300011 today—built for industrial control, reliable motor switching, and energy-efficient operation.
Frequently Asked Questions
Where can I buy ABB AF26300011?
You can click on the BUY or RFQ button to purchase AF26300011 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part AF26300011?
You can download the AF26300011 datasheet or visit the ABB website for support.
Who is the manufacturer of AF26300011?
ABB
