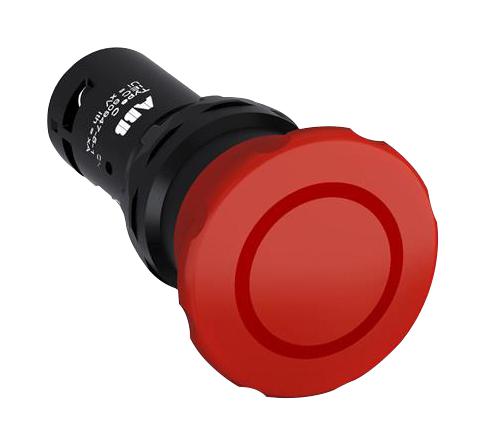

ABB CE4P10R02 Emergency Stop
The ABB CE4P-10R-02 is a compact emergency stop button designed for use in industrial machinery and control systems. Featuring a 40mm mushroom head and a pull-release mechanism, it provides a clear and immediate visual signal for emergency situations. The button is non-illuminated and housed in a red bezel for high visibility. It is suitable for a wide range of applications where rapid shutdown is critical for operator safety and equipment protection. The CE4P-10R-02 is built to withstand demanding environments and offers reliable performance.
ABB CE4P10R02 Emergency Stop Specifications:
- Extended Product Type: CE4P-10R-02
- Product ID: 1SFA619551R1051
- EAN: 7320500260807
- Catalog Description: EMERGENCY STOP#CE4P-10R-02
- Long Description: Compact Emergency Stop - Pull release - Mushroom 40mm - Red - Non-illuminated - Black
- ABB Industrial IT Suite: Control IT
- Actuator Type: Mushroom 40mm
- Ambient Air Temperature Storage: -30 … +85 °C
- Ambient Air Temperature Operation: -25 … +70 °C
- Bezel Material: n/a
- Block: 2NC
- Color: Red
- Country of Origin: China (CN)
- Customs Tariff Number: 85369001
- Data Sheet, Technical Information: 1SFC151003C0201
- Declaration of Conformity - CE: 1SFA1-82
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
- E-nummer: E3711522
- ETIM 4: EC002024 - Accessories for control circuit devices
- ETIM 5: EC002034 - Emergency stop complete
- ETIM 6: EC002034 - Emergency stop complete
- Environmental Information: 1SFC151009D0201
- Function: Pull release
- Illumination: Non-illuminated
- Instructions and Manuals: 1SFC151003C0201
- Invoice Description: EMERGENCY STOP#CE4P-10R-02
- Mechanical Durability: 0.5 million
- Minimum Order Quantity: 1 piece
- Number of Auxiliary Contacts NC: 2
- Object Classification Code: S
- Package Level 1 Gross Weight: 0.036 kg
- Package Level 1 Height: 0.04 m
- Package Level 1 Length: 0.1 m
- Package Level 1 Units: 10 piece
- Package Level 1 Width: 0.1 m
- Product Main Type: CE4P
- Product Net Depth: 0.073 m
- Product Net Height: 0.040 m
- Product Net Weight: 0.036 kg
- Product Net Width: 0.030 m
- Product Range: Compact
- Product Type: CE
- Rated Frequency (f) Supply Circuit: 50 Hz, 60 Hz
- Rated Operational Current AC-15 (I ): (24 / 127 V) 1.5 A, (220 / 240 V) 1 A
- Rated Operational Current DC-13 (I ): (24 V) 0.3 A, (125 V) 0.2 A
- RoHS Date: 0626 5
- RoHS Information: 1SFC151012D0202
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Selling Unit of Measure: piece
- Short Description: Red Compact Emergency Stop
- UNSPSC: 39121500
Buy the CE4P-10R-02 ABB Emergency Stop | myMectronic
Purchase the ABB CE4P-10R-02 Emergency Stop securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy ABB CE4P10R02?
You can click on the BUY or RFQ button to purchase CE4P10R02 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part CE4P10R02?
You can download the CE4P10R02 datasheet or visit the ABB website for support.
Who is the manufacturer of CE4P10R02?
ABB
