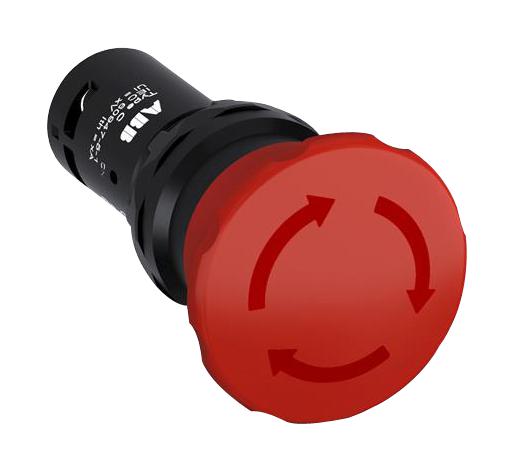

ABB CE4T10R11 Emergency Stop
The ABB CE4T-10R-11 is a robust and reliable emergency stop button designed for use in a wide range of industrial applications. Its compact design and twist-release mechanism provide a quick and intuitive response in emergency situations. The button features a 40mm mushroom head, a red color for high visibility, and includes 1NO and 1NC auxiliary contacts for integration into safety circuits. Constructed with durable materials, the CE4T-10R-11 ensures long-lasting performance and reliable operation in demanding environments. It is suitable for use in machinery, equipment, and control panels where immediate shutdown is critical for personnel safety.
ABB CE4T10R11 Emergency Stop Specifications:
- Extended Product Type: CE4T-10R-11
- Product ID: 1SFA619550R1071
- EAN: 7320500260838
- Catalog Description: EMERGENCY STOP#CE4T-10R-11
- Long Description: Compact Emergency Stop - Twist release - Mushroom 40mm - Red - Non-illuminated - Black plastic - 1NO+1NC
- ABB Industrial IT Suite: Control IT
- Actuator Type: Mushroom 40mm
- Ambient Air Temperature_Storage: -30 … +85 °C
- Ambient Air Temperature_Operation: -25 … +70 °C
- Bezel Material: n/a
- Block: 1NO+1NC
- Color: Red
- Country of Origin: China (CN)
- Customs Tariff Number: 85369001
- Data Sheet, Technical Information: 1SFC151003C0201
- Declaration of Conformity - CE: 1SFA1-82
- Degree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
- E-nummer: E3711520
- ETIM 4: EC002024 - Accessories for control circuit devices
- ETIM 5: EC002034 - Emergency stop complete
- ETIM 6: EC002034 - Emergency stop complete
- Environmental Information: 1SFC151009D0201
- Function: Twist release
- Illumination: Non-illuminated
- Instructions and Manuals: 1SFC151003C0201
- Invoice Description: EMERGENCY STOP#CE4T-10R-11
- Mechanical Durability: 0.5 million
- Minimum Order Quantity: 1 piece
- Number of Auxiliary Contacts NC: 1
- Number of Auxiliary Contacts NO: 1
- Object Classification Code: S
- Package Level 1 Gross Weight: 0.036 kg
- Package Level 1 Height: 0.04 m
- Package Level 1 Length: 0.1 m
- Package Level 1 Units: 10 piece
- Package Level 1 Width: 0.1 m
- Product Main Type: CE4T
- Product Net Depth: 0.073 m
- Product Net Height: 0.040 m
- Product Net Weight: 0.036 kg
- Product Net Width: 0.030 m
- Product Range: Compact
- Product Type: CE
- Rated Frequency (f)_Supply Circuit: 50 Hz, 60 Hz
- Rated Operational Current AC-15 (I )_24/127V: 1.5 A
- Rated Operational Current AC-15 (I )_220/240V: 1 A
- Rated Operational Current DC-13 (I )_24V: 0.3 A
- Rated Operational Current DC-13 (I )_125V: 0.2 A
- RoHS Date: 0626 5
- RoHS Information: 1SFC151012D0202
- RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Selling Unit of Measure: piece
- Short Description: Red Compact Emergency Stop
- UNSPSC: 39121500
