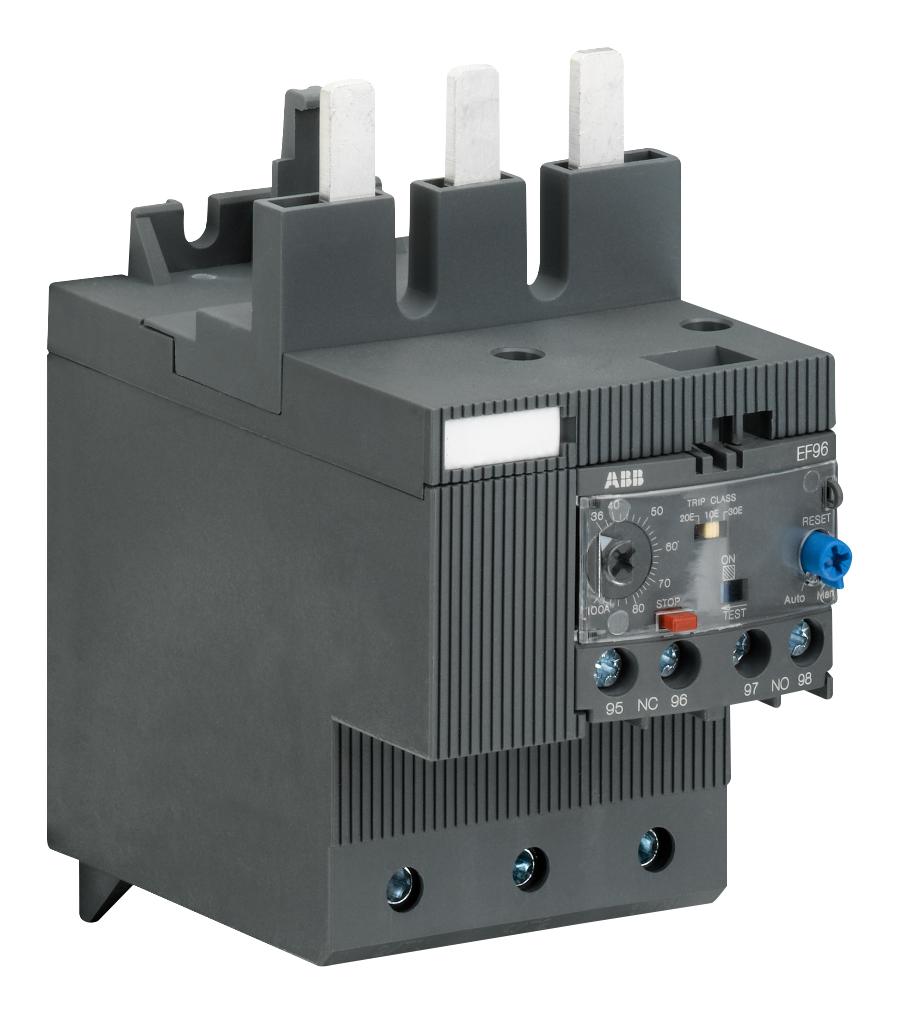

ABB EF96100 Electronic Overload Relay
The ABB EF96-100 Electronic Overload Relay is designed for current ratings between 36 and 100 Amps, offering reliable overload and phase failure protection. It requires no external power supply, features high accuracy, wide setting range, temperature compensation, trip class options (10E, 20E, 30E), and includes a trip indication, reset options, and signal contacts. Mounted directly to contactors like AF80 or AF96, this relay operates efficiently at temperatures up to 70°C, with robust protection and compliance with international standards, making it ideal for diverse industrial motor protection applications.
ABB EF96100 Electronic Overload Relay Specifications:
- Rated Operational Voltage: 100 V AC/DC (Auxiliary Circuit), 600 V AC (Main Circuit)
- Rated Operational Current: 36 to 100 A
- Number of Poles: 3 main, 1 auxiliary NC, 1 auxiliary NO
- Auxiliary Circuit: 6 A at 240 V, 3 A at 400 V (NC), 3 A at 240 V (NO)
- Main Circuit: 600 V AC, 8 kV impulse withstand voltage
- Temperature Range: -25°C to +70°C operational, -50°C to +85°C storage
- Protection Degree: IP20 housing, IP10 main circuit terminals
- Connecting Capacity: Flexible with ferule 8-2 AWG, 18-10 AWG, rigid 1/2x 1-4 mm
- Mounting Position: Positions 1 to 6, compliant with IEC/EN standards
- Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1
- Setting Range: 36 to 100 A, adjustable, with trip class options 10E, 20E, 30E
- Dimensions: Height 132.7 mm, Depth 105.2 mm, Width 70 mm, Weight 0.802 kg
- Environmental: Max altitude 2000 m, resistant to shocks (IEC 611 ms, 25g), vibrations (IEC 60068-2-6)
- Standby Power Loss: 0.117 to 0.9 W per pole at rated conditions
Buy the ABB EF96-100 – Reliable Electronic Overload Relay for Industrial Applications
Purchase the ABB EF96-100 electronic overload relay online today for your industrial motor protection needs. Designed for current ranges from 36 to 100 Amps, it provides accurate overload and phase failure protection, with easy mounting and adjustable trip settings. Built to meet international standards, its temperature compensation, trip indication, and compatibility with contactors like AF80 and AF96 make it ideal for diverse industrial environments. Secure your system’s reliability and productivity by ordering online now.
Get ABB EF96-100 today—built for precision and long-lasting durability in motor protection systems.
Frequently Asked Questions
Where can I buy ABB EF96100?
You can click on the BUY or RFQ button to purchase EF96100 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part EF96100?
You can download the EF96100 datasheet or visit the ABB website for support.
Who is the manufacturer of EF96100?
ABB
