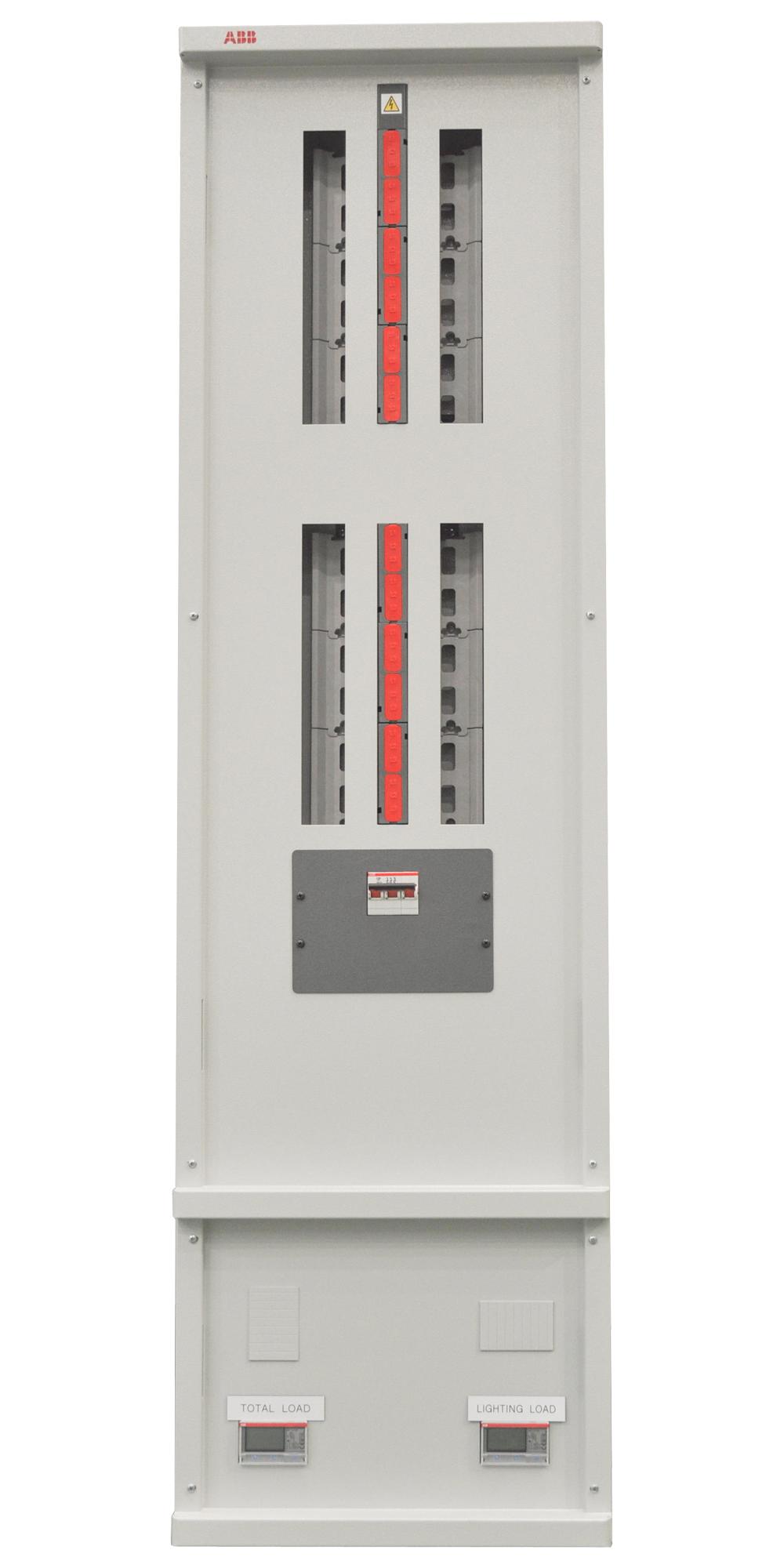

ABB EPPVSL1681254P Electrical Distribution Board
The Protecta Plus distribution system offers modular, expandable electrical distribution boards designed for safety, efficiency, and easy installation. With various configurations including horizontal, vertical, and split-load options, the system features reinforced safety features like contact position indication, RFID authentication, and finger-safe terminals. It supports comprehensive metering, surge protection, and energy monitoring, making it suitable for diverse commercial and industrial applications. The boards have reduced height for space savings, robust materials for durability, and versatile mounting options for efficient wiring and maintenance.
ABB EPPVSL1681254P Electrical Distribution Board Specifications:
- Structure in epoxy coated metal sheets, 1mm thick, textured finish
- Degree of protection: IP30 (without door), IP43 (with door)
- Busbar rating: 250A
- Maximum ambient temperature: +35°C
- Mounting: Wall, DIN rail (35mm)
- Number of ways: 4, 8, 12, 16, 20, 24
- Height available: 590mm to 1360mm; Width: 450mm; Depth: starting from 125mm
- Rated operational voltage: 415 VAC
- Compliance with IEC BS EN 61439-1-2
- Material: Cold rolled sheet steel, textured powder coating, RAL7035
- Contact elements: Finger-safe terminals, captive screws, laser marking
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2
- Protection degree: IP40 in enclosure, IP20 terminals
- Mechanical durability: 20,000 operations (MCB), 10,000 operations (RCBO)
- Operating temperature range: -25°C to +45°C
- Storage temperature: -40°C to +470°C
- Degree of insulation: Group I, RAL 7035; Group II, black, sealable
Buy the Buy ABB Protecta Plus Distribution Board Part Number EPPVSL1681254P Online
Purchase the ABB Protecta Plus distribution board online today and benefit from advanced safety features, modular expandability, integrated energy metering, and surge protection. Designed for ease of installation and maintenance, this space-efficient solution helps ensure continuous and secure power distribution for commercial and industrial environments. With durable materials, comprehensive certification, and customizable configurations, it offers excellent reliability, operational safety, and cost-effective scalability for a wide range of applications.
Buy ABB Protecta Plus distribution system with integrated metering and surge protection now and experience reliable, space-saving electrical distribution.
Frequently Asked Questions
Where can I buy ABB EPPVSL1681254P?
You can click on the BUY or RFQ button to purchase EPPVSL1681254P from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part EPPVSL1681254P?
You can download the EPPVSL1681254P datasheet or visit the ABB website for support.
Who is the manufacturer of EPPVSL1681254P?
ABB
