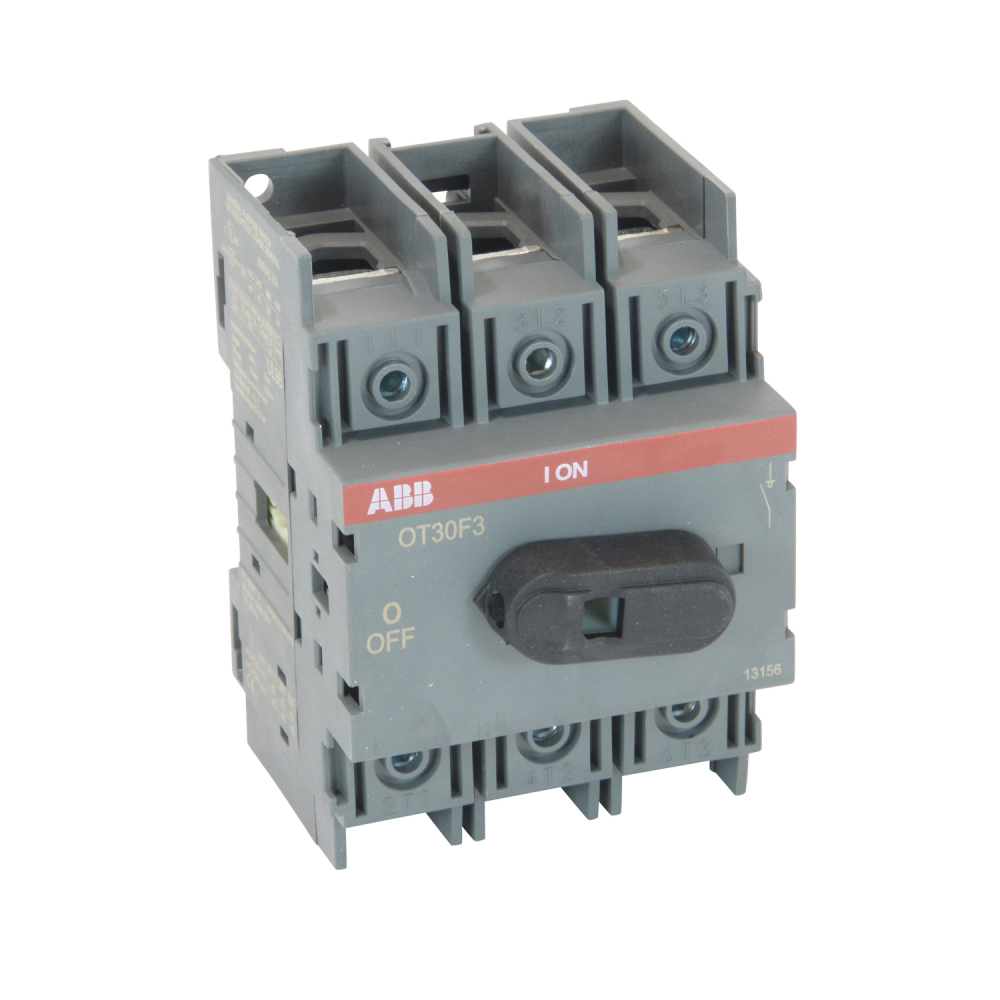

ABB OT30F3 Three-Pole Disconnect Switch
This non-fusible disconnect switch is designed for panel mounting, offering reliable control of electrical circuits with three poles and a 30 UL amp rating. It ensures safety and efficiency in industrial applications by providing positive opening operation, visible blades, and a dead-front construction with terminal shrouds for enhanced safety. The switch supports multiple mounting options, including door, DIN rail, and base mounting, and features a door interlock mechanism to prevent accidental operation. Suitable for motor disconnects and control panel applications, this compact and versatile switch complies with international safety standards such as UL, CSA, IEC, and CE marked certifications.
ABB OT30F3 Three-Pole Disconnect Switch Specifications:
- Number of Poles: 3 poles
- Amp Rating: 30 UL amps
- Max Operating Voltage: 600V
- Operating Voltage: 600V AC / 1000V DC
- Mechanical Interlock: Yes
- Handle Type: External shaft, snap-on or screw mounting
- Handle Color: Black or Red/Yellow
- Handle Lengths: 65mm, 80mm, 125mm, 145mm, 274mm, 330mm
- Enclosure Rating: NEMA 1, 12, 3R, 4, 4X, 12
- Dimensions: Varied by handle size, typically around 2.68 inches height, 1.88 inches width, and 2.20 inches depth
- Weight: Approximately 0.24 lbs
- Material: Dielectric resistant insulating material
- Standards: UL98, CSA, IEC 947-1 and 3, CE marked
- Suitable for Motor Disconnects and Control Panel Applications
- Mounting Options: Door, DIN rail, base with screws
- Positive opening and welded contact safeguard
- Vandal-proof, dead-front construction
- Supports padlocking for OFF position
Buy the Buy ABB OT30F3 Three-Pole Non-Fusible Disconnect Switch Part Number OT30F3 Online
Purchase the ABB OT30F3 three-pole non-fusible disconnect switch online today and benefit from a compact, high-performance safety device engineered for industrial control. With multiple mounting options, positive opening operation, and international certifications, this switch offers reliable circuit control. Its dead-front design, welded contacts, and padlockable handle ensure safety in demanding environments. Get it now to enhance your electrical system’s safety, reduce installation time, and ensure compliance with global standards for industrial disconnect switches.
Order your ABB OT30F3 three-pole non-fusible disconnect switch today and ensure safe, reliable control of your electrical circuits with ease and efficiency.
Frequently Asked Questions
Where can I buy ABB OT30F3?
You can click on the BUY or RFQ button to purchase OT30F3 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part OT30F3?
You can download the OT30F3 datasheet or visit the ABB website for support.
Who is the manufacturer of OT30F3?
ABB
