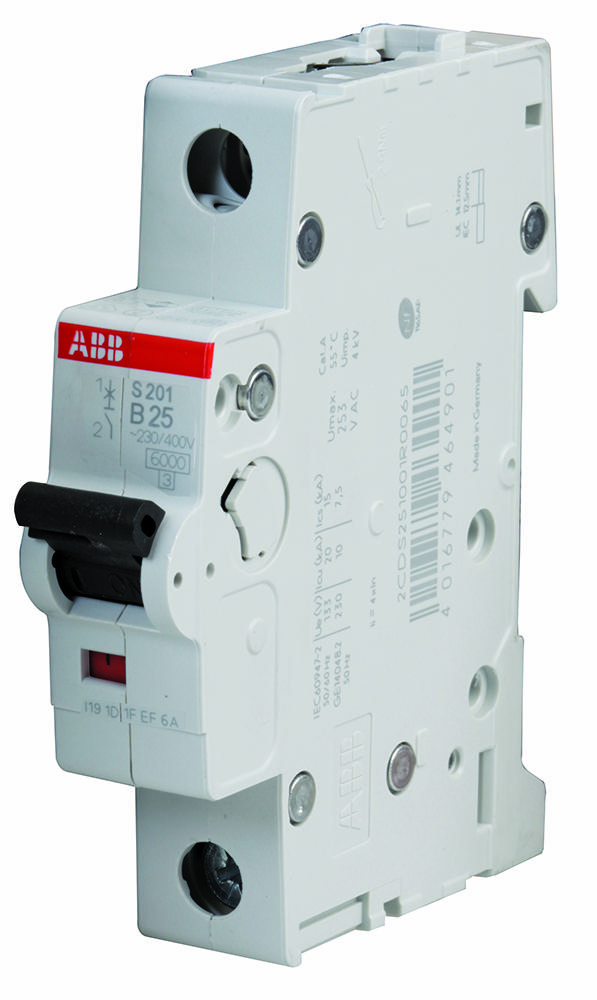

ABB S201B25 Miniature Circuit Breaker
The S200 miniature circuit breaker (MCB) provides reliable overload and short circuit protection for residential, commercial, and industrial systems. Designed with B trip characteristics, it supports 25A rated current and is IEC and UL compliant. Its compact size (69mm deep, 88mm high, 17.5mm wide) allows easy DIN rail mounting, saving space with optional auxiliary contacts. Suitable for AC operation at 230/400 V and DC up to 72 V, it offers high mechanical and electrical endurance, making it ideal for various low-voltage distribution applications.
ABB S201B25 Miniature Circuit Breaker Specifications:
- Number of Poles: 1
- Tripping Characteristic: B
- Rated Current (In): 25A
- Rated Operational Voltage: 230/400 V AC
- Maximum Voltage: 253 V AC
- Rated Short-Circuit Capacity: 6 kA at 230/400 V AC
- Rated Impulse Withstand Voltage: 4kV
- Rated Frequency: 50/60Hz
- Housing Material: RAL 7035, Insulation Group II
- Degree of Protection: IP40
- Terminal Type: Screw Terminals
- Tightening Torque: 2.8Nm
- Mounting: DIN Rail TH35-15/7.5
- Mechanical Endurance: 20000 cycles
- Electrical Endurance: 20000 cycles
- Operating Temperature: -25°C to +55°C
- RoHS Compliant
Buy the ETAP 2CDS251001R0255 – Reliable Miniature Circuit Breaker for Industrial Applications
Purchase the ETAP miniature circuit breaker online today to enhance your electrical protection. Designed for reliable overload and short circuit protection, it offers high durability and compliance with international standards. Its compact form factor allows easy DIN rail mounting, saving space in distribution boards. Suitable for residential, commercial, and industrial applications, this breaker supports AC and DC operation with a rated current of 25A. Secure your projects with a proven component—order now to benefit from fast delivery and guaranteed quality.
Order your ETAP Series 2CDS251001R0255 miniature circuit breaker today and ensure your electrical systems are protected with dependable quality.
Frequently Asked Questions
Where can I buy ABB S201B25?
You can click on the BUY or RFQ button to purchase S201B25 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S201B25?
You can download the S201B25 datasheet or visit the ABB website for support.
Who is the manufacturer of S201B25?
ABB
