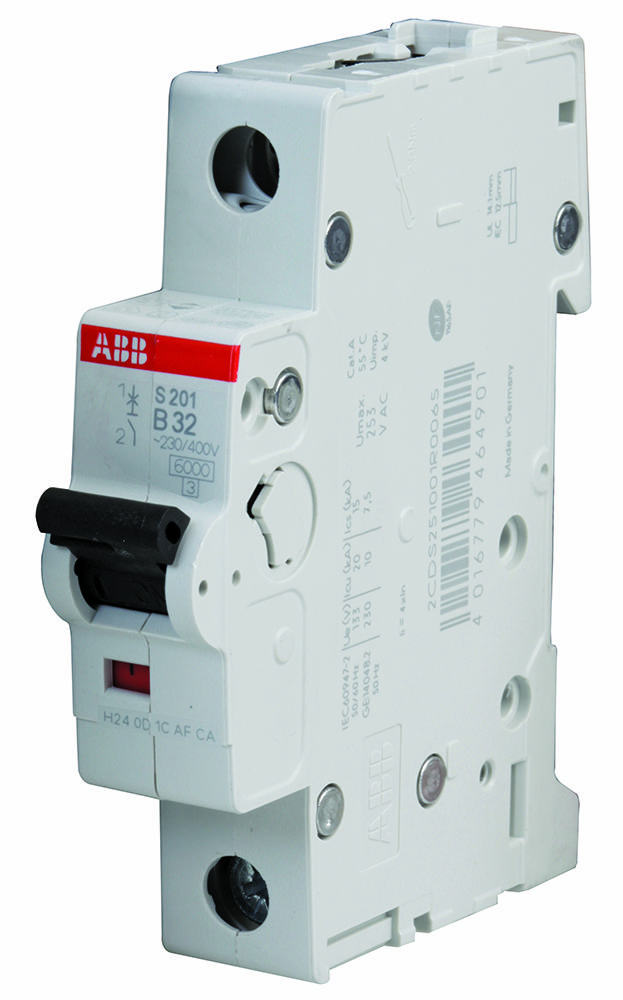

ABB S201B32 Miniature Circuit Breaker
The miniature circuit breaker S200 is a reliable, current-limiting device designed for residential, commercial, and industrial applications. It features B-characteristic tripping for overload protection and short circuit protection mechanisms, with a rated current of 32A and a rated voltage of 230/400 V AC. Compact and easy to mount on DIN rails, it provides high breaking capacity up to 6kA, with a durability of 10,000 electrical and 20,000 mechanical cycles, meeting IEC and UL standards for safety and performance.
ABB S201B32 Miniature Circuit Breaker Specifications:
- Number of Poles: 1
- Rated Current: 32A
- Rated Voltage: 230/400 V AC
- Breaking Capacity: 6kA (UL), 20kA (IEC)
- Rated Short-Circuit Capacity (Icn): 6kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icy): 20kA
- Rated Service Short-Circuit Breaking Capacity (Ics): 15kA
- Rated Impulse Withstand Voltage: 4kV
- Dielectric Test Voltage: 2kV (1 min)
- Housing Material: RAL 7035, insulating, IP40
- Actuator Type: Red ON / Green OFF
- Terminal Type: Screw Terminal
- Connecting Capacity: 18-4 AWG conductors
- Tightening Torque: 2.8 Nm
- Mounting on DIN Rail: TH35-15 or TH35-7.5
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
- Temperature Range: -25°C to +55°C
- Environmental Resistance: Shock 25g/2 shocks/13 ms, Vibration IEC 60068-2-6
Buy the Reliable Switchgear 201-B32 – Reliable Circuit Protection for Industrial Applications
Purchase the 201-B32 miniature circuit breaker online now and ensure optimal electrical safety in your residential, commercial, or industrial setups. This compact device offers high breaking capacity up to 6kA, reliable B-curve tripping for overload and short circuit protection, and compliance with IEC and UL standards. Easy to install on DIN rails, it guarantees durable performance, with 10,000 electrical and 20,000 mechanical cycles. Perfect for modern electrical systems seeking quality, safety, and long-term reliability.
Get 201-B32 today—built for precision, robust performance, and long-lasting durability in electrical protection systems.
Frequently Asked Questions
Where can I buy ABB S201B32?
You can click on the BUY or RFQ button to purchase S201B32 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S201B32?
You can download the S201B32 datasheet or visit the ABB website for support.
Who is the manufacturer of S201B32?
ABB
