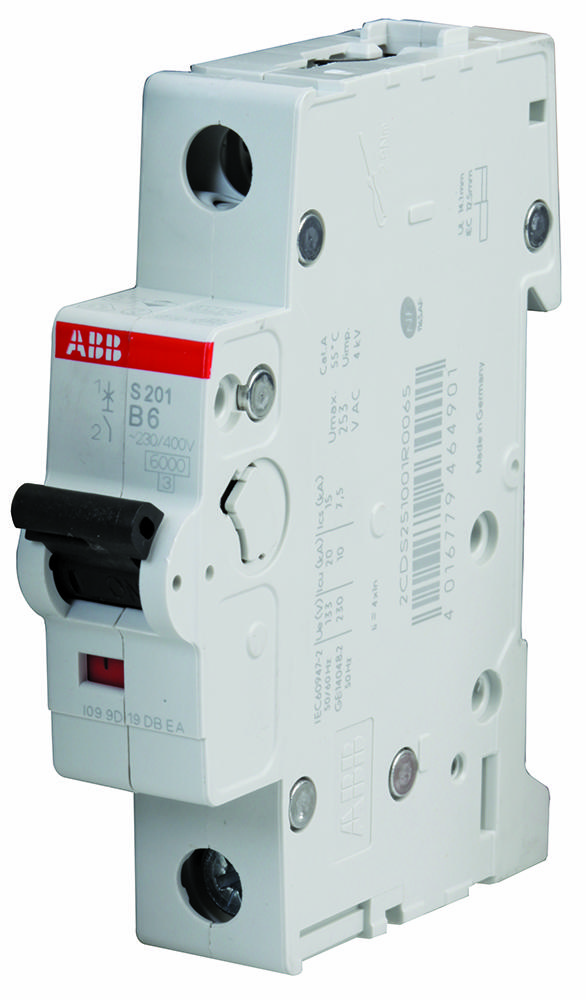

ABB S201B6 Miniature Circuit Breaker
The miniature circuit breaker S200 1P B-6 A is a compact, current-limiting device suitable for residential, commercial, and industrial applications. It features thermal overload protection and electromechanical short circuit tripping mechanisms, with a rated current of 6A and a maximum short-circuit capacity of 6kA at 230/400 V AC. Designed to meet IEC, UL, and CSA standards, it is mounted on a DIN rail and includes optional auxiliary contacts for space-saving. Its robust construction guarantees reliable operation in diverse environmental conditions, making it ideal for protecting electrical circuits from overload and short circuits.
ABB S201B6 Miniature Circuit Breaker Specifications:
- Number of Poles: 1
- Tripping Characteristic: B
- Rated Current (In): 6A
- Rated Operational Voltage: 230/400 V AC
- Maximum Short-Circuit Capacity: 6kA at 230/400 V AC
- Rated Impulse Withstand Voltage: 4kV
- Rated Frequency: 50/60Hz
- Rated Service Short-Circuit Breaking Capacity: 15kA
- Housing Material: RAL 7035, Insulation Group II
- Degree of Protection: IP40 in enclosure
- Mounting: DIN Rail, TH35-15 or TH35-7.5
- Terminal Type: Screw Terminals
- Connecting Capacity: Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm²
- Tightening Torque: 2.8Nm
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
- Operating Temperature: -25 ... +55°C
- Durability: 20,000 AC and DC cycles
Buy the Siemens S201B6 – Reliable Circuit Protection for Industrial Applications
Purchase the Siemens S201B6 miniature circuit breaker online today for dependable electrical circuit protection. Its compact, DIN rail-mount design includes thermal and short-circuit trip mechanisms rated at 6A, ensuring reliable overload and fault protection in residential, commercial, and industrial environments. Compliant with IEC, UL, and CSA standards, this device features screw terminals, easy installation, and robust construction for safety and durability. Order now and enhance your electrical system's safety with this reliable circuit breaker, ensuring long-term operational excellence.
Get Siemens S201B6 today—built for precision and long-lasting durability in electrical circuit protection.
Frequently Asked Questions
Where can I buy ABB S201B6?
You can click on the BUY or RFQ button to purchase S201B6 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S201B6?
You can download the S201B6 datasheet or visit the ABB website for support.
Who is the manufacturer of S201B6?
ABB
