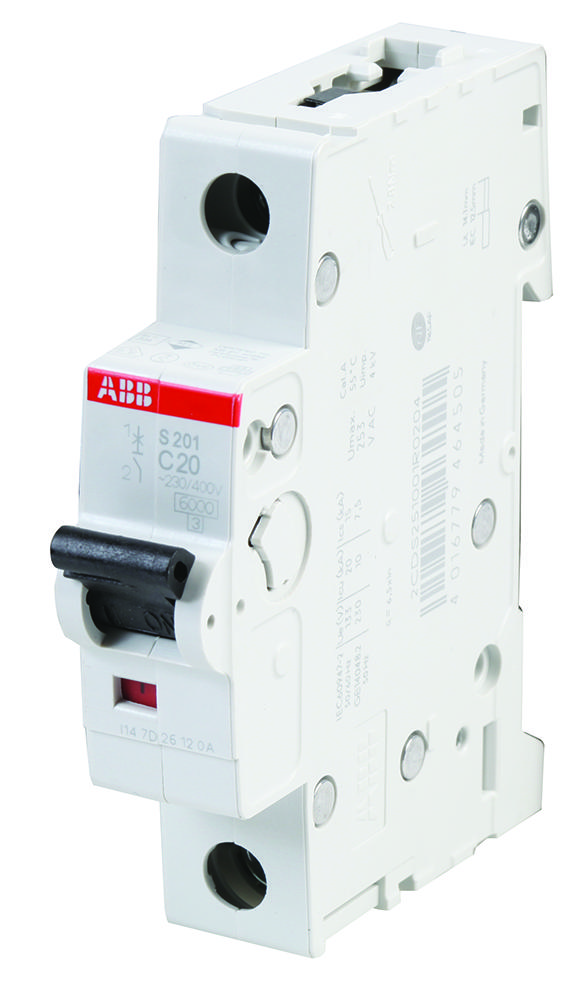

ABB S201C20 Miniature Circuit Breaker
The miniature circuit breaker designed for residential, commercial, and industrial applications offers 1-pole protection with a 20A rated current and C trip characteristic. It features IEC/EN and UL standards compliance, short-circuit capacity up to 6kA, and compact dimensions of 17.5mm width, 88mm height, and 69mm depth. The breaker provides reliable overload and short-circuit protection, with a maximum operational voltage of 253V AC, and includes screw terminals with a tightening torque of 2.8Nm. Its robust housing ensures IP40 protection, making it suitable for DIN rail mounting in various environments.
ABB S201C20 Miniature Circuit Breaker Specifications:
- Number of Poles: 1
- Rated Current (In): 20A
- Tripping Characteristic: C
- Rated Operational Voltage: 230/400 V AC
- Maximum Operating Voltage: 253 V AC
- Rated Short-Circuit Capacity: 6kA at 230/400 V AC
- Rated Impulse Withstand Voltage: 4kV
- Housing Material: RAL 7035, Insulation Group II
- Degree of Protection: IP40
- Contact Position Indication: Red ON/Green OFF
- Mounting Position: Any
- Mounting on DIN Rail: TH35-15 (35 x 15 mm) or TH35-7.5 (35 x 7.5 mm)
- Tightening Torque: 2.8Nm
- Terminal Type: Screw Terminals
- Rated Frequency: 50/60Hz
- Electrical Endurance: 20,000 AC cycles
- Mechanical Endurance: 20,000 cycles
- Operating Temperature: -25°C to +55°C
- Certifications: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
- Classifications: ETIM EC000042, UNSPSC 39121614
Buy the ABB Series S200 Miniature Circuit Breaker: S201C20
Secure your electrical system with the reliable S200 miniature circuit breaker. Designed for accuracy and durability, this 20A breaker provides essential overload and short-circuit protection. Its compact size allows easy DIN rail mounting, making installation straightforward in residential, commercial, or industrial settings. Compliant with IEC and UL standards, it ensures safety and performance. Whether upgrading an existing panel or installing new infrastructure, buy this high-quality breaker online for fast delivery and trusted performance, ensuring your projects are protected with precision and confidence.
Order your ABB Series S200 20A miniature circuit breaker today and give your electrical installations the dependable protection they deserve.
Frequently Asked Questions
Where can I buy ABB S201C20?
You can click on the BUY or RFQ button to purchase S201C20 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S201C20?
You can download the S201C20 datasheet or visit the ABB website for support.
Who is the manufacturer of S201C20?
ABB
