ABB S201MD6 Circuit Breaker
The miniature circuit breaker is a 1-pole D-characteristic model rated at 6A, designed for residential, commercial, and industrial applications. It features a rated voltage of 230/400 V AC, a breaking capacity of up to 10 kA, and complies with IEC/EN standards. The breaker has screw terminals, a compact size with 69mm depth, 88mm height, and 17.5mm width, and offers high electrical and mechanical endurance of 20,000 cycles. It includes a red ON/green OFF indicator, with IP40 protection, suitable for DIN rail mounting in diverse environments.
ABB S201MD6 Circuit Breaker Specifications:
- Poles: 1
- Tripping Characteristic: D
- Rated Current: 6A
- Rated Voltage: 230/400 V AC
- Breaking Capacity: 10 kA at 230/400 V AC
- Rated Insulation Voltage: 440 V
- Rated Frequency: 50/60Hz
- Rated Short-Circuit Capacity: 10 kA (IEC)
- Dimensions: Depth 69 mm, Height 88 mm, Width 17.5 mm
- Weight: 0.125 kg
- Housing Material: Insulation group II, RAL 7035, black, sealable
- Terminal Type: Screw terminals, failsafe bi-directional cylinder-lift
- Connecting Capacity: Busbar 10 / 10 mm², flexible 0.75-25 mm², rigid 0.75-35 mm²
- Tightening Torque: 2 Nm
- Mounting: DIN rail TH35-7.5 or TH35-15
- Protection Degree: IP40
- Compliance: IEC/EN 60898-1, IEC/EN 60947-2
- Endurance: Electrical and mechanical cycles 20,000
- Certificates: CE, RoHS
- Connectivity: Screw terminals, suitable for various conductor types

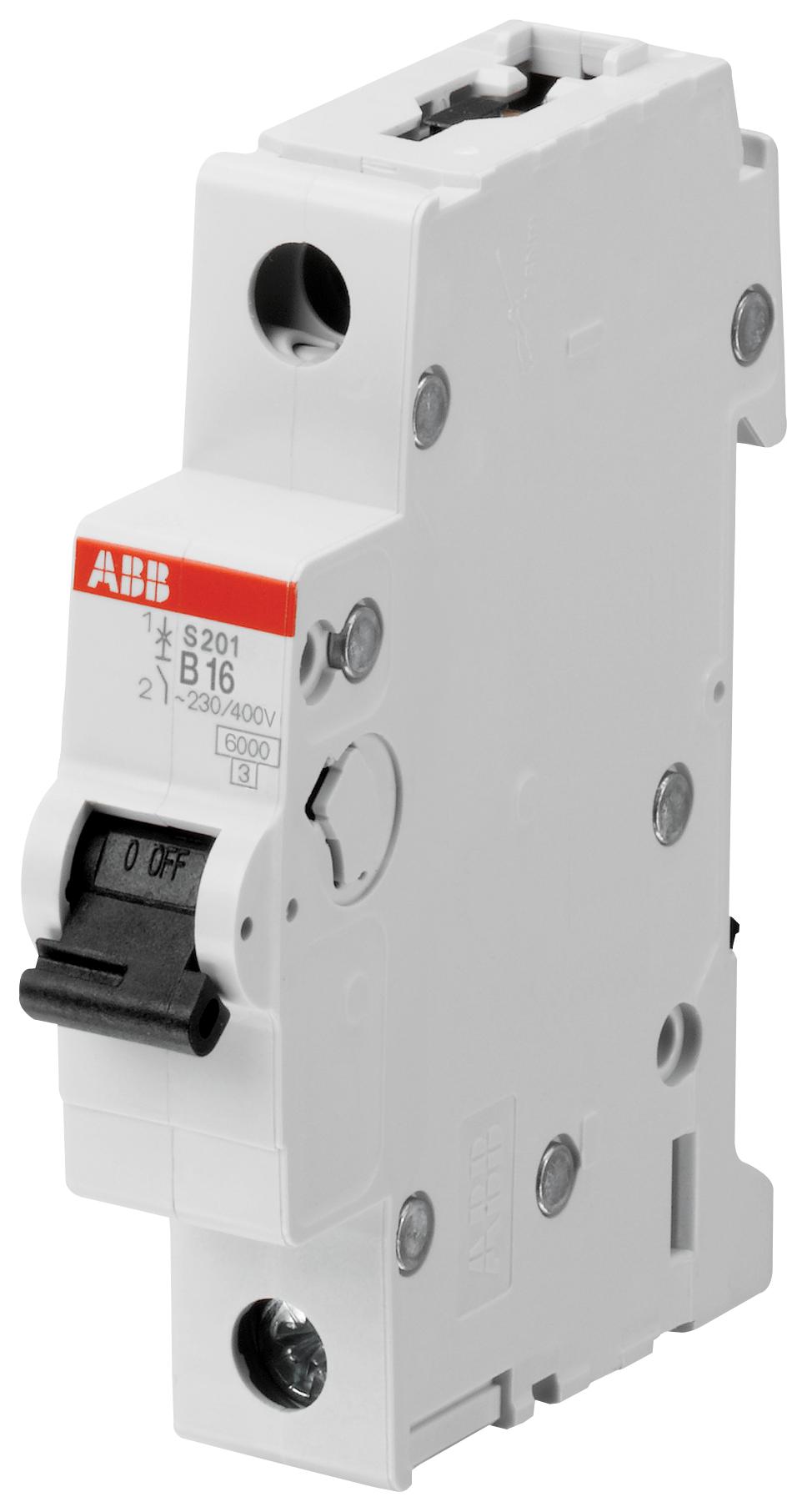

Buy the BrandName S201MD6 – Reliable Circuit Breaker for Industrial Applications
Experience the safety and reliability of this high-quality circuit breaker. Designed for easy installation and long-lasting performance, it offers exceptional protection for electrical systems in residential, commercial, and industrial settings. With high breaking capacity and durable construction, you can trust this device to safeguard your electrical installations. Its compact size and DIN rail mountability make it ideal for space-saving applications without compromising efficiency. Purchase online now to ensure your electrical safety with proven, standards-compliant technology.
Buy BrandName S201MD6 now and experience unmatched reliability and performance in circuit protection.
Frequently Asked Questions
Where can I buy ABB S201MD6?
You can click on the BUY or RFQ button to purchase S201MD6 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S201MD6?
You can download the S201MD6 datasheet or visit the ABB website for support.
Who is the manufacturer of S201MD6?
ABB
