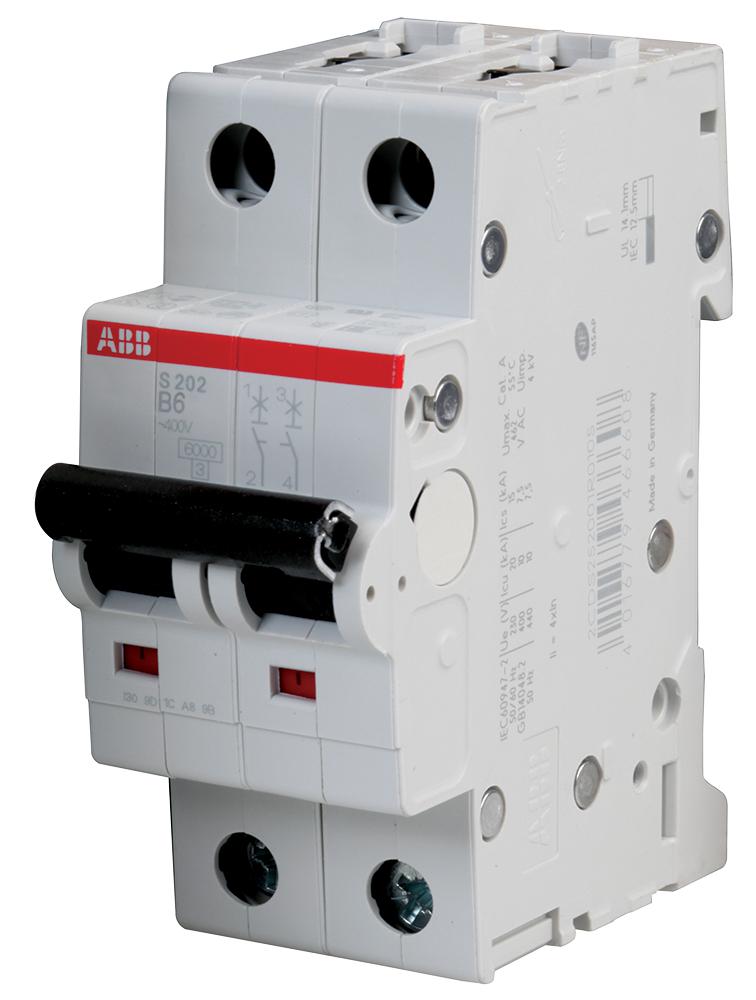

ABB S202B6 Miniature Circuit Breaker
The Miniature Circuit Breaker S200 B-6A provides reliable overcurrent protection for residential, commercial, and industrial settings. It features a 2-pole design with a B-characteristic trip curve and a rated current of 6A. This circuit breaker limits current flow during overloads and short circuits, ensuring safety and compliance with IEC and UL standards. Suitable for DIN rail mounting, it has a breaking capacity of 6 kA at 230/400 V AC. Its compact size and dual tripping mechanisms make it an efficient device for electrical distribution systems.
ABB S202B6 Miniature Circuit Breaker Specifications:
- Number of Poles: 2
- Tripping Characteristic: B
- Rated Current: 6A
- Operational Voltage: up to 400 V AC (IEC), 440 V AC (IEC/EN)
- Rated Short-Circuit Capacity: 6 kA at 230/400 V AC
- Housing Material: RAL 7035, Insulation Group II
- Degree of Protection: IP40 in enclosure with cover
- Dimensions: Depth 69mm, Height 88mm, Width 35mm
- Mechanical Endurance: 20000 cycles
- Electrical Endurance: 20000 AC cycles
- Mounting: Any position, DIN rail (35 x 15 mm or 35 x 7.5 mm)
- Connection: Screw terminals, flexible with ferrule 0.75–25 mm², rigid 0.75–35 mm²
- Tightening Torque: 2.8 Nm
- Certification: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
- RoHS Compliant
Buy the Buy Schneider Electric Miniature Circuit Breaker Part Number S202B6 Online
Secure your electrical setup with the Schneider Electric Miniature Circuit Breaker S200 2-pole B-6A. Designed for durability and safety, this device offers excellent overload and short circuit protection. Its compact DIN rail mount fits seamlessly into residential, commercial, or industrial distribution panels. With a rated capacity of 6 kA, it ensures reliable operation under fault conditions. Easily install with screw terminals, and enjoy long-lasting performance with 20,000 electrical and mechanical cycles. Order online today for quick delivery and trusted quality.
Buy Schneider Electric S202B6 compact circuit breaker now and experience unmatched reliability and performance in overcurrent protection for your electrical system.
Frequently Asked Questions
Where can I buy ABB S202B6?
You can click on the BUY or RFQ button to purchase S202B6 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S202B6?
You can download the S202B6 datasheet or visit the ABB website for support.
Who is the manufacturer of S202B6?
ABB
