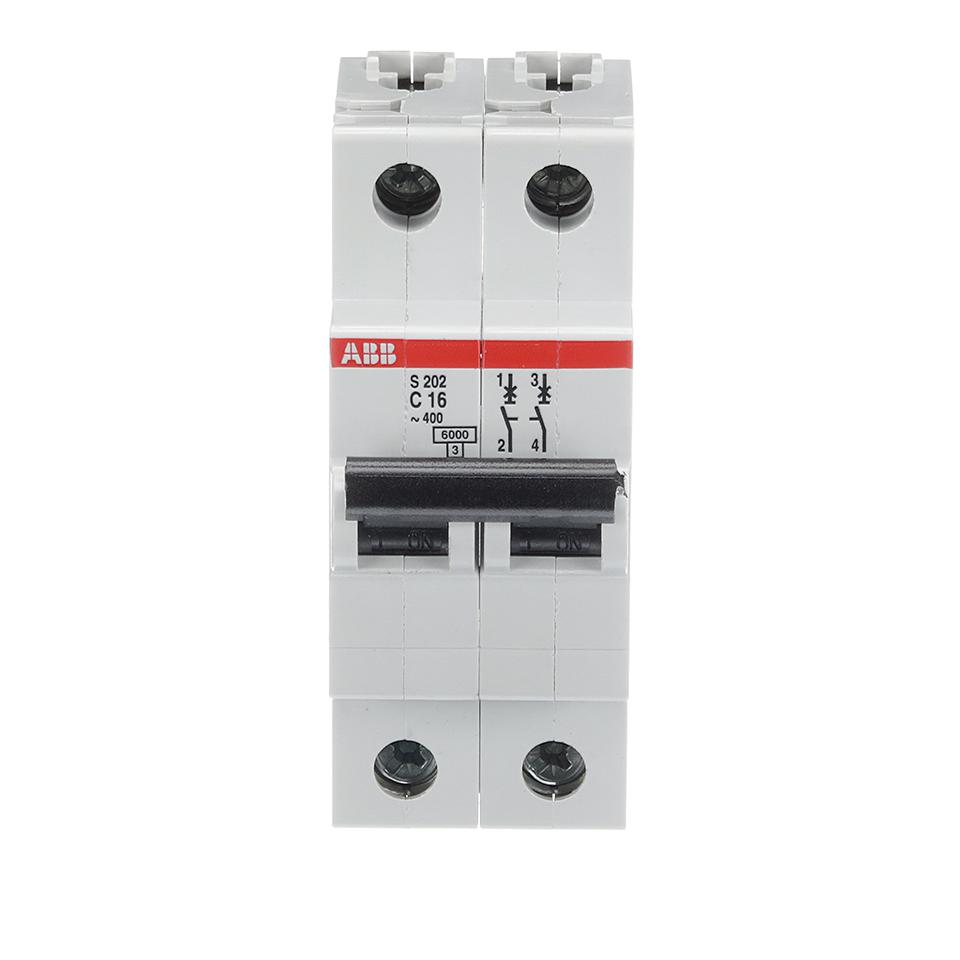

ABB S202C16 Miniature Circuit Breaker
The miniature circuit breaker is a system pro M compact S200 type with 2 poles and a rated current of 16A. Designed for residential, commercial, and industrial applications, it features current-limiting properties and dual tripping mechanisms—delayed thermal for overload protection and electromechanical for short circuits. It has a breaking capacity of up to 6 kA at 230/400 V AC, complies with IEC/EN standards, and includes optional space-saving auxiliary contacts. The device supports flexible mounting positions on DIN rails and offers reliable overload and short circuit protection in various installation environments.
ABB S202C16 Miniature Circuit Breaker Specifications:
- Number of Poles: 2
- Rated Current (In): 16A
- Rated Operational Voltage: 400 V AC (IEC 60898-1), 440 V AC (IEC 60947-2)
- Rated Short-Circuit Capacity: 6 kA (UL), 20 kA (IEC)
- Rated Ultimate Short-Circuit Breaking Capacity: 20 kA at 230 V AC, 15 kA at 400 V AC
- Rated Service Short-Circuit Breaking Capacity: 15 kA at 230 V AC, 6 kA at 400 V AC
- Rated Frequency: 50/60 Hz
- Energy Limiting Class: 3
- Overvoltage Category: III
- Pollution Degree: 3
- Dielectric Test Voltage: 2 kV (1 min)
- Housing Material: Insulation Group II, RAL 7035
- Degree of Protection: IP40 in enclosure with cover
- Mechanical Endurance: 20,000 cycles
- Electrical Endurance: 20,000 cycles
- Terminal Type: Screw Terminal
- Connecting Capacity: Stranded or rigid wire, 0.75 – 35 mm²
- Tightening Torque: 2.8 Nm
- Mounting: DIN Rail TH35-15 or TH35-7.5
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
- Certifications: CE, UL Listed, CSA Certified
Buy the General Electric S202C16 – Reliable Circuit Breaker for Industrial Applications
Secure reliable electrical protection with the General Electric miniature circuit breaker designed for residential, commercial, and industrial use. Featuring a 16A rated current and high short-circuit capacity, it ensures safety and durability under various operational conditions. The device is easy to install on DIN rails, complies with international standards, and offers dual tripping mechanisms—thermal and electromagnetic—providing comprehensive overload and short circuit protection. Perfect for modern electrical systems, this circuit breaker guarantees long-term performance and safety in your applications.
Get General Electric S202C16 today—built for precision and long-lasting durability in industrial and residential protection systems.
Frequently Asked Questions
Where can I buy ABB S202C16?
You can click on the BUY or RFQ button to purchase S202C16 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S202C16?
You can download the S202C16 datasheet or visit the ABB website for support.
Who is the manufacturer of S202C16?
ABB
