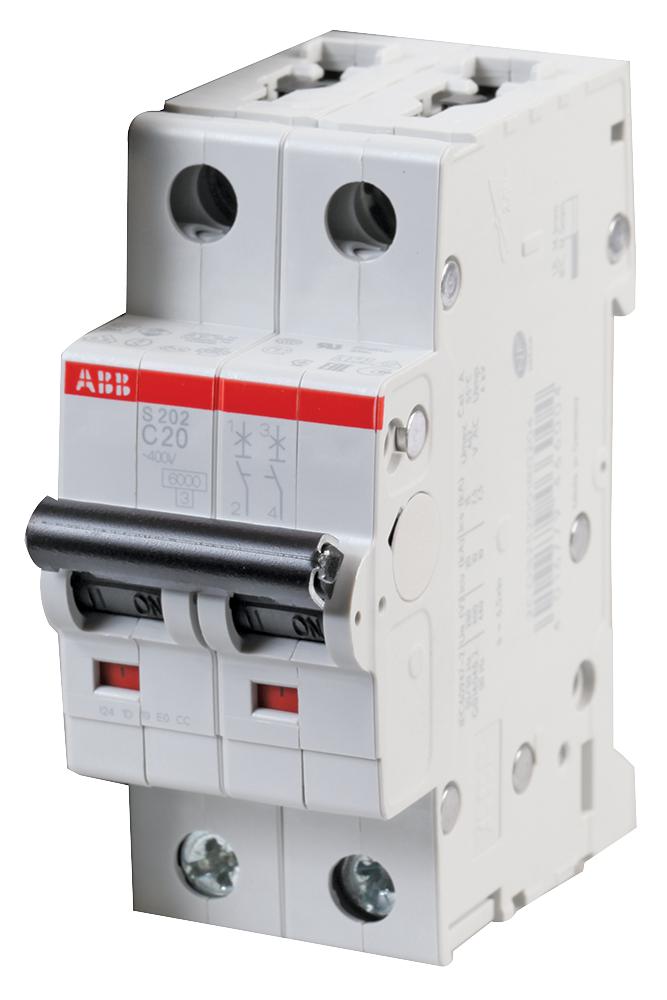

ABB S202C20 Miniature Circuit Breaker
The miniature circuit breaker S202C20 is a 2-pole device rated for 20A with a C trip characteristic, suitable for residential, commercial, and industrial applications. It features a compact design with a protection capacity of up to 6 kA at 230/400 V AC, and complies with IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, and CSA standards. The breaker offers high electrical and mechanical endurance (20,000 cycles each), a degree of protection IP40, screw terminals, and mounting on standard DIN rails. Its overcurrent and short-circuit protection mechanisms ensure reliable system safety, with an insulation voltage of 440 V AC and rated impulse withstand voltage of 4 kV. Suitable for use in low-voltage electrical systems, it provides efficient overload and short circuit protection, with precise tripping and high durability for reliable long-term operation.
ABB S202C20 Miniature Circuit Breaker Specifications:
- Number of Poles: 2
- Rated Current (In): 20A
- Tripping Characteristic: Cc
- Rated Voltage: 400 V AC (IEC), 440 V AC (UL/CSA)
- Rated Short-Circuit Capacity: 6 kA (IEC), 20 kA (UL), 15 kA (rated service)
- Number of cycles: Electrical Endurance 20,000, Mechanical Endurance 20,000
- Degree of Protection: IP40
- Housing Material: Insulation Group II, RAL 7035
- Terminal Type: Screw Terminals, Fail-safe Bi-directional Cylinder-lift
- Connecting Capacity: Busbar 10 mm², Flexible/Stranded 0.75-25 mm², Rigid 0.75-35 mm²
- Tightening Torque: 2.8 Nm
- Mounting: DIN Rail TH35-15 or TH35-7.5
- Operating Temperature: -25°C to +55°C
- Dielectric Test Voltage: 2 kV
- Rated Impulse Withstand Voltage: 4 kV
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235
- Protection Level: IP40 in enclosure
- Compliance: RoHS
Buy the Schneider Series S200 Miniature Circuit Breaker: S202C20
Purchase the Schneider S202C20 miniature circuit breaker online today to ensure reliable overload and short-circuit protection for your electrical system. Designed with a compact form factor and high durability, this 2-pole breaker offers excellent performance for residential, commercial, and industrial applications. It features a rated current of 20A, a short-circuit capacity up to 6 kA at 230/400 V AC, and complies with international safety standards such as IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, and CSA. Easy to install on standard DIN rails, it provides long-lasting safety, high endurance, and dependable operation for all your electrical protection needs.
Get Schneider S202C20 today—built for precision and long-lasting durability in electrical protection systems.
Frequently Asked Questions
Where can I buy ABB S202C20?
You can click on the BUY or RFQ button to purchase S202C20 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S202C20?
You can download the S202C20 datasheet or visit the ABB website for support.
Who is the manufacturer of S202C20?
ABB
