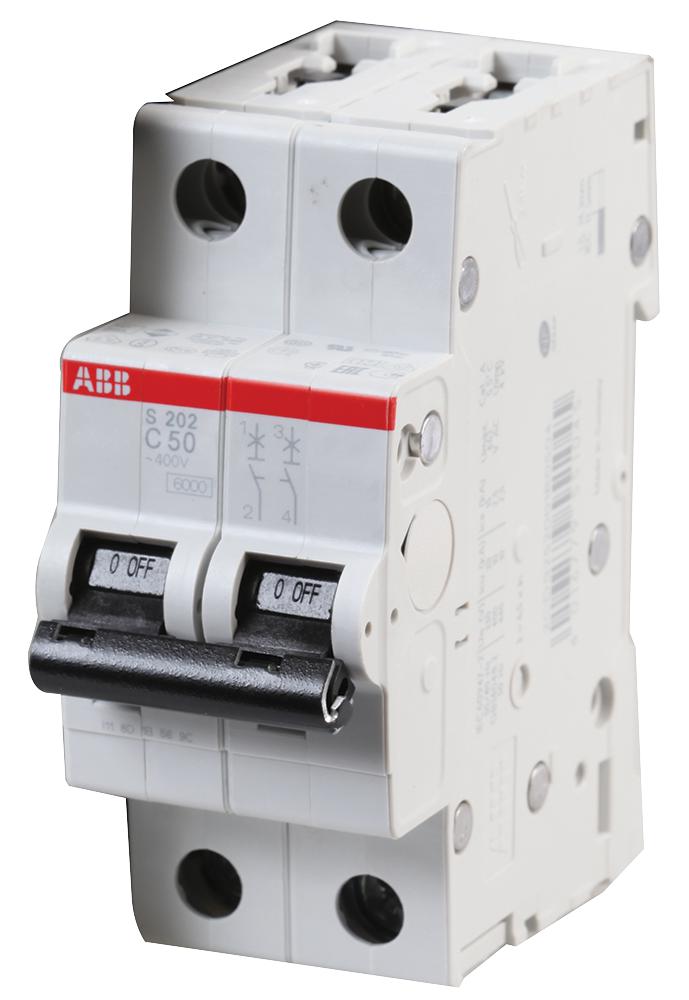

ABB S202C50 Miniature Circuit Breaker
The miniature circuit breaker S200 series with a 50A rating provides reliable overload and short circuit protection. It features a C trip characteristic, 2 poles, and a breaking capacity of up to 6 kA at 230/400 V AC. Designed for residential, commercial, and industrial use, it meets IEC/EN and UL standards. Its compact design allows for DIN rail mounting, with a rated operational voltage of up to 440 V AC, and features quick installation with screw terminals, making it suitable for various electrical installations requiring current limiting and safety.
ABB S202C50 Miniature Circuit Breaker Specifications:
- Number of Poles: 2
- Rated Current (In): 50A
- Tripping Characteristic: C
- Rated Insulation Voltage (Uj): 440 V AC
- Operational Voltage: up to 440 V AC
- Maximum Short-Circuit Capacity (Icn): 6 kA at 230/400 V AC
- Rated Frequency: 50/60Hz
- Rated Service Short-Circuit Breaking Capacity (Ics): 15 kA at 230 V, 20 kA at 400 V
- Energy Limiting Class: Class 3
- Degree of Protection: IP40 in enclosure
- Housing Material: RAL 7035, insulating plastic
- Housing Dimensions: 69mm depth, 88mm height, 35mm width
- Electrical Endurance: 10,000 cycles
- Mechanical Endurance: 20,000 cycles
- Terminal Type: Screw terminals, flexible and rigid conductor capacity 0.75-25mm²
- Tightening Torque: 2.8 Nm
- Mounting: DIN rail TH35-15 or TH35-7.5
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
- Certifications: CE, UL listed
Buy the ABB Series S200 Circuit Breaker: 50A 2P C-Characteristic
Upgrade your electrical safety system with this robust 2-pole miniature circuit breaker rated at 50 amps. Designed for residential, commercial, and industrial applications, it offers superior protection against overloads and short circuits. With a compact DIN rail mounting design, it features a C trip characteristic and a breaking capacity of up to 6 kA at 230/400 V AC. Easy to install with screw terminals, this breaker complies with international standards, ensuring durability, safety, and optimal performance in your electrical installations.
Buy ABB Series S200 50A 2-Pole C-Trip Circuit Breaker now and experience unmatched reliability and performance for your electrical safety needs.
Frequently Asked Questions
Where can I buy ABB S202C50?
You can click on the BUY or RFQ button to purchase S202C50 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S202C50?
You can download the S202C50 datasheet or visit the ABB website for support.
Who is the manufacturer of S202C50?
ABB
