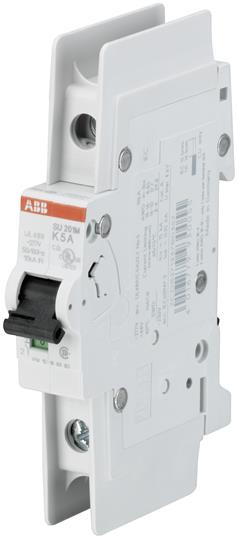

ABB SU201MK8 Miniature Circuit Breaker
The ABB SU201M-K8 is a compact miniature circuit breaker rated for 8 amps suitable for 1-phase circuits. It adheres to UL 489 standards and features a K-trip curve for selective tripping. The device provides dependable overcurrent protection with a maximum interrupting capacity of 10,000 amperes at 480Y/277V, making it ideal for reliable electrical system safety. Its robust thermoplastic housing offers durability, while the red/green contact position indication ensures ease of operation and troubleshooting in industrial and commercial electrical installations.
ABB SU201MK8 Miniature Circuit Breaker Specifications:
- Poles: 1P
- Rated current: 8A
- Rated voltage: 480Y/277V AC, 48V DC
- Max interrupting capacity: 10,000A at 480Y/277V AC
- Trip curve: K-characteristic
- Standards: UL 489, CSA 22.2 No. 5, IEC/EN 60947-2
- Protection degree: IP20, IP40 in enclosure with cover
- Mechanical endurance: 20,000 operations
- Electrical endurance: 6,000 operations AC/DC
- Operating temperature: -25°C to +55°C (derating applies above 40°C)
- Installation: DIN rail mounting
- Dimensions: Approx. 88 x 69 x 175 mm
- Weight: Approx. 115 g
Buy the Buy ABB SU201M-K8 Part Number SU201MK8 Online
Purchase the ABB SU201M-K8 circuit breaker online today to achieve dependable overcurrent protection for your electrical systems. This compact device is UL 489 compliant, features a K-trip curve for selective tripping, and provides a maximum interrupting capacity of 10,000A at 480Y/277V. Its durable thermoplastic housing ensures long-term reliability in demanding environments. Easy installation on DIN rails and clear contact position indication make it ideal for industrial applications. Order now to secure quality and safety for your electrical projects.
Order your ABB Series SU201M-K8 circuit breaker today and ensure reliable overcurrent protection for your electrical installations with durable and easy-to-maintain design.
