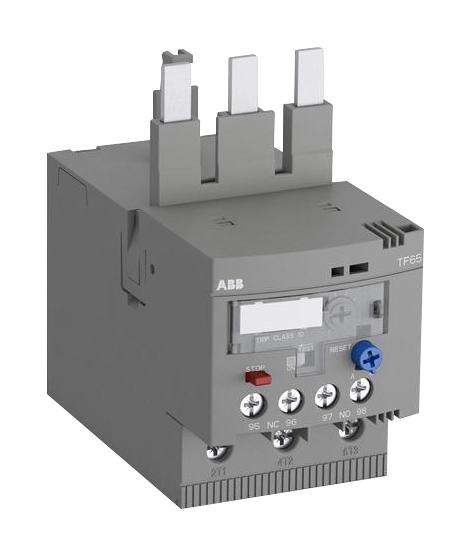

ABB TF6547 Thermal Overload Relay
The TF65-47 thermal overload relay is an economical electromechanical device designed for motor protection in industrial control panels. It offers reliable, fast overload and phase failure protection with trip class 10, temperature compensation, trip and signal contacts, adjustable reset options, trip-free mechanism, and trip indication. It directly connects to contactors, ensuring efficient motor circuit protection. Suitable for low voltage applications, it is constructed with high-quality materials and features IP20 housing, supporting versatile mounting and connection options for robust industrial operation.
ABB TF6547 Thermal Overload Relay Specifications:
- Rated Operational Voltage: AC/DC 600 V
- Rated Operational Current: 47A
- Rated Frequency: 50/60 Hz
- Ambient Temperature Range: -25°C to +60°C (operation), -50°C to +80°C (storage)
- Housing: IP20
- Rated Insulation Voltage: 690 V
- Number of Auxiliary Contacts: 2 NC, 2 NO
- Connection Capacity Main Circuit: 35-40 in 'Ib
- Connection Capacity Auxiliary Circuit: 9-11 in 'Ib
- Tightening Torque: 4.0 - 4.5 Nm
- Base Mounting Position: Vertical
- Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1
- Protection Degree: IP20
- Wire Connection: Flexible with ferules, stranded, and rigid options from 12-2 AWG up to 18-12 AWG
- Environmental Resistance: Shock (25g, 11ms), Vibration (25-150Hz), RoHS Compliant
Buy the IndustrialRelays TF65-47 Reliable Motor Protection for Industrial Applications
Secure your motor control systems with the TF65-47 thermal overload relay. Designed for durability and precision, it provides fast overload and phase failure protection, adjustable trip class, temperature compensation, and clear trip indication. Its IP20 housing and versatile connection options make it perfect for varied industrial environments. Easy to install and maintain, this relay ensures reliable operation and safety for your electrical motor circuits. Buy online today and enhance your system’s dependability with this high-quality device.
Buy TF65-47 thermal overload relay now and ensure reliable motor protection with adjustable trip settings and robust construction for industrial use.
Frequently Asked Questions
Where can I buy ABB TF6547?
You can click on the BUY or RFQ button to purchase TF6547 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part TF6547?
You can download the TF6547 datasheet or visit the ABB website for support.
Who is the manufacturer of TF6547?
ABB
