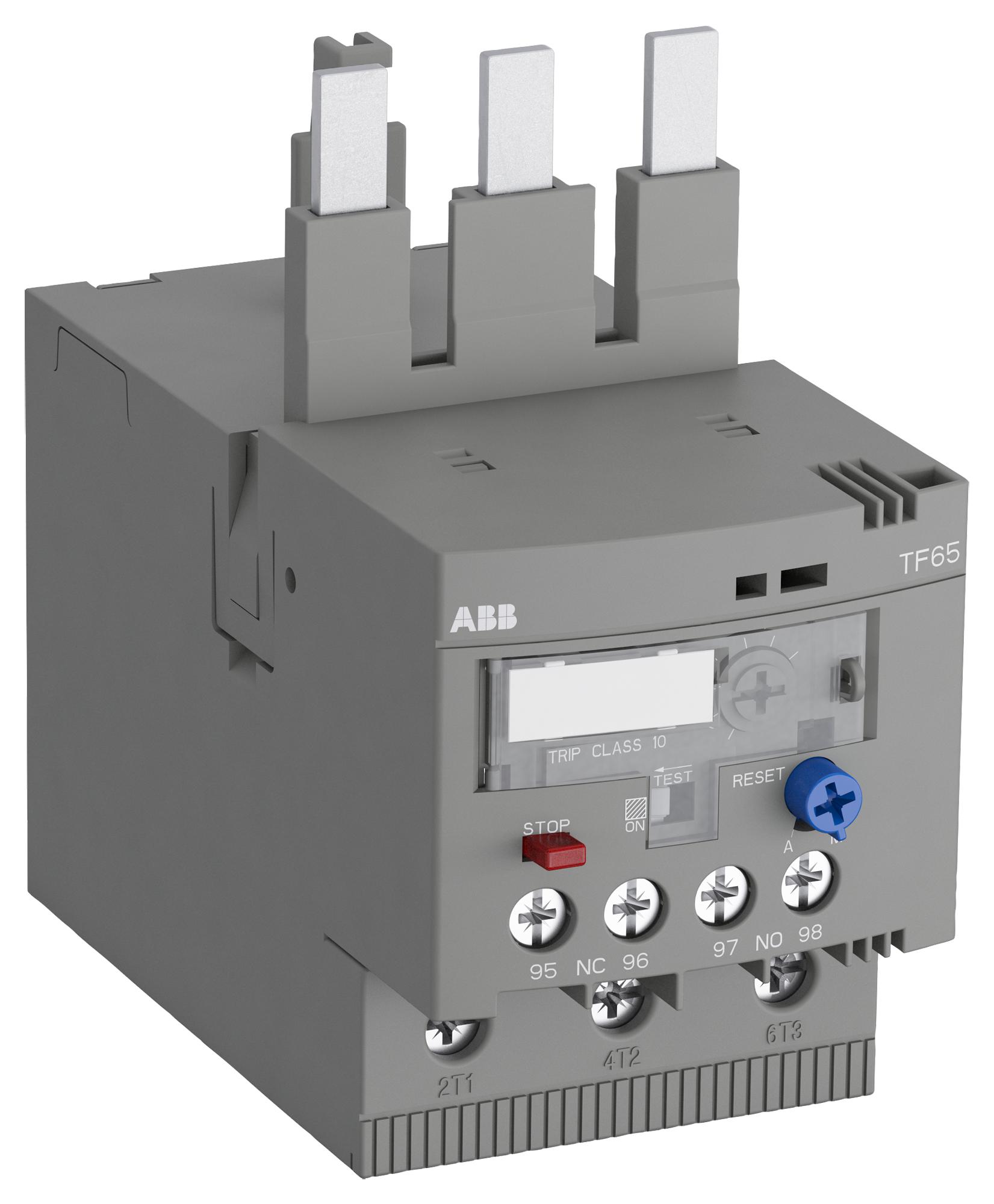

ABB TF6553 Thermal Overload Relay
The TF65-53 thermal overload relay is an economical electromechanical device designed to protect motors against overload and phase failure, ensuring reliable operation. It features trip class 10, temperature compensation, NC trip contact, NO signal contact, and offers manual or automatic reset options. The relay includes a trip indicator, trip-free mechanism, STOP function, and connects directly to block contactors. Suitable for low voltage control systems, this relay offers robust protection for industrial motor circuits, with a compact design and conformity to industry standards, ensuring efficient motor protection in automation applications.
ABB TF6553 Thermal Overload Relay Specifications:
- Rated Operational Voltage: 680 V AC/DC
- Rated Operational Current: 53A
- Rated Frequency: 50/60 Hz
- Rated Insulation Voltage: 690 V
- Body Housing: IP20
- Main Circuit Terminals: P10
- Auxiliary Circuit: 600 V AC/DC
- Number of Auxiliary Contacts: 1 NO, 1 NC
- Connection Capacity Main Circuit: 35 to 40 in·lb (4.0 to 4.5 Nm)
- Connection Capacity Auxiliary Circuit: 9 to 11 in·lb (1.2 Nm)
- Maximum Operating Voltage UL/CSA: 600 V AC/DC
- Environmental: Operating temperature -25°C to +60°C, storage -50°C to +80°C
- Protection Degree: IP20
- Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1
- Rated Impulse Withstand Voltage (imp): 6 kV
- Pollution Degree: 3
- Max Operating Altitude: 2000m
- Resistance to shock: IEC 60068-2-27
- Resistance to vibrations: IEC 60068-2-6
- RoHS Compliant: Yes
Buy the IndustrialControl Co TF65-53 Reliable Thermal Overload Relay for Industrial Applications
Order the IndustrialControl Co TF65-53 thermal overload relay online today to protect your motors efficiently. This relay offers fast, reliable overload protection with adjustable features, suitable for low voltage control circuits. With trip class 10, temperature compensation, and easy connection to contactors, it guarantees safe operation in industrial environments. Improve system reliability by purchasing this certified relay now, ensuring optimal performance, safety standards compliance, and effortless integration into control panels with its compact design and robust construction.
Buy IndustrialControl Co TF65-53 now and ensure precise motor protection with reliable overload and phase failure detection capabilities.
Frequently Asked Questions
Where can I buy ABB TF6553?
You can click on the BUY or RFQ button to purchase TF6553 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part TF6553?
You can download the TF6553 datasheet or visit the ABB website for support.
Who is the manufacturer of TF6553?
ABB
