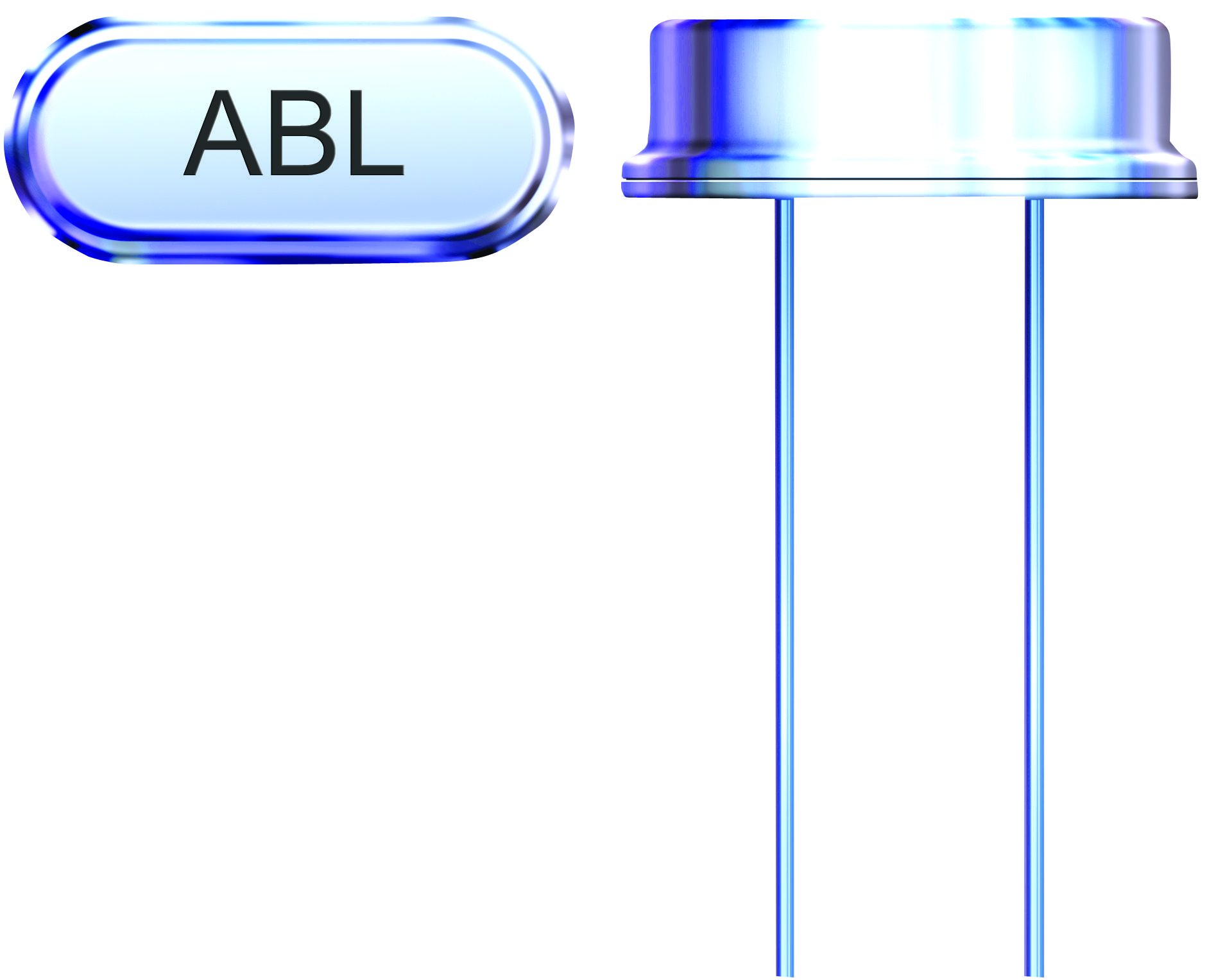

ABRACON ABL8000MHZB2 Microprocessor Crystal
The ABL-8.000MHz-B2 is a hermetically sealed microprocessor crystal measuring 11.5 x 5 x 3.5 mm. It features a load capacitance of 18 pF, through-hole mounting capability, and is not sensitive to moisture. Designed for high stability and extended temperature ranges, it comes in a resistance-welded metal package. Its specifications include an aging rate of ±5 ppm per year (maximum), insulation resistance of 500 MΩ, and it operates in the AT-cut fundamental mode. Suitable for use in consumer electronics, communications and networking, clock and timing applications, and computer peripherals.
ABRACON ABL8000MHZB2 Microprocessor Crystal Specifications:
- Package Size: 11.5 x 5 x 3.5 mm
- Type: Hermetically sealed crystal
- Frequency: 8.000 MHz
- Mode: AT-cut fundamental
- Load Capacitance: 18 pF
- Operating Temperature Range: -40°C to +105°C
- Storage Temperature Range: -55°C to +125°C
- Aging Rate: ±5 ppm per year (max)
- Insulation Resistance: 500 MΩ @ 100VDC
- Mounting: Through-hole
- Material: Resistance-welded metal package
- Features: High stability, moisture insensitivity, extended temperature range
Buy the ABRACON 8.000MHz-B2 – Reliable Microprocessor Crystal for Industrial Applications
Purchase the ABRACON 8.000MHz-B2 microprocessor crystal online today and enjoy superior stability, durability, and accuracy for your electronic, communication, and timing applications. Its hermetically sealed design ensures moisture resistance, making it ideal for high-reliability environments, including industrial and consumer electronics. With a compact size of 11.5 x 5 x 3.5 mm and a load capacitance of 18 pF, this crystal delivers consistent, precise oscillations across extended temperature ranges. Trust ABRACON for quality components that meet rigorous standards and enhance your product performance.
Buy ABRACON 8.000MHz-B2 now and experience unmatched reliability and performance in clock and timing solutions for your electronics projects.
