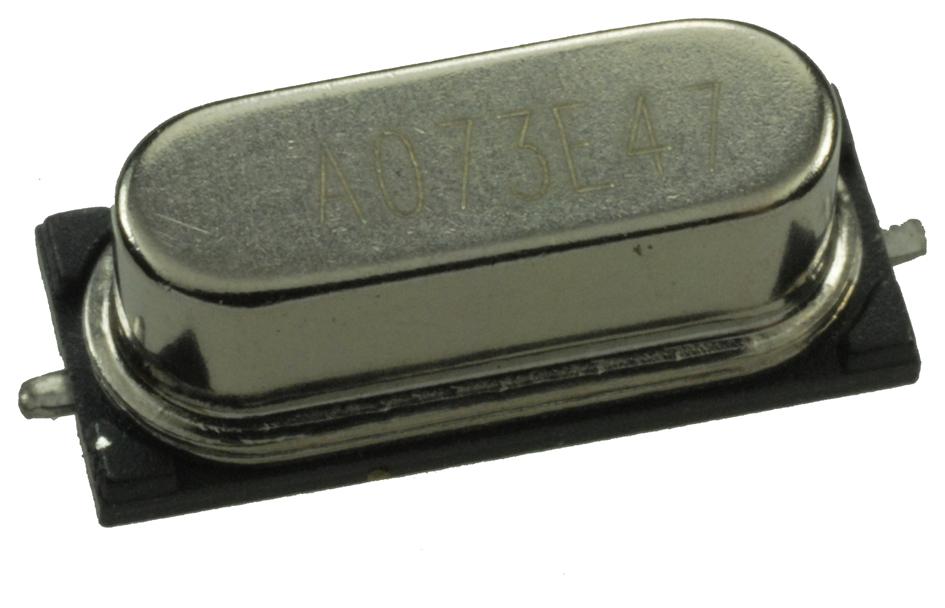

ABRACON ABLS10000MHZ20B3HT Low Profile Crystal
This component is used for clock and timing applications, providing stable frequency signals for electronic circuits and systems. It features excellent frequency stability, low phase noise, and RoHS compliance, making it suitable for wireless, computer, and microprocessor applications. Designed for precise oscillation with operation modes suitable for fundamental or overtone modes, it supports a wide frequency range from 3.579545 MHz to 75 MHz. Its hermetically sealed and low profile SMD design ensures reliable performance in a compact form factor, ideal for modern electronic devices.
ABRACON ABLS10000MHZ20B3HT Low Profile Crystal Specifications:
- Frequency Range: 3.579545 MHz to 75 MHz
- Operation Modes: AT cut (Fundamental or 3rd OT), BT cut
- Frequency Stability at +25°C: ±50 ppm max
- Operating Temperature: 0°C to +70°C (standard), -55°C to +125°C (extended options)
- Frequency Tolerance: ±50 ppm at +25°C
- Equivalent Series Resistance: as per standard ESR table
- Shunt Capacitance: 18 pF max
- Drive Level: 1 mW max, typical 100 µW
- Insulation Resistance: 500 MΩ min at 100 Vdc
- Size: 15 x 4.7 x 4.2 mm; low profile, SMD reflow compatible
Buy the Buy Abracon Low Profile Crystal Part Number ABLS10000MHZ20B3HT Online
Enhance your electronic designs with this high-quality low profile crystal from Abracon, providing stable frequency signals essential for clock generation and timing accuracy. Ideal for wireless, computing, and embedded systems, it features RoHS compliance and a robust SMD design for easy integration. Perfect for applications demanding reliable oscillation over a wide temperature range, this crystal ensures precise frequency stability and low phase noise. Purchase online today and secure a dependable component for your advanced electronic projects.
Order your Abracon Series ABLS10000MHZ20B3HT crystal today and ensure precise timing for your high-performance electronic projects.
Frequently Asked Questions
Where can I buy ABRACON ABLS10000MHZ20B3HT?
You can click on the BUY or RFQ button to purchase ABLS10000MHZ20B3HT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLS10000MHZ20B3HT?
You can download the ABLS10000MHZ20B3HT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLS10000MHZ20B3HT?
ABRACON
