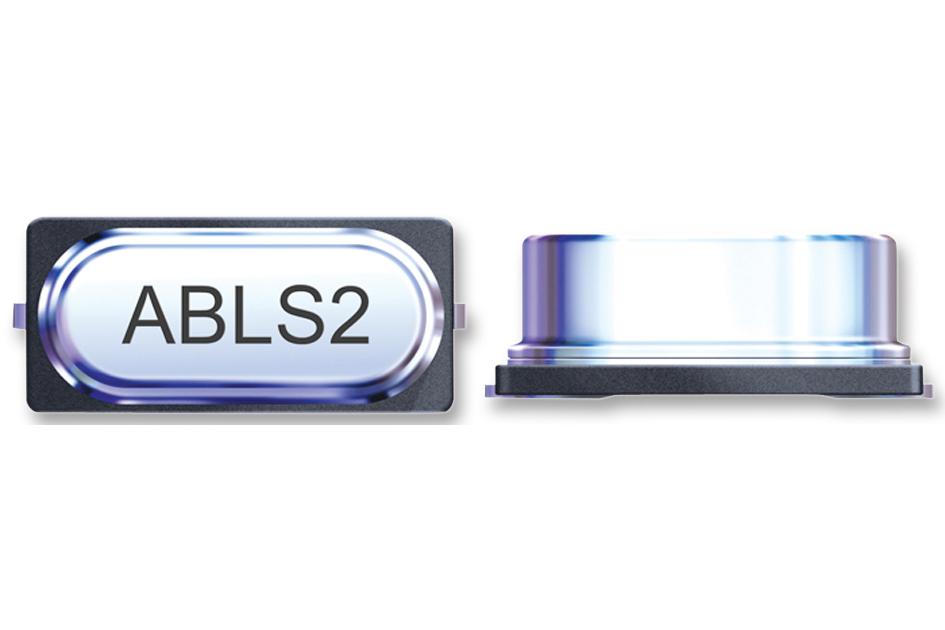

ABRACON ABLS216384MHZD4YT Low Profile Microprocessor Crystal
The ABRACON ABLS2-16.384MHZ-D4Y-T is a low-profile surface mount crystal oscillator specifically engineered for demanding applications requiring precise frequency control. Its compact design (11.4 x 4.7 x 3.3 mm) makes it ideal for space-constrained devices like microprocessors, modems, and wireless communication systems. The crystal offers tight stability over an extended temperature range, ensuring consistent performance in varying environmental conditions. It is RoHS compliant and suitable for use in thin equipment designs. ABRACON provides options for frequency, load capacitance, and operating temperature to meet specific application requirements. Contact ABRACON for custom specifications and availability.
ABRACON ABLS216384MHZD4YT Low Profile Microprocessor Crystal Specifications:
- Frequency Range: 3.579545 - 70.00 MHz
- Operation Mode: Fundamental or 3rd Overtone
- Operating Temperature: 0 to +70 ºC
- Storage Temperature: -55 to +125 ºC
- Frequency Tolerance: -50 to +50 ppm @ +25°C
- Frequency Stability: -50 to +50 ppm over operating temperature
- Equivalent Series Resistance (ESR): See Table 1
- Shunt Capacitance (C0): Up to 7 pF
- Load Capacitance (CL): 18 pF (Standard)
- Drive Level: 100 - 1000 µW
- Aging: -5 to +5 ppm @25°C
- Insulation Resistance: 500 MΩ @100Vdc
- Drive Level Dependency (DLD): ≤ ±10ppm frequency change, ≤ 25% ESR change
- Moisture Sensitivity Level (MSL): N/A (Hermetically Sealed)
- Dimensions: 11.4 x 4.7 x 3.3 mm
- Packaging: Bulk or Tape & Reel (1000pcs/reel)
Buy the ABLS2-16.384MHZ-D4Y-T ABRACON Low Profile Microprocessor Crystal | myMectronic
Purchase the ABRACON ABLS2-16.384MHZ-D4Y-T crystal oscillator securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy ABRACON ABLS216384MHZD4YT?
You can click on the BUY or RFQ button to purchase ABLS216384MHZD4YT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLS216384MHZD4YT?
You can download the ABLS216384MHZD4YT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLS216384MHZD4YT?
ABRACON
