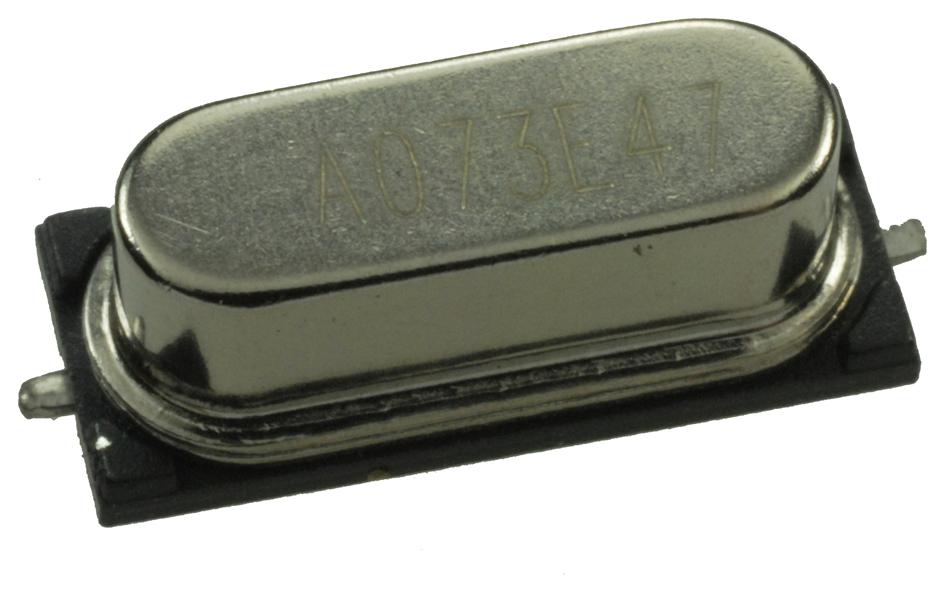

ABRACON ABLS24000MHZ20B3HT Low Profile Crystal
This low-profile SMD crystal features a frequency range of 3.579545 MHz to 75 MHz, suitable for clock and timing applications. It offers excellent frequency stability, RoHS compliance, and a hermetically sealed design with moisture insensitivity. Its compact form factor, detailed in dimensions of 15 x 4.7 x 4.2 mm, ensures easy integration into electronic devices like computers, modems, and wireless systems. Designed for reliable operation over a temperature range from -55°C to +125°C, it boasts low aging, high insulation resistance, and minimal spurious responses, making it ideal for a wide variety of electronic timing circuits.
ABRACON ABLS24000MHZ20B3HT Low Profile Crystal Specifications:
- Frequency Range: 3.579545 MHz to 75 MHz
- Operation Modes: AT cut (fundamental or 3rd overtone), BT cut (see options)
- Frequency Tolerance at +25°C: ±50 ppm max.
- Frequency Stability over Temperature: ±50 ppm max. (+25°C to +70°C; see options for extended ranges)
- Operating Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +125°C
- Load Capacitance: 1 pF (see options)
- Equivalent Series Resistance: as per standard ESR table
- Drive Level: 1 mW max., typical 100 µW
- Insulation Resistance: ≥ 500 MΩ at 100 VDC
- Aging: ±5 ppm max. in first year
- Moisture Sensitivity Level: N/A (hermetically sealed, non-Moisture Sensitive)
- Materials: RoHS compliant, suitable for reflow, hermetically sealed design
- Dimensions: 15.0 x 4.7 x 4.2 mm, with recommended land pattern for surface mounting
- Reflow Profile: 60–120 seconds at +260°C ±5°C
Buy the Abracon Series ABLS 3.579545 MHz to 75 MHz Crystal: ABLS24000MHZ20B3HT
Discover the high-quality, hermetically sealed low-profile crystal that guarantees precise timing for your electronic projects. This RoHS-compliant component covers a frequency range from 3.579545 MHz to 75 MHz, ideal for clocks, modems, and wireless devices. Its compact size of 15 x 4.7 x 4.2 mm ensures easy surface-mount installation. Designed for reliable operation across wide temperature ranges up to +125°C, it features low aging, high insulation resistance, and minimal spurious responses. Buy online now for consistent, accurate timing performance in your electronic systems.
Order your Abracon Series ABLS 3.579545 MHz to 75 MHz crystal today and give your timing circuits the dependable frequency stability they deserve.
Frequently Asked Questions
Where can I buy ABRACON ABLS24000MHZ20B3HT?
You can click on the BUY or RFQ button to purchase ABLS24000MHZ20B3HT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLS24000MHZ20B3HT?
You can download the ABLS24000MHZ20B3HT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLS24000MHZ20B3HT?
ABRACON
