ABRACON ABM1016712000MHZT3 Quartz Crystal
This low-profile quartz crystal is tailored for IoT and wearable device applications, offering ultra-low power consumption and a compact 2.5x2.0x0.5 mm size. It guarantees a low 125Q ESR for reliable operation in power-sensitive solutions. Designed to operate within -40°C to 85°C, it is hermetically sealed for enhanced long-term reliability. Suitable for wireless modules, Bluetooth/BLE, and M2M connectivity, this crystal ensures precise frequency stability with a 12.000 MHz fundamental operation mode and excellent aging performance, making it ideal for IoT and industrial applications.
ABRACON ABM1016712000MHZT3 Quartz Crystal Specifications:
- Frequency: 12.000 MHz
- Operation Mode: Fundamental
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -40°C to 125°C
- Frequency Tolerance at 25°C: -10 to +10 ppm
- Frequency Tolerance over Temperature: ±30 ppm
- Equivalent Series Resistance: 125 Q
- Shunt Capacitance: 2 pF
- Load Capacitance: 8 pF
- Drive Level: 10 to 100 µW
- Aging at 25°C +3°C: 43 ppm first year
- Insulation Resistance: 500 MQ @ 100V and 15V
- RoHS/RoHS II Compliant
- Size: 2.5 x 2.0 x 0.5 mm
- Hermetically Sealed, not moisture sensitive
- Reflow Soldering Profile: Preheat 23-25°C, Reflow 60 sec, Peak 10 sec
- Packaging: T3 reel, 3000 pcs per reel

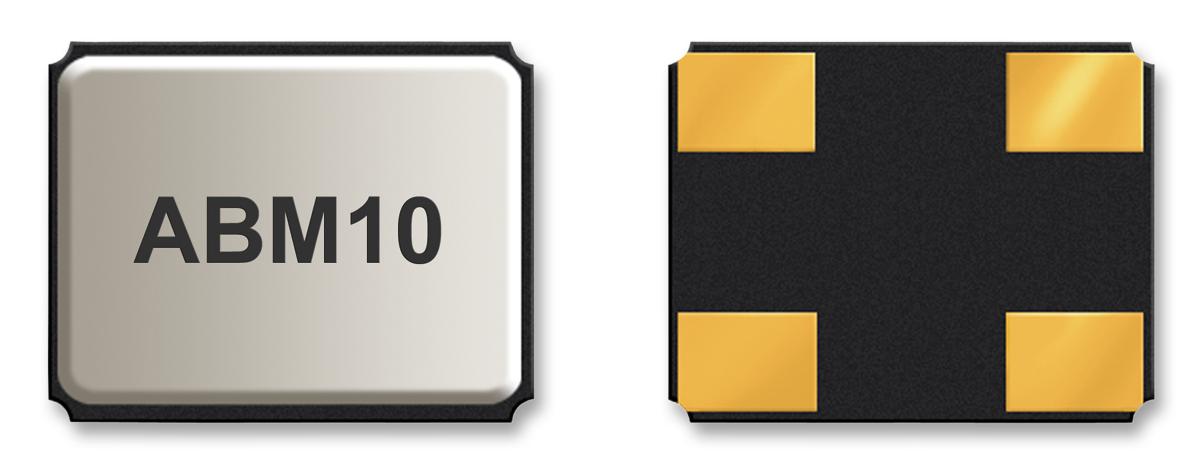

Buy the Buy Abracon Low Profile Quartz Crystal Part Number ABM10-167-12.000MHz Online
Purchase the Abracon Quartz Crystal for IoT, wearables, and wireless modules online today. This ultra-low power, compact crystal offers high frequency stability at 12 MHz, operating reliably from -40°C to 85°C. Hermetically sealed for long-term durability, it features a minimal footprint of 2.5x2.0x0.5 mm, making it ideal for space-constrained designs. Perfect for Bluetooth, BLE, and M2M applications, it guarantees performance and reliability in demanding industrial environments. Buy now for quick delivery and proven quality.
Get Abracon ABM10-167-12.000MHz today—engineered for ultra-low power IoT wearable devices with compact size and long-term reliability.
Frequently Asked Questions
Where can I buy ABRACON ABM1016712000MHZT3?
You can click on the BUY or RFQ button to purchase ABM1016712000MHZT3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM1016712000MHZT3?
You can download the ABM1016712000MHZT3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM1016712000MHZT3?
ABRACON
