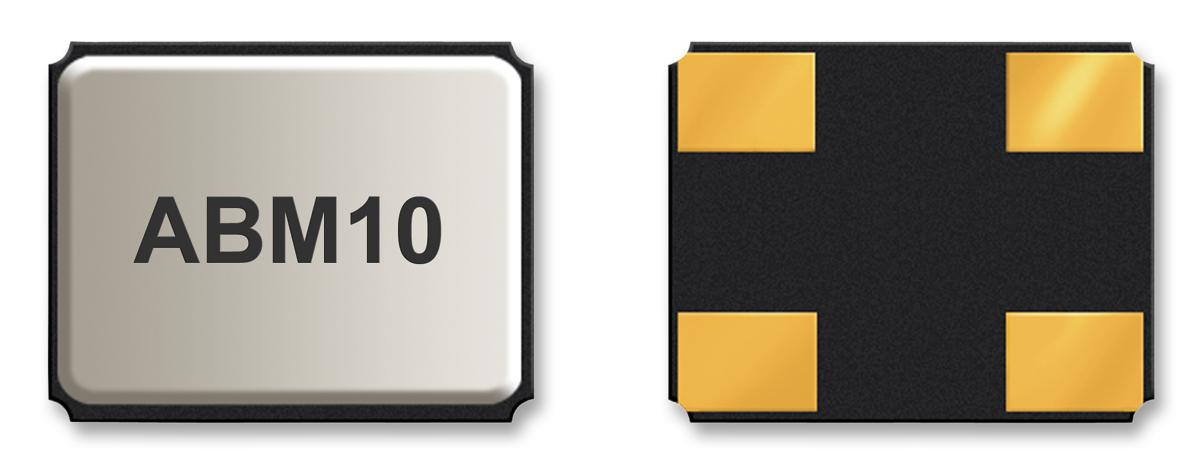

ABRACON ABM1019200MHZD30T3 Ceramic SMD Quartz Crystal
The ceramic SMD ultra miniature quartz crystal is a high-precision oscillator designed for compact applications such as Bluetooth, wireless devices, microprocessors, and portable electronics. Sealed hermetically in a reliable ceramic package, it offers exceptional stability over temperature and accurate frequency tolerances. Its small footprint is ideal for space-constrained electronic circuits requiring stable timing signals. Suitable for RoHS-compliant reflow processes, it ensures durability and consistent performance in high-density electronic environments, making it a preferred choice in advanced communication and test equipment applications.
ABRACON ABM1019200MHZD30T3 Ceramic SMD Quartz Crystal Specifications:
- Package Size: 2.5x2.0x0.5mm
- Frequency Range: 12.000 — 55.000 MHz (see options)
- Frequency Tolerance @+25°C: ±10 ppm, ±25 ppm, ±30 ppm (see options)
- Frequency Stability over Temperature: ±30 ppm (ref. to +25°C)
- Equivalent Series Resistance (ESR): 250Ω at 12–15.999 MHz, 150Ω at 16–19.999 MHz, 100Ω at 20–29.999 MHz, 70Ω at 30–55 MHz
- Drive Level: 10 μW
- Shunt Capacitance: See options
- Load Capacitance: 10 pF (standard)
- Insulation Resistance: 100V dc + 15V
- Material: Sealed ceramic package, hermetically sealed for reliability
- RoHS Compliant: Yes
- Reflow Profile Compatibility: Suitable for RoHS reflow profiles
- Operational Temperature Range: 0°C to +50°C
- Land Pattern: 0.075 inches (1.9mm), recommended land pattern provided in datasheet
Buy the Buy Abracon Ceramic SMD Quartz Crystal Part Number ABM1019200MHZD30T3 Online
Purchase the Abracon Ceramic SMD Quartz Crystal ABM1019200MHZD30T3 online today. This tiny, hermetically sealed crystal offers high stability over temperature and precise frequency tolerances, making it ideal for Bluetooth, wireless, microprocessors, and portable electronics. Its RoHS-compliant design ensures safe reflow soldering, while the compact 2.5x2.0x0.5mm size saves space on densely packed circuit boards. Guaranteed reliability and accuracy make it the perfect choice for communications, test equipment, and high-density applications requiring dependable oscillator performance.
Get Abracon ceramic SMD quartz crystal ABM1019200MHZD30T3 today—designed for precision, stability, and reliable performance in compact electronic circuits.
Frequently Asked Questions
Where can I buy ABRACON ABM1019200MHZD30T3?
You can click on the BUY or RFQ button to purchase ABM1019200MHZD30T3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM1019200MHZD30T3?
You can download the ABM1019200MHZD30T3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM1019200MHZD30T3?
ABRACON
