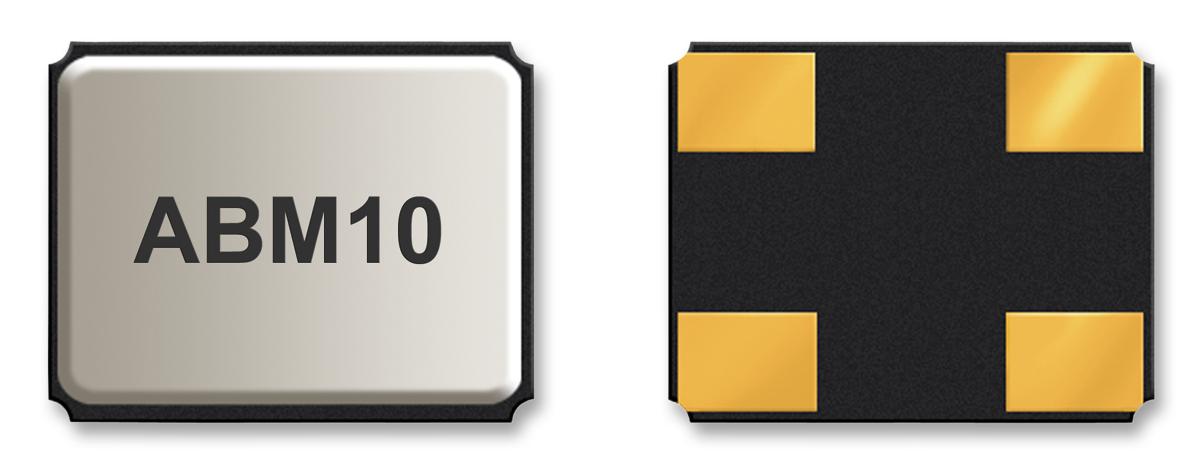

ABRACON ABM1020000MHZE20T Quartz Crystal
This ultra-miniature ceramic SMD crystal measures 2.5x2.0x0.5mm and is ideal for Bluetooth, wireless, high-density applications, and portable devices. It provides high stability with a fundamental frequency of 12.000 MHz and features a sealed ceramic package for reliability and precision. Suitable for various commercial and industrial electronic devices, it offers stable frequency over -10°C to +60°C, low ESR, and RoHS compliance. Its compact size and hermetic sealing make it perfect for tight spaces in modern electronics, ensuring durability and consistent performance in portable and high-performance wireless applications.
ABRACON ABM1020000MHZE20T Quartz Crystal Specifications:
- Frequency Range: 12.000 MHz, fundamental mode
- Size: 2.5x2.0x0.5mm
- Frequency Tolerance: See options, typically ±10 ppm
- Frequency Stability: over -10°C to +60°C
- Equivalent Series Resistance: 250Ω at 12.000 MHz
- Load Capacitance: 10 pF standard
- Drive Level: 10 μW
- Insulation Resistance: 100V dc + 15V
- Sealed ceramic package, RoHS compliant
- Tight stability and hermetic sealing for reliability
- Application: Bluetooth, wireless, portable devices, PCMCIA, test equipment
Buy the Abracon Series Ultra Miniature Quartz Crystal: ABM1020000MHZE20T
Order the Abracon ABM1020000MHZE20T quartz crystal online today for reliable, high-stability performance in Bluetooth, wireless, and portable device applications. Its sealed ceramic package ensures durability and precise frequency stability over a temperature range of -10°C to +60°C. This 2.5x2.0x0.5mm crystal with 12.000 MHz fundamental frequency offers low ESR of 250Ω and standard load capacitance of 10 pF. Perfect for high-density electronics, it provides consistent operation in various commercial and industrial environments, ensuring optimal device performance and long-term reliability.
Get Abracon ABM1020000MHZE20T today—built for precision and long-lasting durability in portable electronics.
Frequently Asked Questions
Where can I buy ABRACON ABM1020000MHZE20T?
You can click on the BUY or RFQ button to purchase ABM1020000MHZE20T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM1020000MHZE20T?
You can download the ABM1020000MHZE20T datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM1020000MHZE20T?
ABRACON
