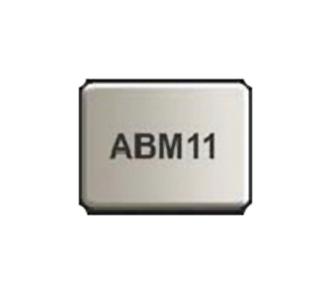

ABRACON ABM1138400MHZD2XT3 Quartz Crystal
The ABM11 series quartz crystal features a compact 2.0x 1.6x 0.59mm ultraminiature ceramic package, hermetically sealed for high precision and reliability. It operates in the frequency range of 16.000~50.000 MHz, with options for temperature stability, load capacitance, and drive level. Suitable for cellular telephones, communication and test equipment, high-density applications, PCMCIA, and wireless devices, this RoHS-compliant crystal ensures optimal performance in space-constrained environments, offering stable frequency and long-term aging characteristics for reliable electronics design.
ABRACON ABM1138400MHZD2XT3 Quartz Crystal Specifications:
- Dimensions: 2.0x 1.6x 0.59mm (inch: 0.079x 0.063x 0.023)
- Frequency Range: 16.000~50.000 MHz
- Operation Mode: Fundamental
- Frequency Stability: ±15 ppm over temperature range
- Load Capacitance: 6pF (min), adjustable
- Equivalent Series Resistance (ESR): varies with frequency
- Temperature Range: -10°C to +85°C (other options available)
- Sealed ceramic package with metal lid for high reliability
- RoHS and RoHS II compliant for environmental safety
- Reflow soldering compatible with RoHS reflow profiles
- Drive Level: 1 μW recommended
- Aging: ±2 ppm/year for long-term stability
- Insulation Resistance: ≥10 MΩ at 100VDC
Buy the Abracon Series ABM11 Quartz Crystal: ABM1138400MHZD2XT3
Discover the high-precision Abracon ABM11 series quartz crystal, featuring a compact 2.0x 1.6x 0.59mm package. This hermetically sealed, RoHS compliant device offers outstanding frequency stability, low ESR, and long-term aging performance, making it ideal for miniature, high-density applications such as cellular, wireless, and test equipment. Its robust ceramic design ensures reliable operation under various temperature conditions. Purchase online now to enhance your electronic designs with this space-saving, durable quartz crystal that guarantees precision and longevity for critical communication and control systems.
Get Abracon ABM1138400MHZD2XT3 today—designed for space-efficient, high-reliability applications in modern electronics.
Frequently Asked Questions
Where can I buy ABRACON ABM1138400MHZD2XT3?
You can click on the BUY or RFQ button to purchase ABM1138400MHZD2XT3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM1138400MHZD2XT3?
You can download the ABM1138400MHZD2XT3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM1138400MHZD2XT3?
ABRACON
