ABRACON ABM13W320000MHZ5NH7UT5 Ultra-Miniature Quartz Crystal

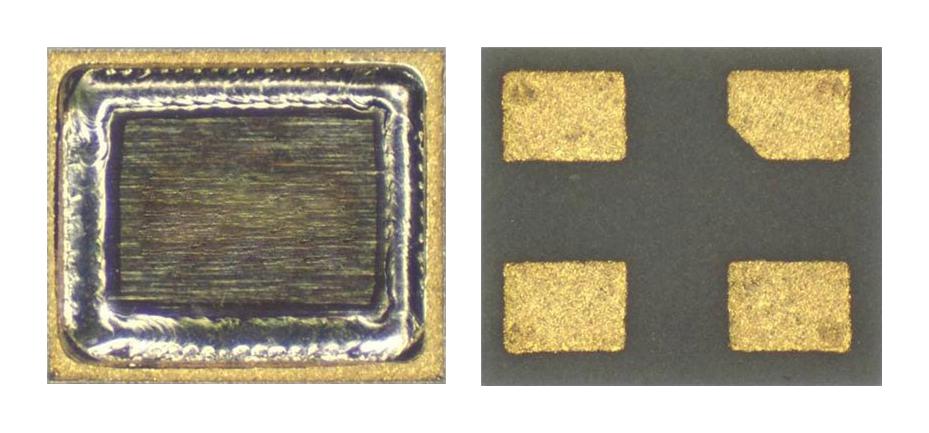

The ABRACON ABM13W series is an ultra-miniature quartz crystal, measuring just 1.20 x 1.00 x 0.33mm, specifically engineered for demanding applications like IoT devices, wearables, and wireless modules. Its compact size, combined with optimized performance characteristics such as low plating load and extended temperature range operation, makes it ideal for space-constrained designs. The crystal enhances start-up time and power savings in Low Energy SoC’s, contributing to improved overall system efficiency. Available with various frequency tolerances and stability options, the ABM13W series provides a versatile solution for a wide range of electronic applications.
ABRACON ABM13W320000MHZ5NH7UT5 Ultra-Miniature Quartz Crystal Specifications:
- Frequency Range: 32.0000 - 80.0000 MHz
- Standard Available Frequencies: 32.0000, 37.4000, 38.4000, 40.0000, 45.0000, 48.0000, 52.0000, 60.0000, 76.8000, 80.0000 MHz
- Operation Mode: Fundamental
- Operating Temperature Range: -40 to +85 °C
- Storage Temperature: -40 to +125 °C
- Frequency Tolerance @ +25°C: -10 to +10 ppm
- Frequency Stability over Operating Temperature: -15 to +15 ppm
- Equivalent Series Resistance (ESR): 32.0000-32.9999MHz: < 45 Ω, 33.0000-36.9999MHz: < 35 Ω, 37.0000-80.0000MHz: < 25 Ω
- Shunt Capacitance (C0): < 1.0 pF
- Load Capacitance (CL): 5.0 pF
- Drive Level: 10 - 100 μW
- Aging (1 year): -2 to +2 ppm @25°C± 3°C
- Insulation Resistance: 500 MΩ @100 Vdc ± 15V
- Package: T5: Tape and reel (5,000pcs/reel)
- Dimensions: 1.20 x 1.00 x 0.33mm
