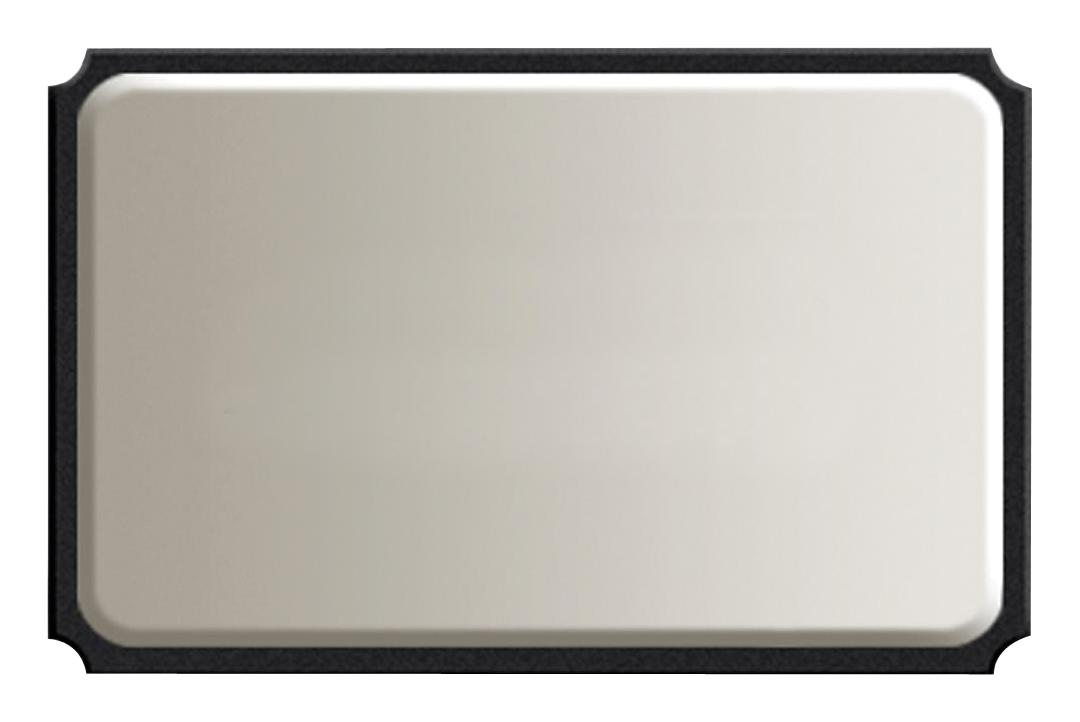

ABRACON ABM3B19200MHZ101UT Ceramic SMD Crystal
ABRACON's ABM3B series crystal oscillators are precision ceramic SMD crystals designed for a wide range of applications including cellular telephones, communication equipment, and high-density wireless devices. These crystals operate in both fundamental and 3rd overtone modes, offering flexibility in circuit design. They are characterized by their tight stability, suitability for reflow processes, and robust ceramic package with a metal lid, ensuring high reliability. Available in various frequency ranges and options for frequency tolerance and operating temperature, the ABM3B series provides a versatile solution for timing and frequency control needs.
ABRACON ABM3B19200MHZ101UT Ceramic SMD Crystal Specifications:
- Frequency Range: 8.0MHz - 50.0MHz (Fundamental), 50.1MHz - 125MHz (3rd overtone)
- Operation Mode: Fundamental or 3rd overtone
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -40°C to +85°C
- Frequency Tolerance @ 25°C: ±50 ppm max.
- Frequency Stability: ±50 ppm max. over operating temperature
- Equivalent Series Resistance: See table 1
- Shunt Capacitance (C0): 7 pF max.
- Load Capacitance (CL): 18 pF
- Drive Level: 100 µW max, 10 µW typical
- Aging (First Year): ±3°C ± 5ppm max. @ 25°C
- Insulation Resistance: 500 MΩ min at 100Vdc ± 15 V
- ESR (8.000 - 9.999 MHz): 200 Ω max
- ESR (10.000 - 11.999 MHz): 100 Ω max
- ESR (12.000 - 15.999 MHz): 70 Ω max
- ESR (16.000 - 50.000 MHz): 50 Ω max
- ESR (50.001 - 80.000 MHz): 60 Ω max
- ESR (80.001 - 125.000 MHz): 80 Ω max
- Dimensions: 5.0 x 3.2 x 1.1mm
Buy the ABM3B-19.200MHZ-10-1-U-T ABRACON Ceramic SMD Crystal | myMectronic
Securely purchase the ABRACON ABM3B-19.200MHZ-10-1-U-T crystal oscillator online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy ABRACON ABM3B19200MHZ101UT?
You can click on the BUY or RFQ button to purchase ABM3B19200MHZ101UT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM3B19200MHZ101UT?
You can download the ABM3B19200MHZ101UT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM3B19200MHZ101UT?
ABRACON
