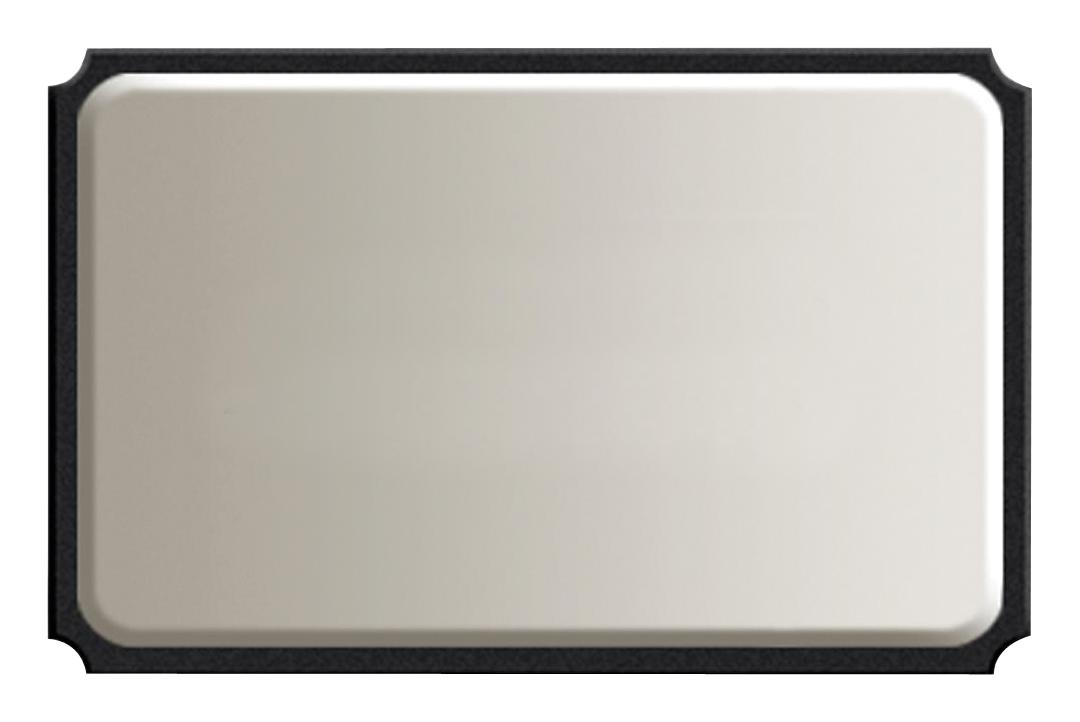

ABRACON ABM3C110592MHZD4YT Ceramic SMD Crystal
The ABRACON ABM3C series crystal resonators are designed for a variety of applications including modems, communication equipment, and wireless devices. These crystals offer low height, tight tolerance, and stability, making them suitable for high-density applications. Available in both glass-sealed (RoHS exemption for Pb in glass) and seam-sealed (Pb-free) options, the ABM3C series provides flexibility for different design requirements. The crystal operates on a fundamental mode and is available with various frequency ranges, operating temperatures, and frequency stability options to meet specific application needs.
ABRACON ABM3C110592MHZD4YT Ceramic SMD Crystal Specifications:
- Frequency Range: 10.000 - 50.000 MHz
- Operation Mode: Fundamental
- Operating Temperature: -10 to +70 ºC
- Storage Temperature: -40 to +90 ºC
- Frequency Tolerance: -50 to +50 ppm
- Frequency Stability: -50 to +50 ppm
- Equivalent Series Resistance: 50 Ω (10.000 – 15.999MHz), 50 Ω (16.000 – 50.000MHz)
- Shunt Capacitance: 7 pF
- Load Capacitance: 18 pF
- Drive Level: 10 - 100 µW
- Aging: -5 to +5 ppm (First year)
- Insulation Resistance: 500 MΩ
- Dimensions: 5.0 x 3.2 x 1.3mm
Buy the ABM3C-11.0592MHZ-D4Y-T ABRACON Ceramic SMD Crystal | myMectronic
Purchase the ABRACON ABM3C-11.0592MHZ-D4Y-T Ceramic SMD Crystal securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy ABRACON ABM3C110592MHZD4YT?
You can click on the BUY or RFQ button to purchase ABM3C110592MHZD4YT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM3C110592MHZD4YT?
You can download the ABM3C110592MHZD4YT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM3C110592MHZD4YT?
ABRACON
