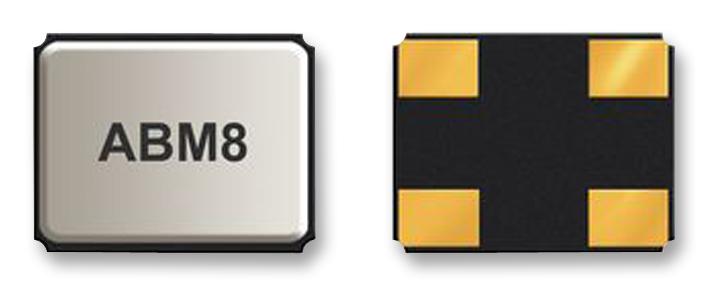

ABRACON ABM812000MHZB2T Miniature Ceramic SMD Crystal
This ultra miniature ceramic SMD crystal measures 3.2x2.5x0.8mm, featuring hermetic sealing and moisture sensitivity resistance. Suitable for high-density and RoHS reflow applications, it operates across a frequency range of 10 to 125 MHz with fundamental and third overtone modes. Its compact size makes it ideal for slim electronic devices, modems, and communication equipment. The sealed package ensures high reliability, stability, and tight tolerance, making it suitable for wireless and test applications in demanding environments.
ABRACON ABM812000MHZB2T Miniature Ceramic SMD Crystal Specifications:
- Size: 3.2x2.5x0.8mm
- Frequency Range: 10 to 125 MHz
- Operation Modes: Fundamental, 3rd Overtone
- Temperature Range: -10°C to +60°C (standard), options up to +125°C
- Frequency Tolerance: ±50 ppm at +25°C
- Frequency Stability: ±50 ppm over temperature
- Equivalent Series Resistance: 30-80 Ohms depending on frequency
- Shunt Capacitance: 7.0 pF
- Load Capacitance: 18.0 pF
- Aging: 3 ppm per year
- Insulation Resistance: 500 MΩ at 100VDC
- Reflow Profile: 10 seconds at +260°C ±5°C
Buy the Buy Abracon Ultra Miniature Ceramic SMD Crystal Part Number ABM812000MHZB2T Online
Purchase the Abracon ultra miniature ceramic SMD crystal ABM812000MHZB2T online today. Its hermetically sealed, RoHS compliant design ensures high reliability and stability for compact electronics, high-density applications, and wireless communications. Ideal for modem, test, and communication equipment, the crystal’s size of 3.2x2.5x0.8mm enhances space-saving in modern devices. Available with tape and reel packaging for efficient assembly, this crystal offers excellent frequency stability and tolerance, making it a dependable choice for demanding technical environments.
Buy Abracon ABM812000MHZB2T now and experience high reliability, compact size, and optimal performance for your electronic and communication systems.
Frequently Asked Questions
Where can I buy ABRACON ABM812000MHZB2T?
You can click on the BUY or RFQ button to purchase ABM812000MHZB2T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM812000MHZB2T?
You can download the ABM812000MHZB2T datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM812000MHZB2T?
ABRACON
